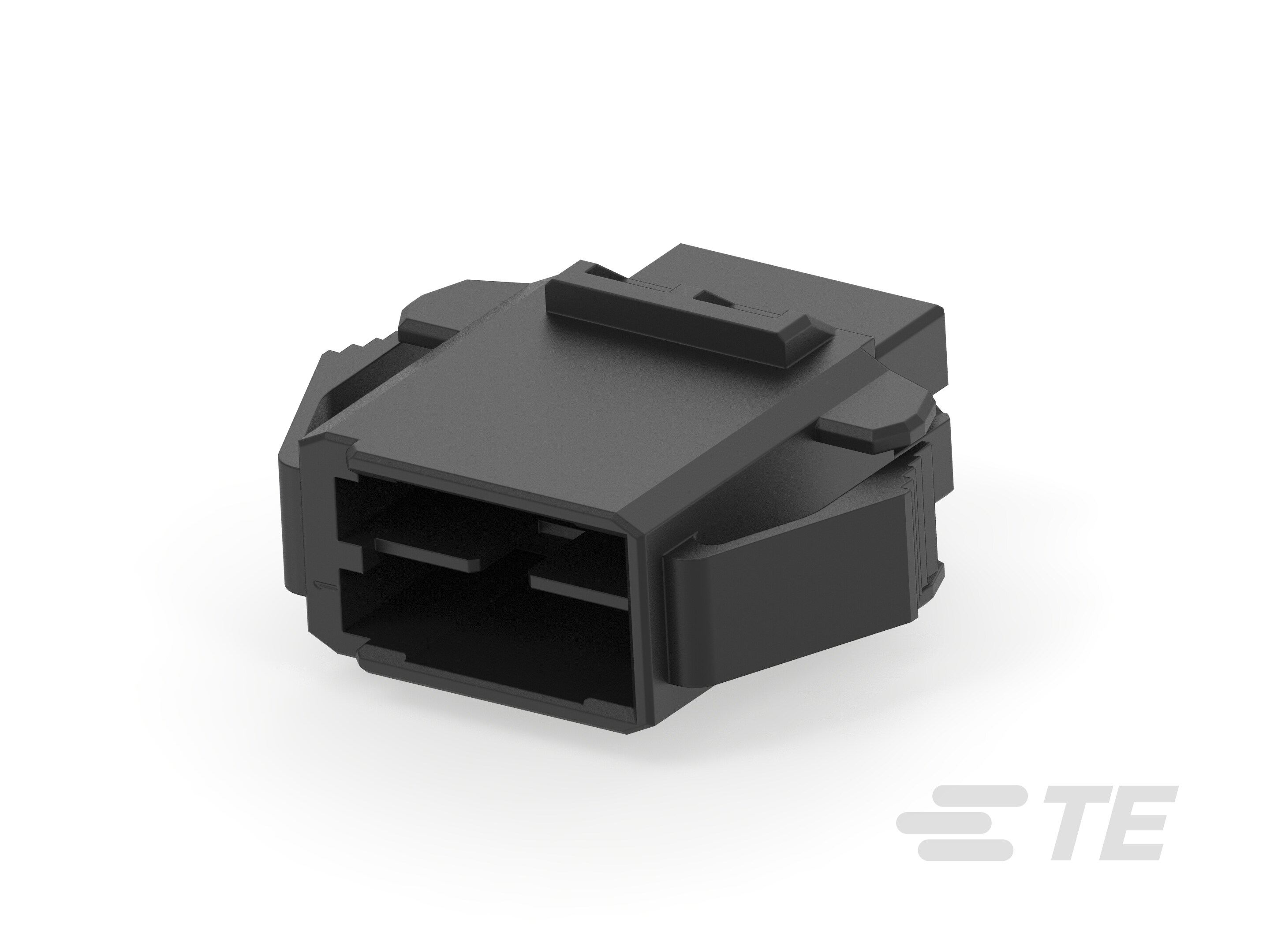

Receptacle and Tab Housing: 3.5 mm pitch, 250V

Please review product documents or contact us for the latest agency approval information.

• Connector Product Type  Housing

• Connector & Housing Type  Housing for Male Terminals | Receptacle

• Connector & Housing Type  Housing for Male Terminals | Receptacle

• Connector System  Wire-to-Board | Wire-to-Wire

• Sealable  No

• Connector & Contact Terminates To  Wire & Cable

• Insertion Force (Newton) 7.84

• Number of Positions  3 | 6 | 9 | 12 | 36

• Number of Rows  1 | 3

• Number of Rows  1 | 3

• Operating Voltage (VDC) 250

• Operating Voltage (VAC) 250

• Primary Product Color  Black

• Primary Product Color  Black

• Contact Layout  Matrix

• Contact Base Material  Copper Alloy

• Contact Type  Receptacle

• Contact Current Rating (Max) (A) 5

• Termination Method to Wire & Cable  Crimp

• Termination Method to Wire & Cable  Crimp

• Mating Retention  With

• Mating Retention  With

• Connector Mounting Type  Free-Hanging (In-Line) | Panel Mount

• Centerline (Pitch) (mm) 3.3 | 3.5

• Centerline (Pitch) (in) .129 | .138

• Housing Material  Polybutylene Terephthalate (PBT) | Polyester GF

• Connector Length  16.35 mm [ .64 in ]

• Connector Width  11.3 mm [ .44 in ]

• Connector Height  3.3 mm [ .12 in ]

• Row-to-Row Spacing (mm) 3.3 | 3.5

• Row-to-Row Spacing (in) .129 | .138

• Row-to-Row Spacing (mm) 3.3 | 3.5

• Row-to-Row Spacing (in) .129 | .138

• Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application  Power | Signal

• Compatible With Approved Standards Products  UL E28476

• Compatible With Agency/Standards Products  CSA

• UL Flammability Rating  UL 94V-0
