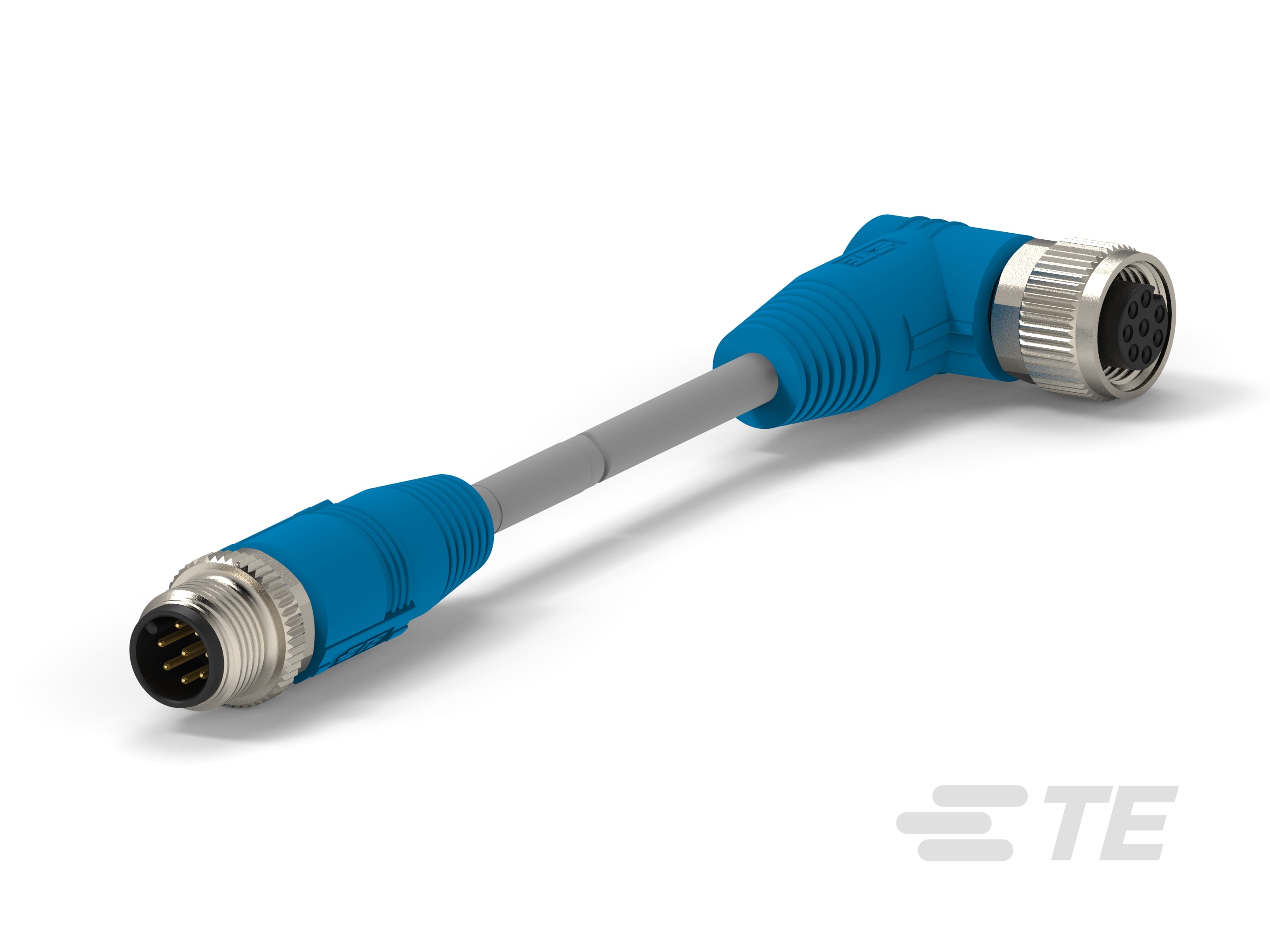

M12 Cable Assembly, 8 Position, 5 m, Sensor/Actuator, A Code, M12 Plug End A, M12 Socket End B, Double Ended, Nylon GF
T4152223008-005
M12 Cable Assembly, 8 Position, 5 m, Sensor/Actuator, A Code, M12 Plug End A, M12 Socket End B, Double Ended, Nylon GF
- TE Internal #: T4152223008-005
- TE Internal Description: RPC-M12-8MR-5.0-M12-8FS-PUR
- All M12 A-Code MR-FS Double Ended Cable (140)
-
Cable Assembly Type : M12
-
Number of Positions : 8
-
Cable Assembly Length (m): 5
-
M8/M12 Application Type : Sensor/Actuator
-
Connector & Keying Code : A
Documents
Product Drawings
- M12X1 MALE TO FEMALE, 8P A-CODE, UNSHIELDED ENG_CD_T4152XXX00800X_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_T4152223008-005_A.pdf 3D
- Customer View Model ENG_CVM_CVM_T4152223008-005_A.2d_dxf.zip English
- ENG_CVM_CVM_T4152223008-005_A.3d_igs.zip English
- ENG_CVM_CVM_T4152223008-005_A.3d_stp.zip English
Datasheets & Catalog Pages
- M8 / M12 Connector System Catalog ENG_CS_1-1773701-8_M8M12_CONNECTOR_SYSTEM_2402.pdf English
- JPN_CS_1-1773701-8_M8M12_CONNECTOR_SYSTEM_2402.pdf Japanese
Product Specifications
- Application Specification ENG_SS_114-137144_A11.pdf English
- Product Specification ENG_SS_108-106140_A8.pdf English
- Qualification Test Report ENG_SS_501-106140-1_A1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E193908_20170714_C1_2.pdf English
