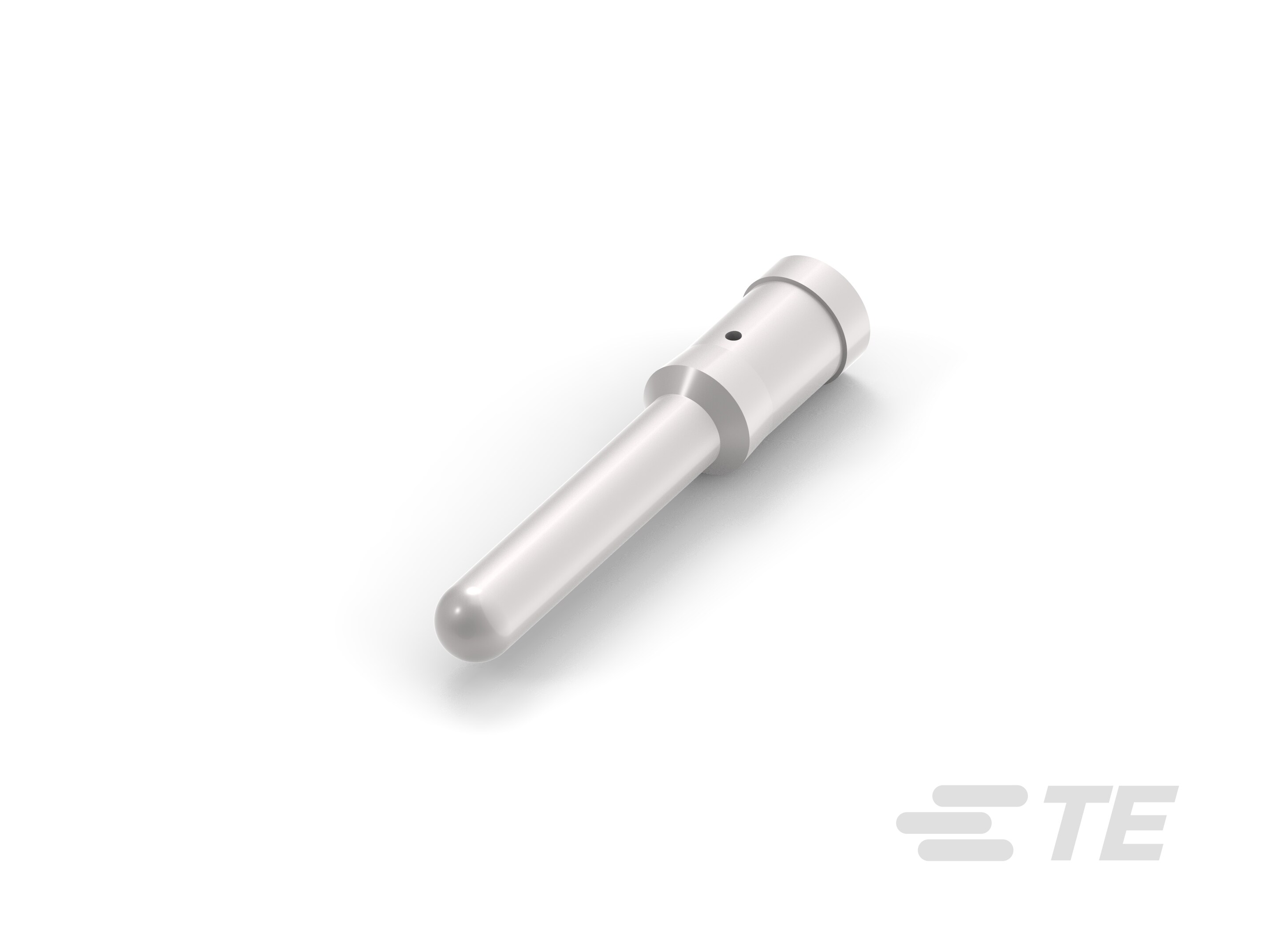

Pin Contact, Silver (Ag), 8 – 8 AWG, 8.34 mm² Wire, Crimp, Brass, Power & Signal, -40 – 125 °C [-40 – 257 °F]
T2042001100-000
Pin Contact, Silver (Ag), 8 – 8 AWG, 8.34 mm² Wire, Crimp, Brass, Power & Signal, -40 – 125 °C [-40 – 257 °F]
- TE Internal #: T2042001100-000
- TE Internal Description: CMML-10
-
Contact Type : Pin
-
Contact Mating Area Plating Material : Silver (Ag)
-
Wire Contact Termination Area Plating Material : Silver
-
Wire Size (AWG): 8 – 8
-
Wire Size (mm²): 8.34
