Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

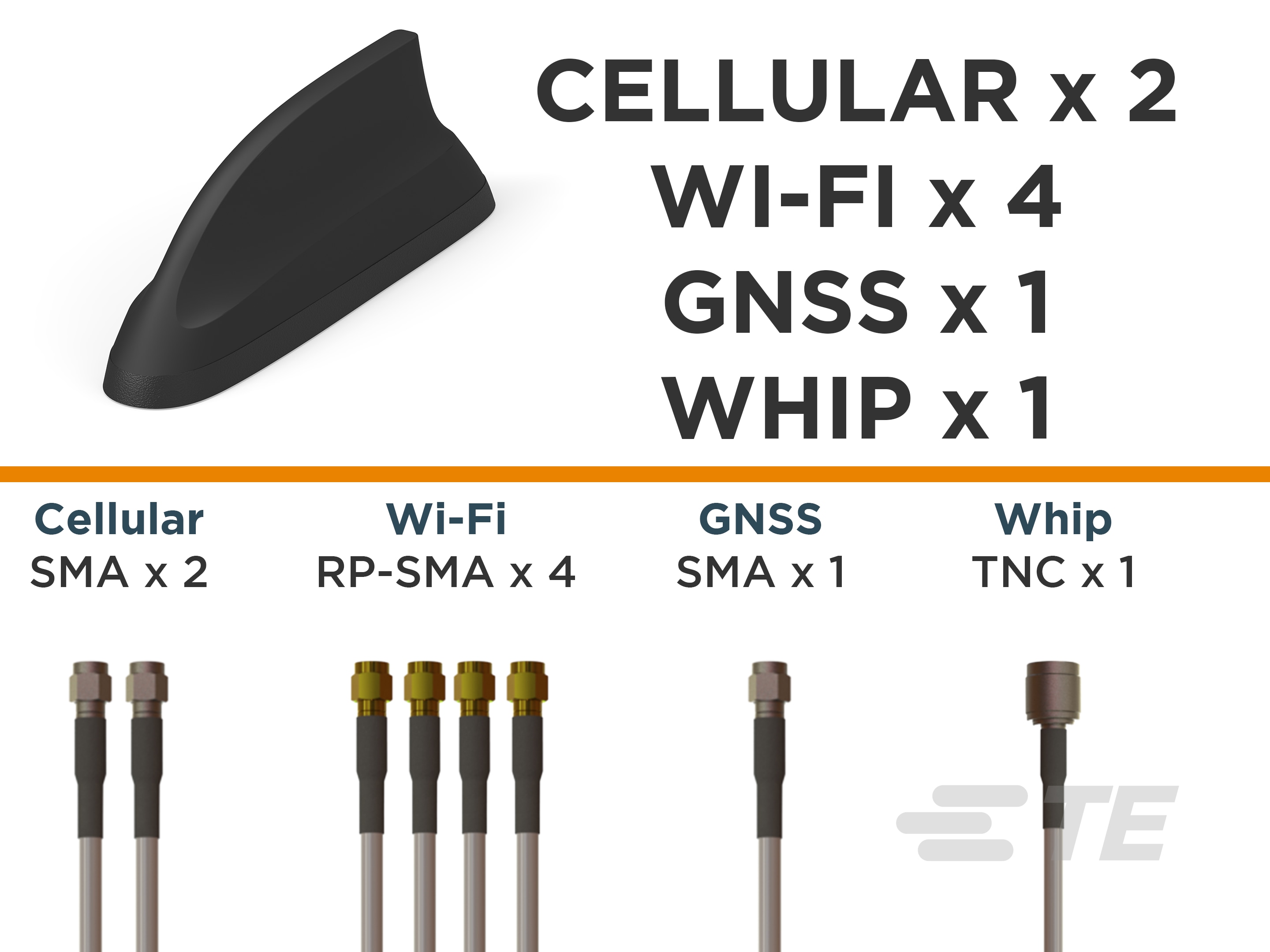

• Antenna Termination : RP-SMA, SMA, TNC

• Antenna Product Type : Antenna

• Antenna Style : Shark Fin

• Antenna Type : Shark Fin

• Band Type : Multi Band

• Mounting Location : External

• Port Configuration : Multiple Ports

• VSWR (Max) : <3:1

• Antenna Operation : Passive

• Impedance (Ω): 50

• Gain (Max) (dB): 2, 3, 3.3, 3.7, 4.6, 4.8

• Frequency Band (MHz): 4900 – 6000, 617 – 960, 4000 – 7200, 1427 – 1511, 2400 – 2500, 1690 – 4000

• Frequency Category : 617 – 7125

• Peak Gain (dBi): 3 < 6

• Product Weight : 2100 g [ 74.08 oz ]

• Polarization : Linear

• Mounting Type : Stud Mount

• Cable Length : 5.3 m [ 17.4 ft ]

• Product Height : 84 mm [ 3.3 in ]

• Product Length : 245 mm [ 9.64 in ]

• Product Width : 63 mm [ 2.48 in ]

• Wireless Standard : Cellular

• Antenna Environment : Outdoor

• Directionality : Omnidirectional

• IP Rating : IP67, IP69K

• Primary Application : Vehicular

• Wireless Application : Vehicular

• Applicable Region : Global

• Packaging Method : Carton
