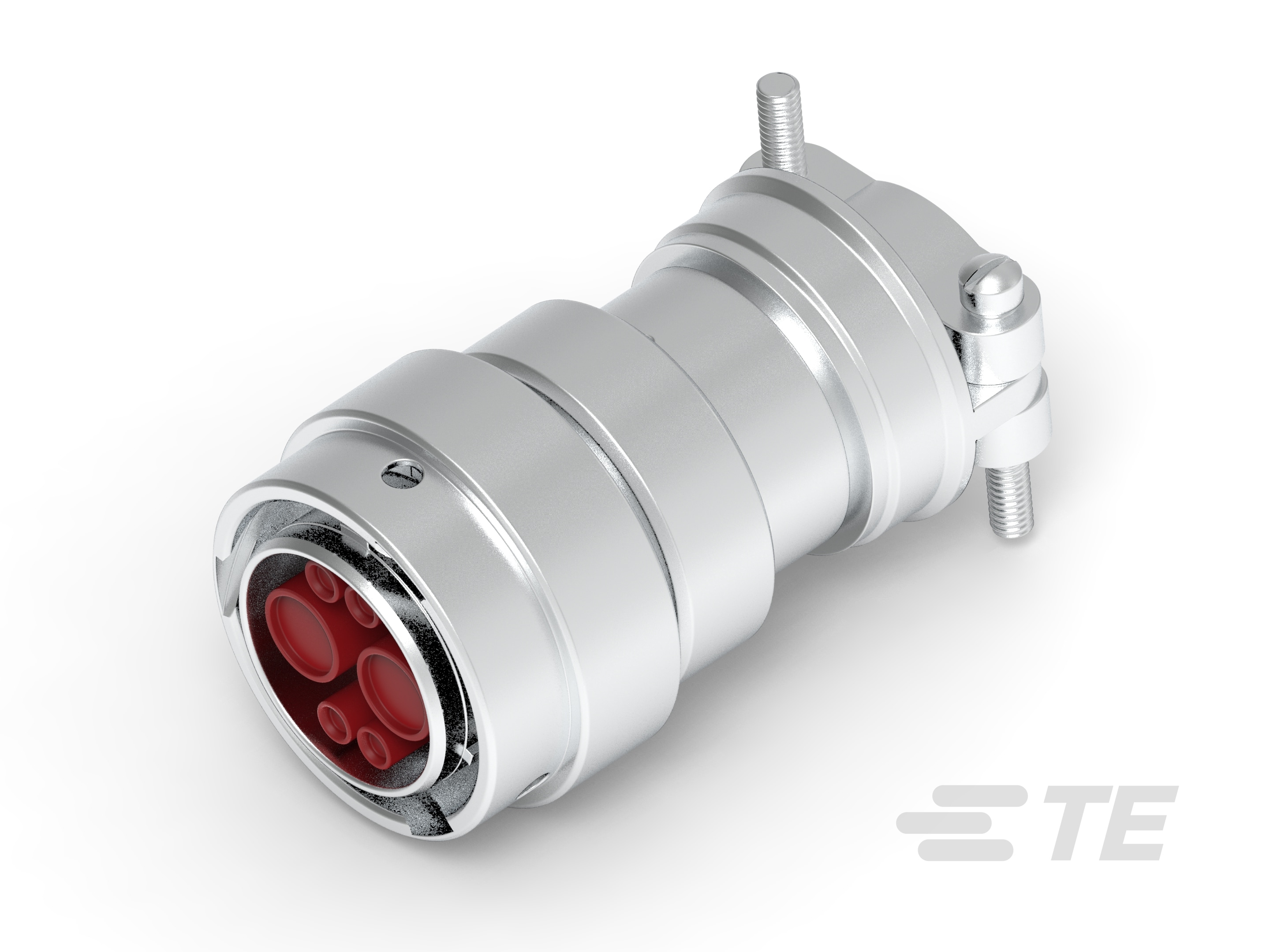

Name: PLG,6P,AL,N,CBLCLMPBT,DR,1256BLKD,4,S,MC
Brand: DEUTSCH

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector Shape : Circular
Mixed & Hybrid Connector : No
Connector & Housing Type : Housing for Female Terminals
Sealable : Yes
Primary Locking Feature : Integrated in Housing
Connector System : Wire-to-Wire
Connector & Contact Terminates To : Wire & Cable

Configuration Features

Blank Cavity Position : 0
Number of Positions : 6

Electrical Characteristics

Operating Voltage (VDC): 250
Operating Voltage (VAC): 250
Nominal Voltage Architecture (V): 12 | 24

Body Features

Cable Exit Angle (°): 180

Contact Features

Contact Type : Socket
Contact Size : Size 16 | Size 4
Mating Pin Diameter (mm): 1.59 | 5.72
Mating Pin Diameter (in): .063 | .225
Contact Current Rating (Max) (A): 13 | 100

Mechanical Attachment

Mating Alignment : With
Mating Alignment Type : Guide Post
Terminal Position Assurance : No
Strain Relief : Add By Accessory
Connector Mounting Type : Cable Mount (Free-Hanging)

Housing Features

Housing Material : Aluminum

Dimensions

Connector Height : 42.97 mm [ 1.692 in ]
Product Length : 77.7 mm [ 3.059 in ]
Product Width : 42.97 mm [ 1.692 in ]
Compatible Insulation Diameter Range (mm): 2.54 – 3.4 | 7.11 – 7.42
Compatible Insulation Diameter Range (in): .1 – .134 | .28 – .292

Usage Conditions

Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operating Temperature (Max) : 125 °C [ 257 °F ]

Operation/Application

Circuit Application : Power

Industry Standards

IP Rating : IP67

Packaging Features

Packaging Method : Box
Packaging Quantity : 100

Other

Serviceable : Yes
Connector Position Assurance Capable : No

HD3618-6SNC030-059

12 V / 24 V, 6 Position, Automotive Housing for Female Terminals, Wire-to-Wire, Sealable, Wire & Cable, Power, Cable Mount (Free-Hanging), Hybrid

HD3618-6SNC030-059

12 V / 24 V, 6 Position, Automotive Housing for Female Terminals, Wire-to-Wire, Sealable, Wire & Cable, Power, Cable Mount (Free-Hanging), Hybrid

Nominal Voltage Architecture (V): 12 | 24

Connector & Housing Type : Housing for Female Terminals

Number of Positions : 6

Sealable : Yes

Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
