DT04-12PA-CE01

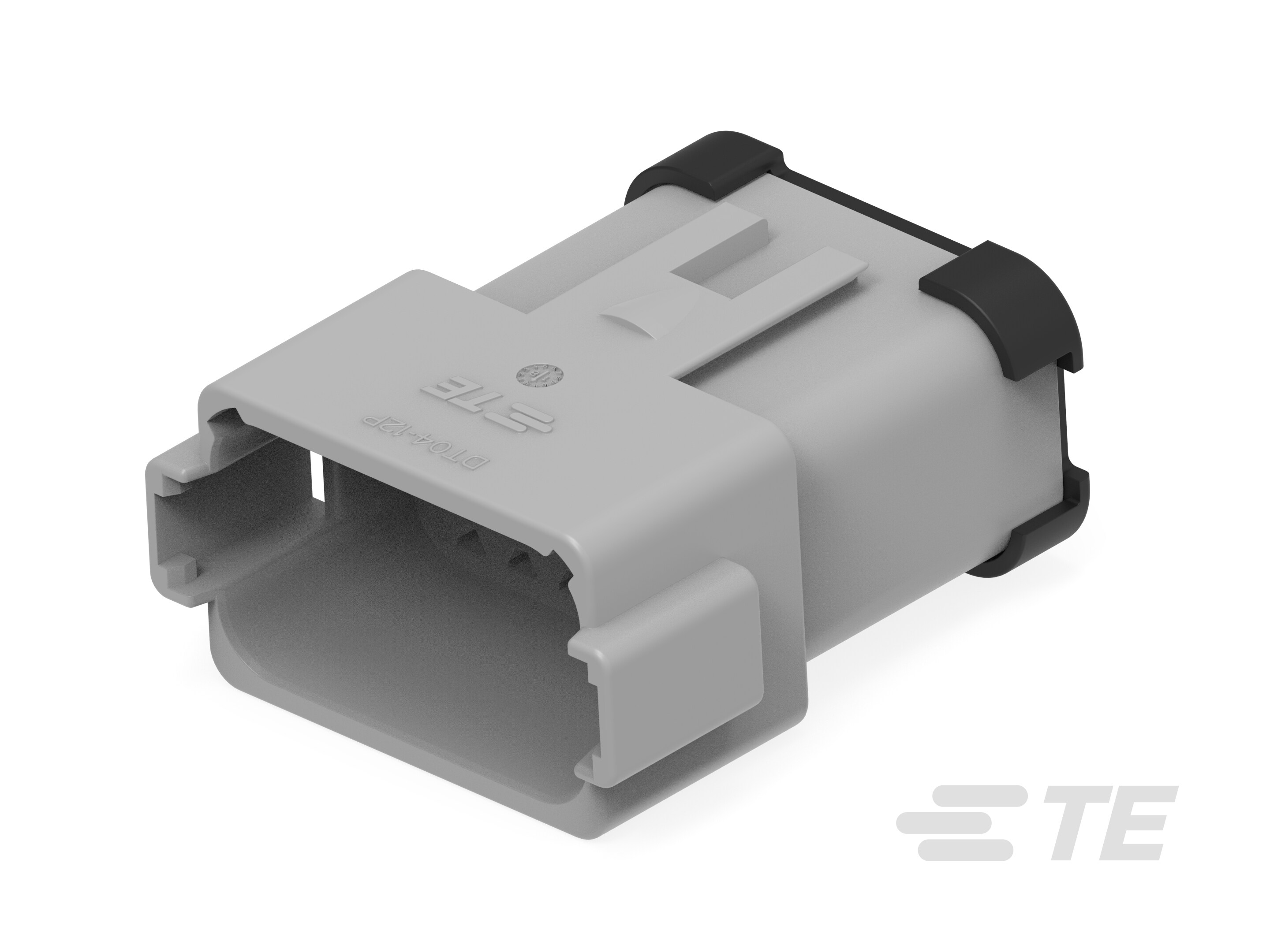

12 V / 24 V / 48 V, 12 Position, Automotive Housing for Male Terminals, Wire-to-Wire, 4.44 mm [.175 in] Centerline, Sealable, Gray, DEUTSCH DT
DT04-12PA-CE01
12 V / 24 V / 48 V, 12 Position, Automotive Housing for Male Terminals, Wire-to-Wire, 4.44 mm [.175 in] Centerline, Sealable, Gray, DEUTSCH DT
-
- DEUTSCH
- DEUTSCH DT
- TE Internal #: DT04-12PA-CE01
- TE Internal Description: REC, 12P, GRY, E, CAP, A
-
Nominal Voltage Architecture (V): 12 | 24 | 48
-
Connector & Housing Type : Housing for Male Terminals
-
Number of Positions : 12
-
Sealable : Yes
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Documents
Product Drawings
- 12 WAY RECEPTACLE, STANDARD SEAL EXTRA THIN SEAL, SHORT AND LONG CAP, DT SERIES ENG_CD_DT04-12PX-XXXX_B1.pdf English
CAD Files
- 3D PDF 3D_CVM_CVM_DT04-12PA-CE01_B1.pdf 3D
- Customer View Model ENG_CVM_CVM_DT04-12PA-CE01_B1.3d_stp.zip English
- ENG_CVM_CVM_DT04-12PA-CE01_B1.2d_dxf.zip English
- ENG_CVM_CVM_DT04-12PA-CE01_B1.3d_igs.zip English
Datasheets & Catalog Pages
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151009_C3.pdf English
- Engineering Report ENG_SS_502-151009_C.pdf English
- Product Specification ENG_SS_108-151009_E.pdf English
- Qualification Test Report ENG_SS_501-151032_A.pdf English
- 48 VOLT EVALUATION STRATEGY ENG_SS_503-151065_B.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_20090527_C1_G2.pdf English
Product Change Notification
- View Product Change Notification Login required to access product change notifications
Features
Select Features & Characteristics to Find Similar Products
You can find similar products by using the checkboxes to select the attributes you would like to keep the same. When you click on 'View Similar Products' you can further narrow your search using filters to find products with differing attributes.
Please review product documents or contact us for the latest agency approval information.
Please Note: Use the Product Drawing for all design activity.
The only matching product is this current one. Please revise your search to continue.
0 similar products are available. Please choose different features or characteristics.
Something went wrong. Please try again
Product Features & Characteristics
Select All
Product Type Features
-
Connector Shape : Rectangular
-
Mixed & Hybrid Connector : No
-
Connector & Housing Type : Housing for Male Terminals
-
Sealable : Yes
-
Primary Locking Feature : Integrated in Housing
-
Connector System : Wire-to-Wire
-
Connector & Contact Terminates To : Wire & Cable
Configuration Features
-
Connector Seal Code : E Seal
-
Connector Modification : End Cap
-
Blank Cavity Position : 0
-
Number of Positions : 12
-
Number of Rows : 2
Electrical Characteristics
-
Operating Voltage (VDC): 250
-
Operating Voltage (VAC): 250
-
Nominal Voltage Architecture (V): 12 | 24 | 48
Body Features
-
Cable Exit Angle (°): 180
-
Primary Product Color : Gray
-
Connector & Keying Code : A
Contact Features
-
Contact Type : Pin
-
Contact Size : Size 16
-
Mating Pin Diameter : 1.59 mm [ .063 in ]
-
Contact Current Rating (Max) (A): 13
Mechanical Attachment
-
Mating Alignment : With
-
Mating Alignment Type : Keyed
-
Terminal Position Assurance : Yes
-
Strain Relief : Add By Accessory
-
Connector Mounting Type : Cable Mount (Free-Hanging)
Housing Features
-
Housing Material : PA GF
-
Centerline (Pitch) : 4.44 mm [ .175 in ]
Dimensions
-
Connector Height : 22.25 mm [ .876 in ]
-
Product Length : 47.19 mm [ 1.858 in ]
-
Product Width : 40.56 mm [ 1.597 in ]
-
Compatible Insulation Diameter Range : 1.35 – 3.05 mm [ .053 – .12 in ]
-
Row-to-Row Spacing : 4.45 mm [ .175 in ]
Usage Conditions
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
Operation/Application
-
Circuit Application : Power
Industry Standards
-
UL Flammability Rating : 12mm Flame Test per Standard UL-94
-
Compatible With Agency/Standards Products : SAE J2030
-
IP Rating : IP68 | IP6K9K
Packaging Features
-
Packaging Method : Box
-
Packaging Quantity : 250
Other
-
Serviceable : Yes
-
Connector Position Assurance Capable : No
Select attributes you would like to keep to see similar products.
The only matching product is this current one. Please revise your search to continue.
0 similar products are available. Please choose different features or characteristics.
