CSE-SMBM-610-SMBM

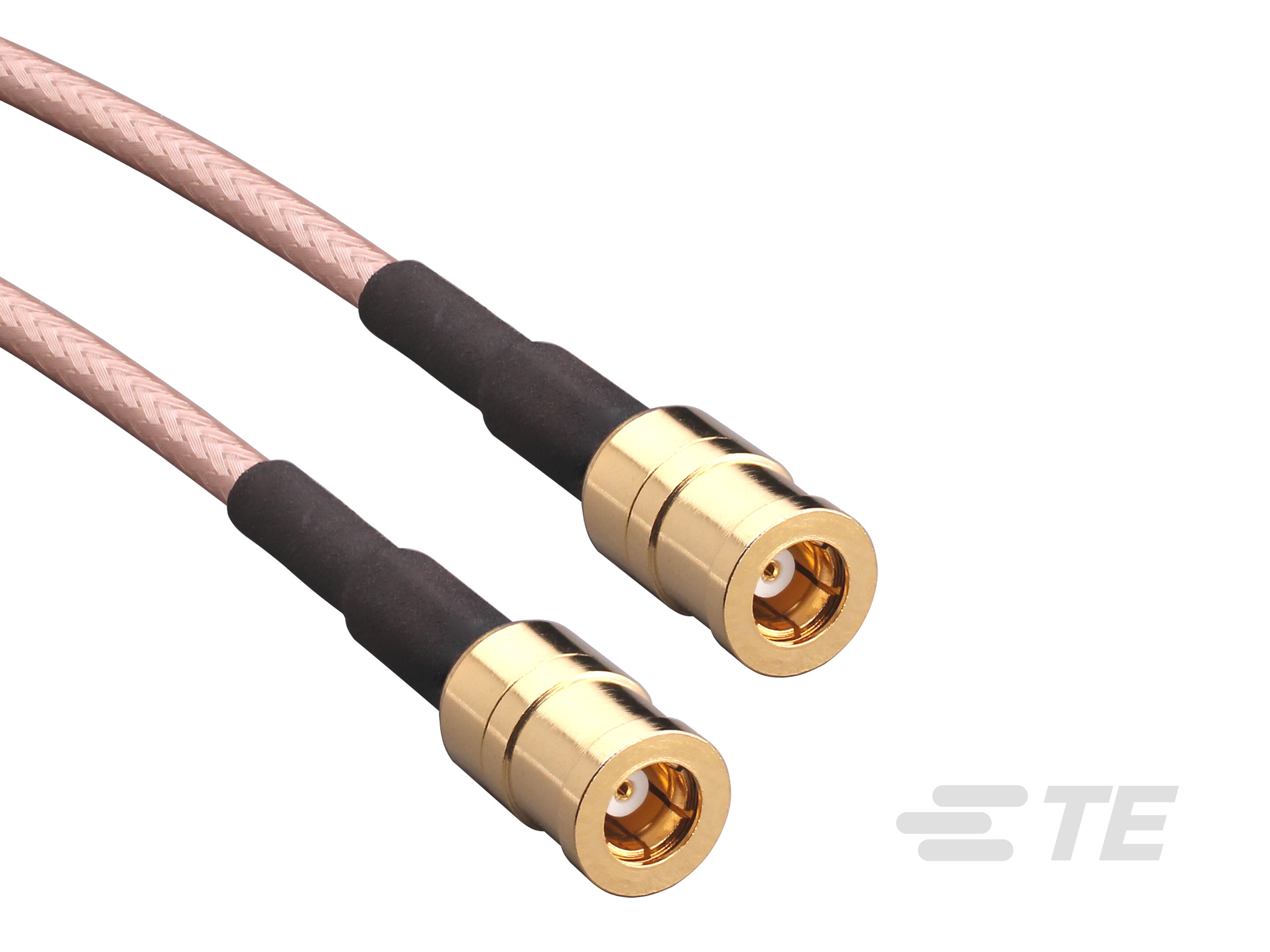

SMB Cable Assembly, .6 m [2 ft], Red Cable, 4 GHz, 50 ohm, FEP Jacket, 25 AWG, 2.49 mm [.098 in] Diameter, SMB Plug End A, SMB Plug End B
CSE-SMBM-610-SMBM
SMB Cable Assembly, .6 m [2 ft], Red Cable, 4 GHz, 50 ohm, FEP Jacket, 25 AWG, 2.49 mm [.098 in] Diameter, SMB Plug End A, SMB Plug End B
- TE Internal #: CSE-SMBM-610-SMBM
- TE Internal Description: SMB to SMB 610mm RG316
-
Cable Assembly Type : SMB
-
Cable Assembly Length : .6 m [ 2 ft ]
-
Cable Color : Red
-
Operating Frequency (GHz): 4
-
Impedance (Ω): 50
