CONUFL001-SMD-T

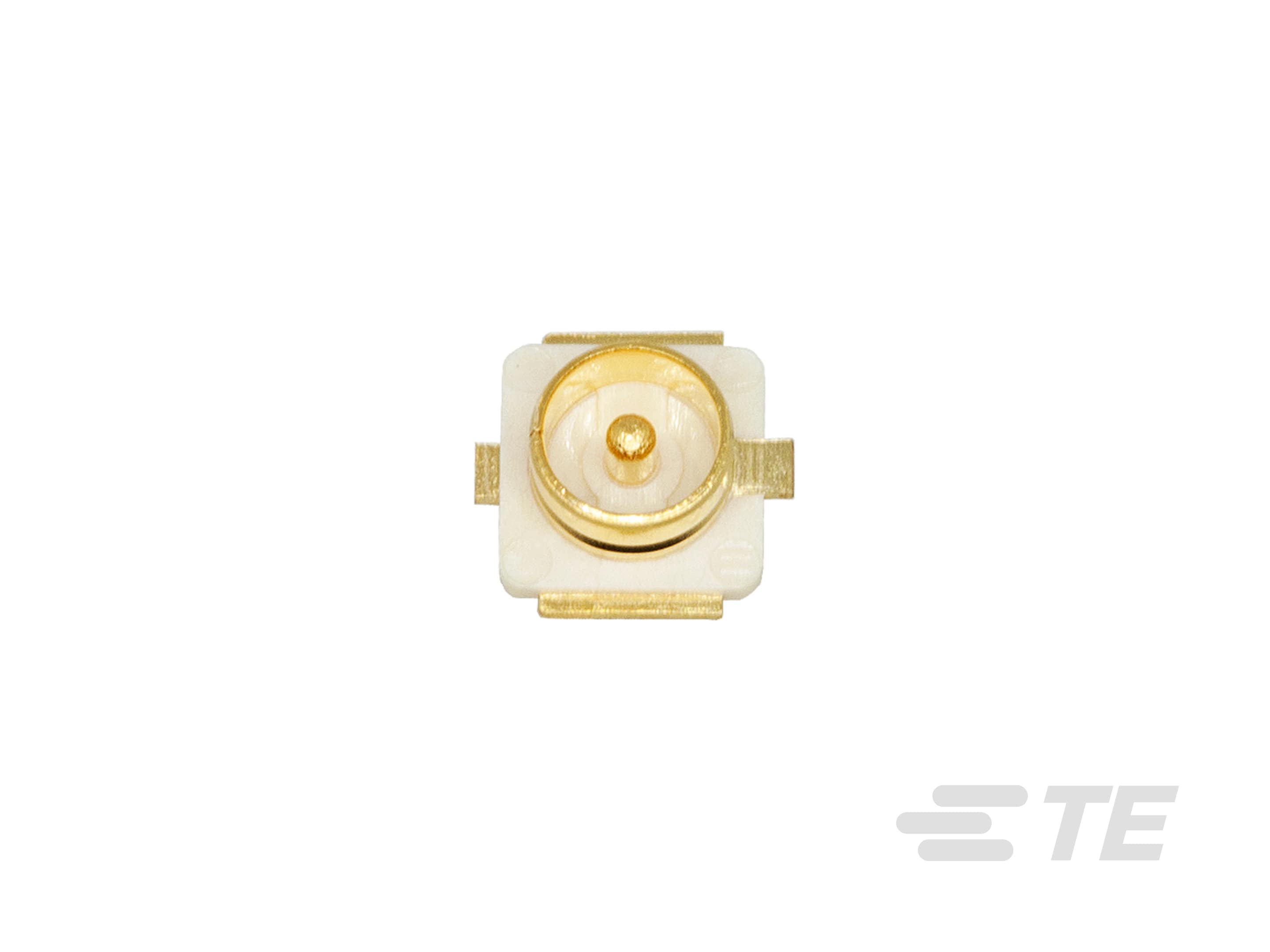

UMCC GEN 1 Connector, Jack, 50 ohm, Snap-On, 6 GHz, 1 Position, Printed Circuit Board, Board Mount, -40 – 90 °C [-40 – 194 °F], Solder, Straight
CONUFL001-SMD-T
UMCC GEN 1 Connector, Jack, 50 ohm, Snap-On, 6 GHz, 1 Position, Printed Circuit Board, Board Mount, -40 – 90 °C [-40 – 194 °F], Solder, Straight
- TE Internal #: CONUFL001-SMD-T
- TE Internal Description: U.FL/MHF1 Jack 50 Ohm PCB Surface Mount
-
RF Interface : UMCC GEN 1
-
RF Connector Style : Jack
-
Impedance (Ω): 50
-
RF Connector Coupling Mechanism : Snap-On
-
Operating Frequency (GHz): 6
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_CONUFL001-SMD-T_B.pdf 3D
- Customer View Model ENG_CVM_CVM_CONUFL001-SMD-T_B.3d_igs.zip English
- ENG_CVM_CVM_CONUFL001-SMD-T_B.2d_dxf.zip English
- ENG_CVM_CVM_CONUFL001-SMD-T_B.3d_stp.zip English
Datasheets & Catalog Pages
- MICRO COAXIAL SURFACE MOUNT CONNECTOR ENG_DS_CONUFL001-SMD-T_B.pdf English
