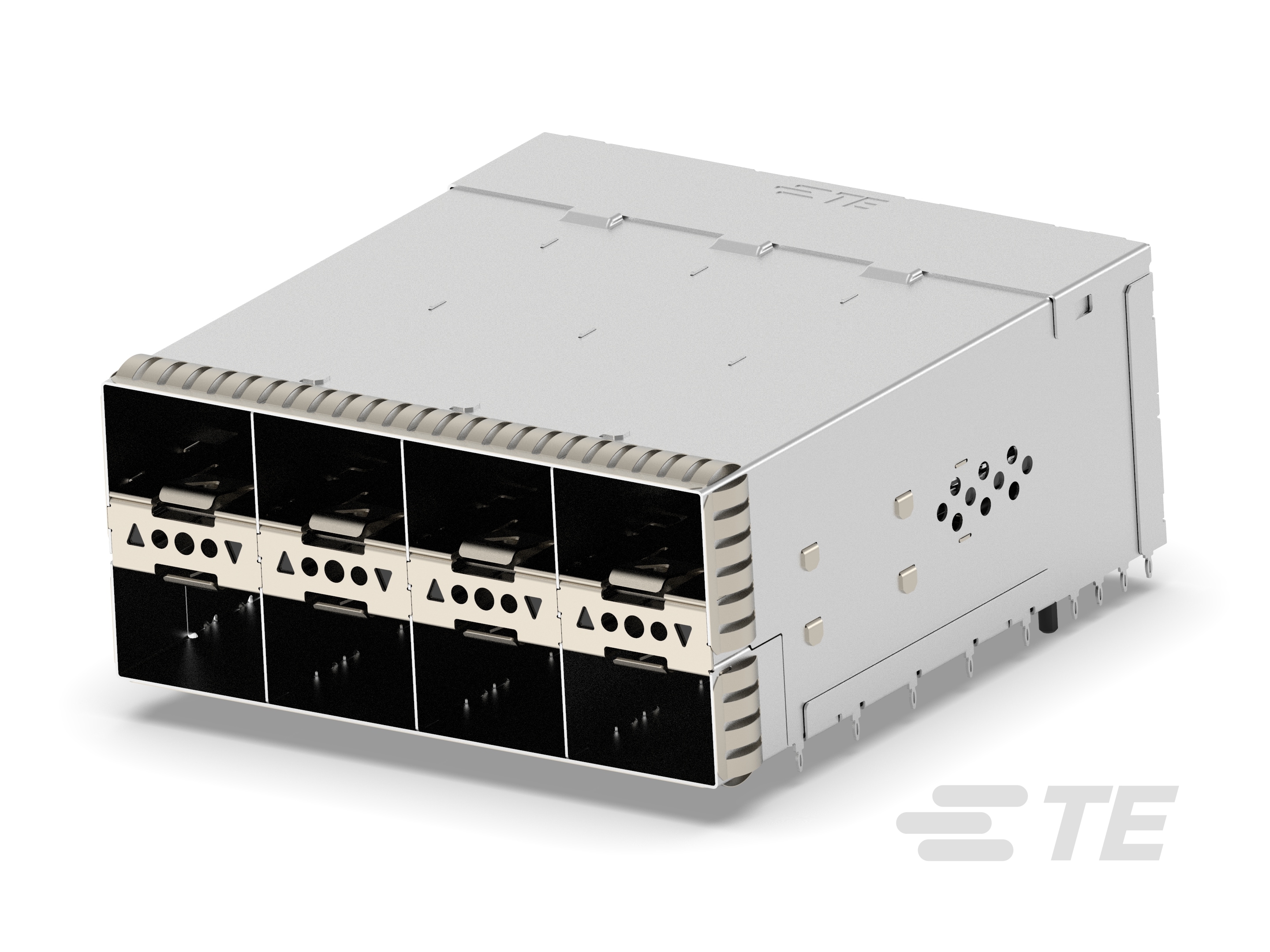

zSFP+ Stacked Cage Assembly: EMI Spring

zSFP+ stacked cage assembly with integrated connector and EMI springs as a EMI containment feature. Available in stacked 2 x 1, 2 x 2, 2 x 4, 2 x 6, 2 x 8 and 2 x 12 ports matrix configurations, data rate of 32 GBS.

More Less

Product Features

Pluggable I/O Product Type: Cage Assembly with Integrated Connector
Circuit Application: Signal
Data Rate (Max)(Gb/s): 32
EMI Containment Feature Type: Internal/External EMI Springs
Form Factor: zSFP+ Stacked (SFP28)

Available from

Product	TE Part #	Documents	Centerline (Pitch)	Sealable	Operating Temperature Range	Number of Positions	Number of Ports	Port Matrix Configuration	Included Lightpipe
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY Buy on te.com	2180324-6	3D PDF	.8 mm	No	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2x2 RECEPTACLE ASSEMBLY Buy on te.com	1-2198325-9	3D PDF	.8 mm	No	-55 – 105 °C	80	4	2 x 2	Yes
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY Buy on te.com	2198339-6	3D PDF	.8 mm	No	-55 – 105 °C	240	12	2 x 6	Yes
zSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY Buy on te.com	2198318-6	3D PDF	.8 mm	No	-55 – 105 °C	40	2	2 x 1	Yes
ZSFP+ STACKED 2X12 RCPT ASSY, EMI SPRING Buy on te.com	2288172-6	3D PDF	.8 mm	Yes	-40 – 85 °C	480	24	2 x 12	Yes
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY Buy on te.com	1-2180324-9	3D PDF	.8 mm	No	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2X8 RECEPTACLE ASSEMBLY Buy on te.com	1-2198346-9	3D PDF	.8 mm	No	-55 – 105 °C	320	16	2 x 8	Yes
zSFP+ STACKED 2X2 RECEPTACLE ASSEMBLY Buy on te.com	2198325-6	3D PDF	.8 mm	No	-55 – 105 °C	80	4	2 x 2	Yes
2X12 ZSFP+ CONNECTOR ASSEMBLY Buy on te.com	2227838-7	3D PDF	.8 mm	No	0 – 70 °C	480	24	2 x 12	No
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY Buy on te.com	2180324-5	3D PDF	.8 mm	No	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY Buy on te.com	2180324-7	3D PDF	.8 mm	Yes	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY Buy on te.com	2198318-8	3D PDF	.8 mm	No	-55 – 105 °C	40	2	2 x 1	Yes
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY Buy on te.com	2198339-8	3D PDF	.8 mm	No	-55 – 105 °C	240	12	2 x 6	Yes
zSFP+ STACKED 2X8 RECEPTACLE ASSEMBLY Buy on te.com	2198346-6	3D PDF	.8 mm	No	-55 – 105 °C	320	16	2 x 8	Yes
zSFP+ STACKED 2X8 RECEPTACLE ASSEMBLY Buy on te.com	2198346-7	3D PDF	.8 mm	No	-55 – 105 °C	320	16	2 x 8	Yes
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY	2-2180324-0	3D PDF	.8 mm	No	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2X2 RECEPTACLE ASSEMBLY	2198325-5	3D PDF	.8 mm	No	-55 – 105 °C	80	4	2 x 2	No
zSFP+ STACKED 2X2 RECEPTACLE ASSEMBLY	2198325-7	3D PDF	.8 mm	No	-55 – 105 °C	80	4	2 x 2	Yes
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY	2198339-7	3D PDF	.8 mm	No	-55 – 105 °C	240	12	2 x 6	Yes
ZSFP+ STACKED 2X6 RCPT ASSY,THERMAL	2291491-1	Product Drawing 3D PDF	.8 mm	No	-55 – 105 °C	240	12	2 x 6	Yes
zSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY	1-2198318-9	3D PDF	.8 mm	No	-55 – 105 °C	40	2	2 x 1	Yes
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY	1-2198339-9	3D PDF	.8 mm	No	-55 – 105 °C	240	12	2 x 6	Yes
ZSFP+ STACKED 2X12 RCPT ASSY, EMI SPRING	1-2288172-9	3D PDF	.8 mm	Yes	-40 – 85 °C	480	24	2 x 12	Yes
zSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY	2-2198318-0	3D PDF	.8 mm	No	-55 – 105 °C	40	2	2 x 1	Yes
zSFP+ STACKED 2x2 RECEPTACLE ASSEMBLY	2-2198325-0	3D PDF	.8 mm	No	-55 – 105 °C	80	4	2 x 2	Yes
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY	2-2198339-0	3D PDF	.8 mm	No	-55 – 105 °C	240	12	2 x 6	Yes
zSFP+ STACKED 2X8 RECEPTACLE ASSEMBLY	2-2198346-0	3D PDF	.8 mm	No	-55 – 105 °C	320	16	2 x 8	Yes
ZSFP+ STACKED 2X12 RCPT ASSY, EMI SPRING	2-2288172-0	3D PDF	.8 mm	Yes	-40 – 85 °C	480	24	2 x 12	Yes
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY	2180324-8	3D PDF	.8 mm	Yes	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY	2198318-5	3D PDF	.8 mm	No	-55 – 105 °C	40	2	2 x 1	No
zSFP+ STACKED 2X1 RECEPTACLE ASSEMBLY	2198318-7	3D PDF	.8 mm	No	-55 – 105 °C	40	2	2 x 1	Yes
zSFP+ STACKED 2X2 RECEPTACLE ASSEMBLY	2198325-8	3D PDF	.8 mm	No	-55 – 105 °C	80	4	2 x 2	Yes
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY	2198339-5	3D PDF	.8 mm	No	-55 – 105 °C	240	12	2 x 6	No
zSFP+ STACKED 2X8 RECEPTACLE ASSEMBLY	2198346-5	3D PDF	.8 mm	No	-55 – 105 °C	320	16	2 x 8	No
zSFP+ STACKED 2X8 RECEPTACLE ASSEMBLY	2198346-8	3D PDF	.8 mm	No	-55 – 105 °C	320	16	2 x 8	Yes
ZSFP+ STACKED 2X12 RCPT ASSY, EMI SPRING	2288172-5	3D PDF	.8 mm	Yes	-40 – 85 °C	480	24	2 x 12	No
ZSFP+ STACKED 2X12 RCPT ASSY, EMI SPRING	2288172-7	3D PDF	.8 mm	Yes	-40 – 85 °C	480	24	2 x 12	Yes
ZSFP+ STACKED 2X12 RCPT ASSY, EMI SPRING	2288172-8	3D PDF	.8 mm	Yes	-40 – 85 °C	480	24	2 x 12	Yes
ZSFP+ STACKED 2X12 RCPT ASSY, AIRFLOW	2301210-2	Product Drawing 3D PDF	4.9 mm	No	-55 – 105 °C	24	24	2 x 12	No
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY	3-2180324-1	3D PDF	.8 mm	No	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY	3-2180324-2	3D PDF	.8 mm	No	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2X4 RECEPTACLE ASSEMBLY	3-2180324-3	3D PDF	.8 mm	No	-55 – 105 °C	160	8	2 x 4	No
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY	3-2198339-1	3D PDF	.8 mm	No	-55 – 105 °C	240	12	2 x 6	No
ZSFP+ STACKED 2X8 RECEPTACLE ASSEMBLY,	3-2198346-1	3D PDF	.8 mm	No	-55 – 105 °C	320	16	2 x 8	No
zSFP+ STACKED 2X8 RECEPTACLE ASSEMBLY	4-2198346-0	3D PDF	.8 mm	No	-55 – 105 °C	320	16	2 x 8	Yes

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Pluggable I/O Product Type Cage Assembly with Integrated Connector
Sealable No, Yes
Form Factor zSFP+ Stacked (SFP28)
Cage Type Stacked

Configuration Features

Number of Positions 24, 40, 80, 160, 240, 320, 480
Number of Ports 2, 4, 8, 12, 16, 24
Port Matrix Configuration 2 x 1, 2 x 12, 2 x 2, 2 x 4, 2 x 6, 2 x 8
Lightpipe Style Standard

Electrical Characteristics

Data Rate (Max) (Gb/s) 32

Contact Features

Contact Current Rating (Max) (A) .5
Contact Mating Area Plating Material Gold or Gold Flash over Palladium Nickel
Contact Mating Area Plating Material Thickness .76 µm [ 29.92 µin ]
Tail Plating Material Tin

Termination Features

Termination Method to Printed Circuit Board Through Hole - Press-Fit
Termination Post & Tail Length 1.8 mm [ .07 in ]

Housing Features

Centerline (Pitch) (mm) .8, 4.9
Centerline (Pitch) (in) .031, .032, .193
Cage Material Nickel Silver Alloy

Dimensions

PCB Thickness (Recommended) 1.5 mm [ .059 in ]

Usage Conditions

Operating Temperature Range (°C) -55 – 105, -40 – 85, 0 – 70
Operating Temperature Range (°F) -67 – 221, -40 – 185, 32 – 158

Operation/Application

Circuit Application Signal
Heat Sink Compatible No
Pluggable I/O Applications SFP+ Thermally Enhanced, zSFP+ Thermally Enhanced

Industry Standards

UL Flammability Rating UL 94V-0

Packaging Features

Packaging Method Tray

Other

Included Lightpipe No, Yes
EMI Containment Feature Type Internal/External EMI Springs

Reference Number

TE Internal Number CAT-Z8-P650796
