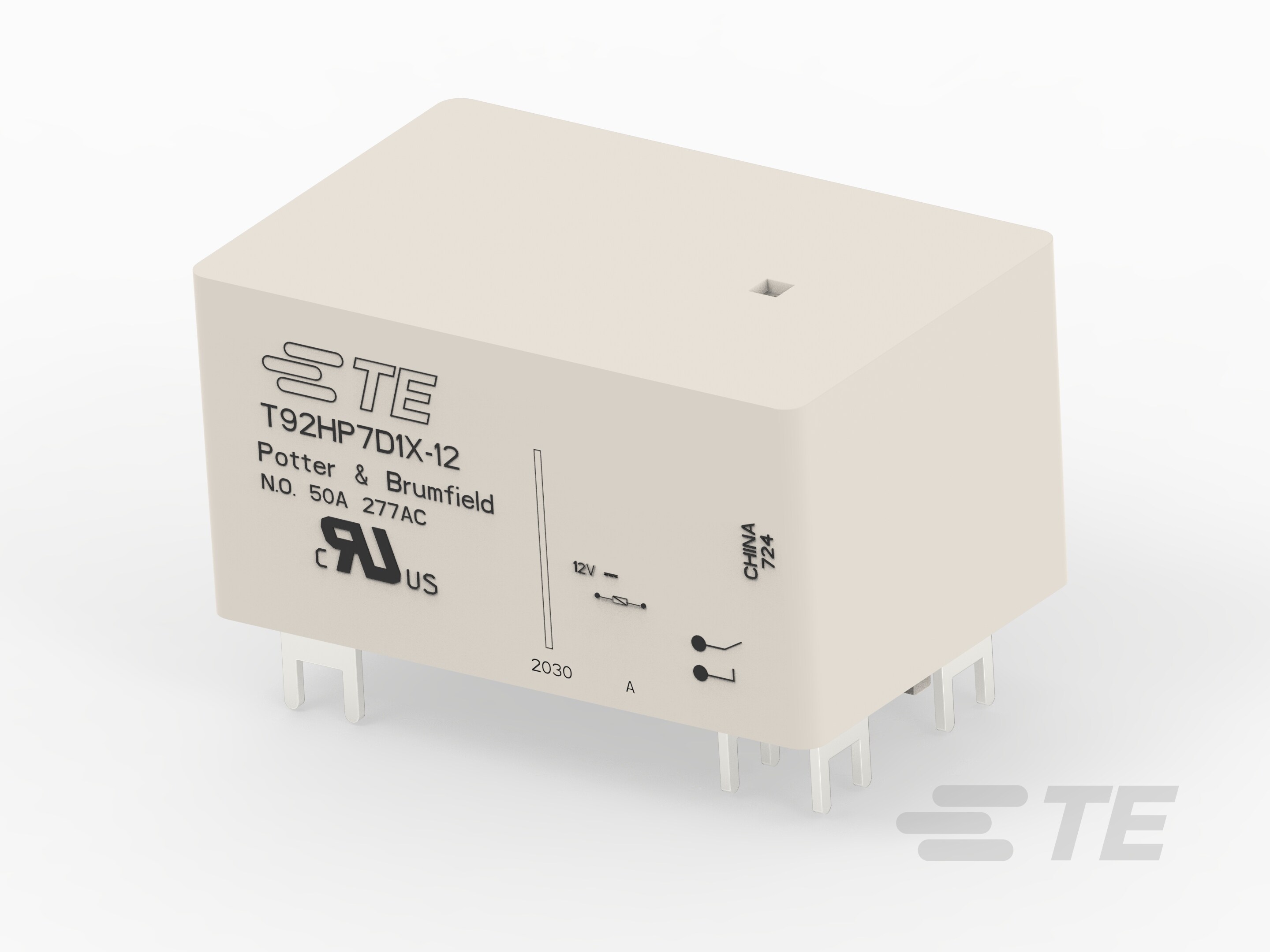

Product Type Features
-
Relay & Contactor Type
General Purpose Power Relay
Configuration Features
-
Contact Special Features
Single Contact
-
Coil Special Features
UL Coil Insulation Class F
-
Contact Number of Poles
2
-
Contact Arrangement
2 Form A DPST-NO
Electrical Characteristics
-
Coil Resistance (Ω)
86 | 344 | 345 | 886 | 1390
-
Insulation Initial Dielectric Between Adjacent Contacts (Vrms)
1500
-
Contact Limiting Continuous Current (A)
45 | 50
-
Contact Switching Load (Min)
500mA @ 12V
-
Insulation Initial Resistance (MΩ)
1000
-
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
-
Coil Current (A)
.035 | .07 | .13 | .14
-
Contact Switching Voltage (Max) (VAC)
600
-
Contact Limiting Breaking Current (A)
50 | 70
-
Coil Power Rating AC (VA)
4
-
Contact Limiting Making Current (A)
50
-
Contact Current Rating (A)
45 | 50
-
Coil Voltage Rating (VAC)
120
-
Coil Voltage Rating (VDC)
12 | 24 | 48
-
Contact Voltage Rating (VAC)
277
-
Coil Power Rating DC (W)
1.7
-
Insulation Initial Dielectric Between Contacts & Coil (Vrms)
4000
Body Features
-
Primary Product Color
Natural
-
Product Weight (g)
81 | 81.35 | 86
-
Enclosure Type
Dust Protected | Flux Resistant Automatic Solder Capable & Washable
Contact Features
-
Contact Material
AgSnOInO | Silver Alloy
Termination Features
-
Main Termination & Connection Type
Quick Connect Terminals | Solder Pins
-
Coil Termination & Connection Type
Quick Connect Terminals | Solder Pins
Mechanical Attachment
-
Product Mounting Feature Type
Flange with Mounting Slots
-
Product Mount Type
Board Mount | Panel Mount
Dimensions
-
Product Width
34.54 mm [ 1.36 in ]
-
Product Height (mm)
26.42 | 30.73
-
Product Height (in)
1.04 | 1.21
-
Insulation Creepage Between Contact & Coil (mm)
8
-
Insulation Creepage Between Contact & Coil (in)
.31 | .315
-
Product Length (mm)
52.32 | 68.58
-
Product Length (in)
2.06 | 2.7
-
Insulation Clearance Between Contact & Coil (mm)
8
-
Insulation Clearance Between Contact & Coil (in)
.31 | .315
Usage Conditions
-
Environmental Category of Protection
RTI | RTIII
-
Operating Temperature Range
-55 – 85 °C [ -67 – 185 °F ]
-
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Operation/Application
-
Shock Resistance
100G's, 11ms
-
Coil Magnetic System
Monostable
-
Current Type
AC | DC
Packaging Features
-
Packaging Method
Box & Tray | Bundle
Other
-
Contact Current Class (A)
>32 – ≤50
-
Coil Power Rating Class
>1.5 – ≤3 W [ >3.5 VA ]
-
Height Class (Mechanical) (mm)
>22 – ≤27 | >27 – ≤33
-
Height Class (Mechanical) (in)
>.866 – ≤1.063 | >1.063 – ≤1.299
-
Length Class (Mechanical)
>45 – ≤70 mm [ >1.772 – ≤2.756 in ]
-
Width Class (Mechanical)
>33 mm [ >1.299 in ]
Reference Number
-
TE Internal Number
CAT-Z30-T92H
