Emergency Stop Switches: 22mm Mounting Hole, Pushbutton

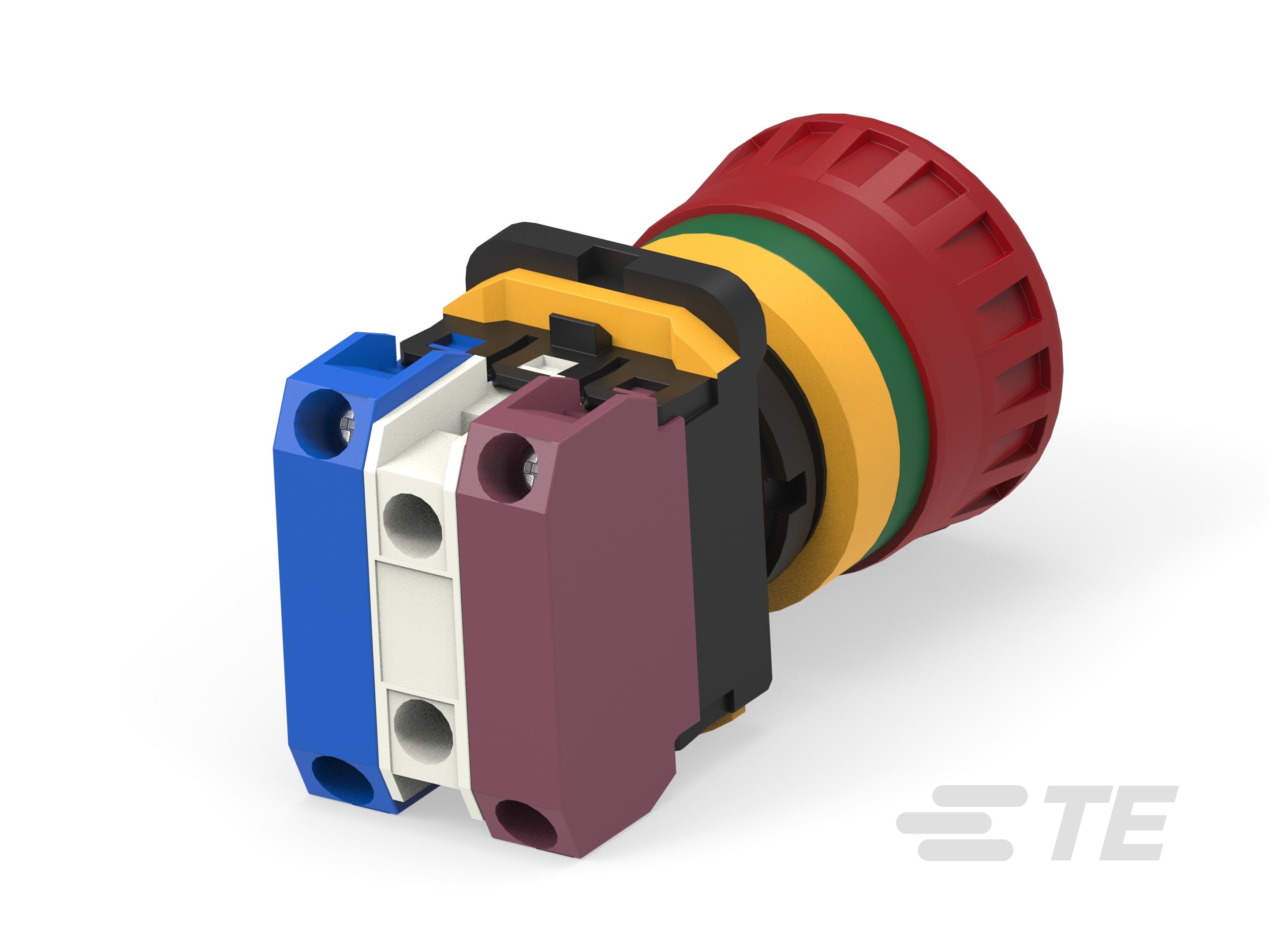

ALCOSWITCH PBES22 series pushbutton emergency stop switch, single actuator in illuminated and non-illuminated styles with simple mounting. Easy to terminate screw terminals that allows fast and virtually tool-free termination.

More Less

Product Features

Push Button Switch Product Type : Emergency Stop Switch
Configuration (Pole-Throw) : Double Pole - Single Throw, Single Pole - Single Throw, Three Pole - Single Throw
Number of Actuators : Single
Actuator Profile : Extended
Bushing Style : Threaded

Available from

Product	TE Part #	Documents	Configuration (Pole-Throw)	Illuminated	EU RoHS Compliance
PBES22 40 NO LAMP NC NC	1-2416049-0	Product Drawing 3D PDF	Double Pole - Single Throw	Without	-
PBES22 40 LED 6V AC/DC 11mA NC NC	1-2416049-1	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 110V AC/DC 1.4mA NO NC	3-2416049-5	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 230/240V AC/DC 1.2mA NONC	3-2416049-6	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 NO LAMP NO NO	3-2416049-7	Product Drawing 3D PDF	Double Pole - Single Throw	Without	-
PBES22 40 LED 6V AC/DC 11mA 000 NC	2416049-2	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 12V AC/DC 10mA 000 NC	2416049-3	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 24V AC/DC 10mA 000 NC	2416049-4	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 INCA 6V AC/DC 6.3V 1W 000 NC	2416049-5	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 INCA 12V AC/DC 18V 1W 000 NC	2416049-6	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 110V AC/DC 1.4mA 000 NC	2416049-8	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 RB NO LAMP NC 000 NC	2416050-2	Product Drawing 3D PDF	Double Pole - Single Throw	Without	-
PBES22 40 LED 24V AC/DC 10mA NO 000	2-2416049-2	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 INCA 24V AC/DC 30V 1W NO 000	2-2416049-5	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 110V AC/DC 1.4mA NO 000	2-2416049-6	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 12V AC/DC 10mA NO NC	3-2416049-0	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 24V AC/DC 10mA NO NO	4-2416049-0	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 INCA 6V AC/DC 6.3V 1W NO NO	4-2416049-1	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 230/240V AC/DC 1.2mA NONO	4-2416049-5	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 INCA 24V AC/DC 30V 1W NC NC	1-2416049-6	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 12V AC/DC 10mA NC NC	1-2416049-2	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 24V AC/DC 10mA NC NC	1-2416049-3	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 INCA 6V AC/DC 6.3V 1W NC NC	1-2416049-4	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 INCA 12V AC/DC 18V 1W NC NC	1-2416049-5	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 110V AC/DC 1.4mA NC NC	1-2416049-7	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 230/240V AC/DC 1.2mA NCNC	1-2416049-8	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 NO LAMP NO 000	1-2416049-9	Product Drawing 3D PDF	Single Pole - Single Throw	Without	-
PBES22 40 LED 6V AC/DC 11mA NO 000	2-2416049-0	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 12V AC/DC 10mA NO 000	2-2416049-1	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 INCA 12V AC/DC 18V 1W NO 000	2-2416049-4	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 NO LAMP NO NC	2-2416049-8	Product Drawing 3D PDF	Double Pole - Single Throw	Without	-
PBES22 40 NO LAMP 000 NC	2416049-1	Product Drawing 3D PDF	Single Pole - Single Throw	Without	-
PBES22 40 INCA 24V AC/DC 30V 1W 000 NC	2416049-7	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 230/240V AC/DC 1.2mA000NC	2416049-9	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 RB NO LAMP NO 000 NC	2416050-5	Product Drawing 3D PDF	Double Pole - Single Throw	Without	-
PBES22 40 RB NO LAMP NO NC NC	2416050-6	Product Drawing 3D PDF	Three Pole - Single Throw	Without	-
PBES22 40 RB NO LAMP NO NO NC	2416050-8	Product Drawing 3D PDF	Three Pole - Single Throw	Without	-
PBES22 40 INCA 6V AC/DC 6.3V 1W NO 000	2-2416049-3	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 230/240V AC/DC 1.2mANO000	2-2416049-7	Product Drawing 3D PDF	Single Pole - Single Throw	With	-
PBES22 40 LED 6V AC/DC 11mA NO NC	2-2416049-9	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 INCA 12V AC/DC 18V 1W NO NO	4-2416049-2	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 INCA 24V AC/DC 30V 1W NO NO	4-2416049-3	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 LED 110V AC/DC 1.4mA NO NO	4-2416049-4	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 RB NO LAMP 000 000 NC	2416050-1	Product Drawing 3D PDF	Single Pole - Single Throw	Without	-
PBES22 40 RB NO LAMP NC NC NC	2416050-3	Product Drawing 3D PDF	Three Pole - Single Throw	Without	-
PBES22 40 RB NO LAMP NO 000 000	2416050-4	Product Drawing 3D PDF	Single Pole - Single Throw	Without	-
PBES22 40 RB NO LAMP NO 000 NO	2416050-7	Product Drawing 3D PDF	Double Pole - Single Throw	Without	-
PBES22 40 RB NO LAMP NO NO NO	2416050-9	Product Drawing 3D PDF	Three Pole - Single Throw	Without	-
PBES22 40 LED 24V AC/DC 10mA NO NC	3-2416049-1	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
PBES22 40 INCA 12V AC/DC 18V 1W NO NC	3-2416049-3	Product Drawing 3D PDF	Double Pole - Single Throw	With	-
