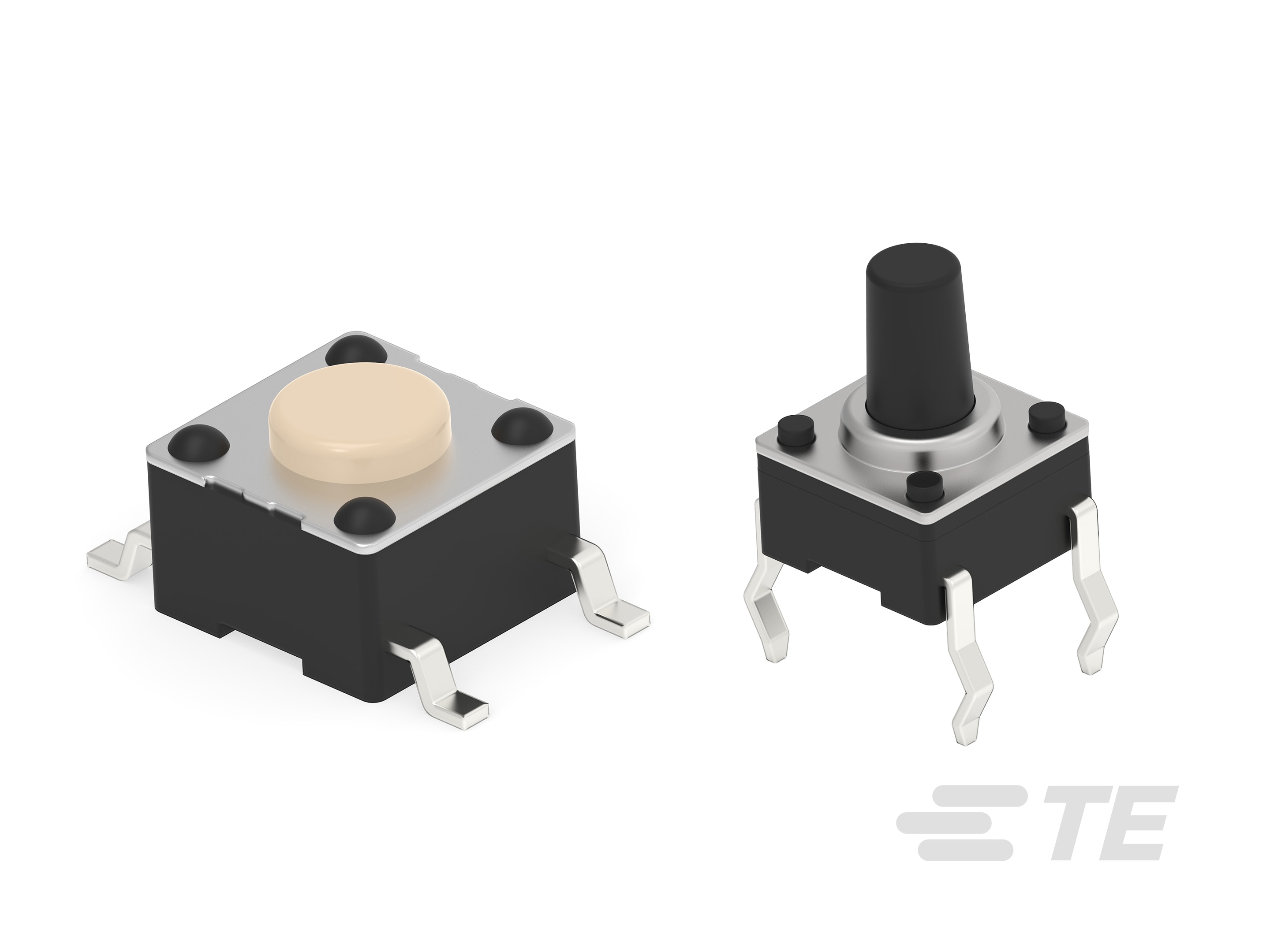

ALCOSWITCH Sealed Tactile Switches

ALCOSWITCH Sealed Tactile Switches-CAT-W04-TS
ALCOSWITCH Sealed Tactile Switches provide reliable tactile feedback and IP67-rated protection from dust and moisture. Designed for harsh environments, they come in compact, durable, low-profile, and ultra-miniature sizes with surface mount or through-hole options. With customizable actuation force, height, travel, and materials, they’re ideal for consumer electronics, industrial, automotive, and medical applications.
More Less
Connect with Us

Product Features

  • Actuator Style : Extended, Side Actuator | Top Actuator

  • Operating Function : Off (On)

  • Contact Base Material : PBSR | Stainless Steel

  • Switch Contact Plating Material : Silver

  • IP Rating : IP67

Available from

LADD Inc
Overview
Datasheet
ALCOSWITCH SEALED TACTILE SWITCHES

TE Connectivity’s Alcoswitch Sealed Tactile Switches are a comprehensive line of high-quality electromechanical components designed to deliver reliable tactile feedback and environmental protection in a wide range of applications.

Tactile switches

Product Group

Designed for tactile feedback

Our large selection of tactile switches includes miniature surface mount switches, IP-rated tactile switches, and much more.

Product Category

Switches

We manufacture a comprehensive range of reliable switches engineered for various safety-critical applications. Our portfolio ranges includes push button switches, rocker switches, DIP switches, Ethernet switches, and more.

Connect With Us

Need more information about the product? Not finding the required part? Click here to contact our TE experts for more information!
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Illuminated  Without

  • Leg Style  Gull Wing | J Style | Through Hole

  • Switch Connection Type  Solder

  • Actuator Style  Extended, Side Actuator | Top Actuator

Configuration Features

  • ESD Grounding Terminal  Without

  • Ganged  Without

  • Switch Feedback Type  Non-Tactile

  • Operating Function  Off (On)

  • Support Bracket  Without

  • Configuration (Pole-Throw)  Single Pole - Single Throw

  • Number of Actuators  Single

Electrical Characteristics

  • Operating Voltage (VDC) 24

Body Features

  • Actuator Force (g) 100 | 160 | 180 | 200 | 250 | 260 | 280 | 320 | 330 | 350 | 500

  • Actuator Profile  Extended

  • Cover Material  PBT GF | Stainless Steel | Steel | Steel-Tin Plate

  • Case Material  LCP | PA6T | PA9T | PBT | PPA | PPS

  • Case Color  Black | Brown | Gray

  • Actuator Material  LCP | PA6T | PA9T | PBT | PPA | Silicone Rubber

  • Product Orientation  Right Angle | Vertical

  • Actuator Color  Amber | Black | Blue | Brown | Gray | Green | Orange | Red | White | Yellow

Contact Features

  • Contact Base Material  PBSR | Stainless Steel

  • Switch Contact Plating Material  Silver

  • Contact Current Rating (mA) 50

Termination Features

  • Termination Method to PCB  Surface Mount | Through Hole - Solder

Housing Features

  • Low Profile  No | Yes

Usage Conditions

  • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

Industry Standards

  • IP Rating  IP67

Packaging Features

  • Packaging Method  Poly Bag | Radial Tape | Reel

Reference Number

  • TE Internal Number CAT-W04-TS
