TMR Rotary Position Sensor
This Tunnel Magnetoresistance (TMR) end-of-shaft rotary position sensor is contactless and PCB-less, providing high accuracy and high speed sensing for safety critical applications. AEC Q-100 qualified.
Product Features
-
Position Sensor Product Type : Rotary Position
-
Automotive Sensor Technology : xMR
-
Functional Area : eMotor
-
Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]
Overview
The sensor package tip is placed inside a dipole bias magnet. The TMR sensing elements sense the rotation of this dipole magnet and acquire the rotating magnetic field signals. Digital signal processing algorithms and high-speed circuitry compute the rotation angle from these signals. The sensor outputs 16-bit absolute position signal through a fast serial communication, with rotational speeds up to 30,000 RPM. The sensor has dynamic offset and gain calibration to compensate for misalignment between the sensor and the dipole bias magnet.
Key Features
- High angle accuracy of < ±0.25°
- Supports rotation speeds up to 30,000 RPM
- High-speed communication at 8 Mbps
- Triggered output with low latency < 12us ±0.3μs jitter
- Dynamic gain and offset compensation
- Harmonic correction
- Overvoltage and reverse polarity protection
- ISO2626262 ASIL-C compliant
- AEC Q-100 qualified
Applications
- Rotor position sensing
- Contactless absolute angular position

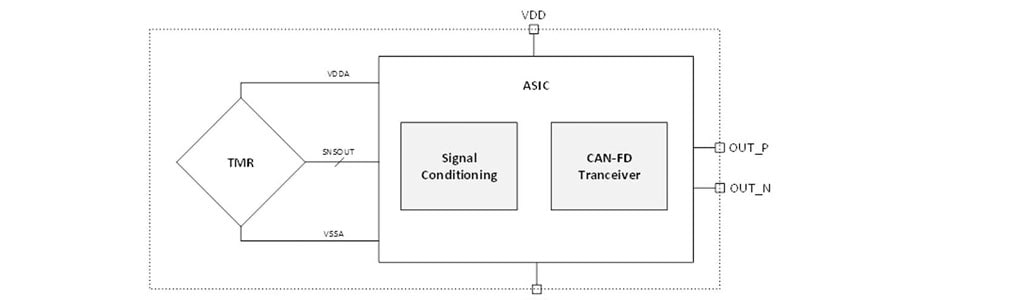

TMR rotary position sensor block diagram
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Position Sensor Product Type Rotary Position
-
Automotive Sensor Technology xMR
Usage Conditions
-
Operating Temperature Range -40 – 150 °C [ -40 – 302 °F ]
Operation/Application
-
Functional Area eMotor
