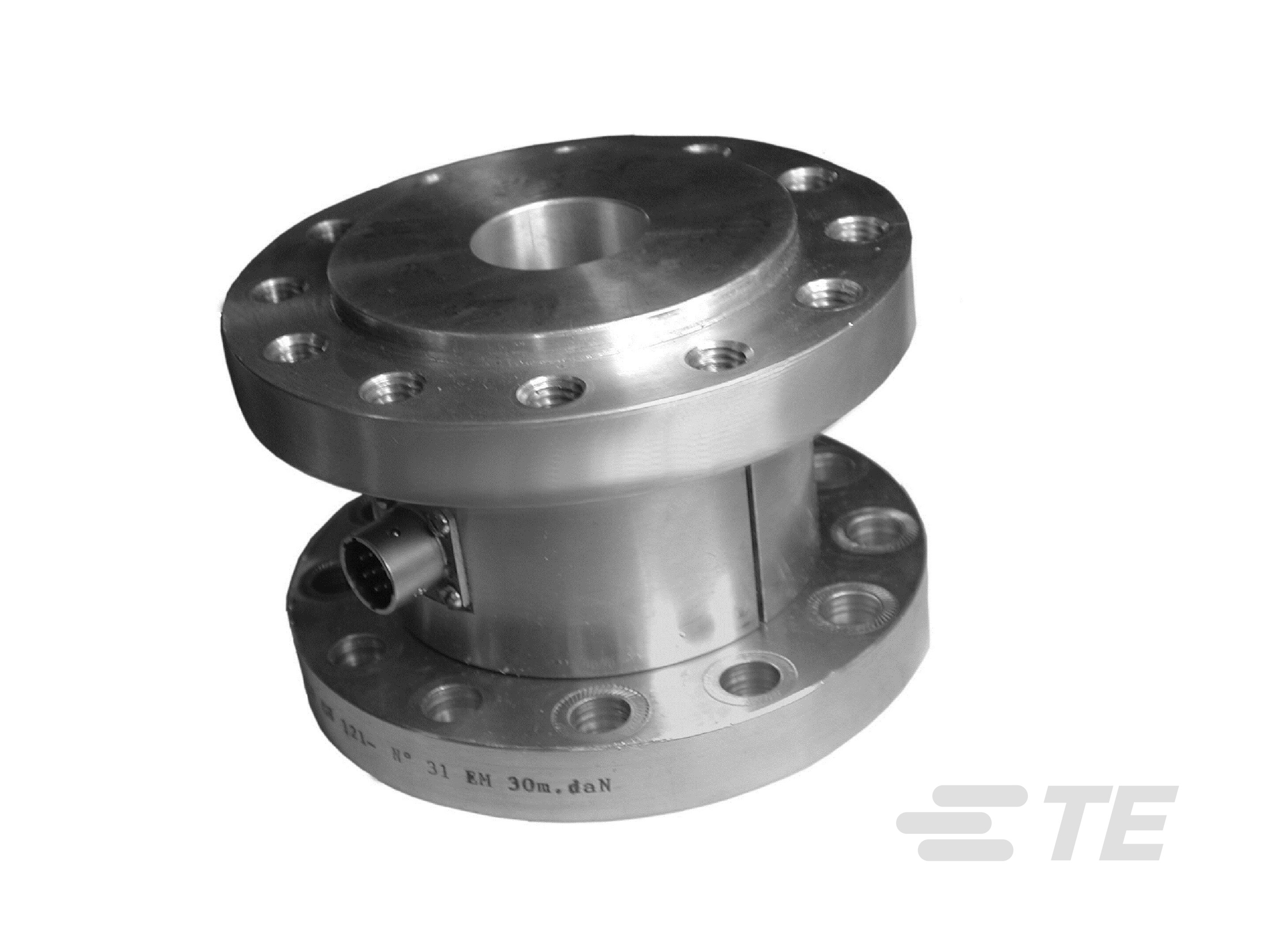

REACTION TORQUE SENSOR - COLLAR FITTINGS

REACTION TORQUE SENSOR - COLLAR FITTINGS-CAT-TOR0007
  • MEAS
|
  • MEAS CS
The CS1210 Series has been developed to measure torque in static applications. It offers high operating ranges up to 8,000 lbf.ft.
More Less

Product Features

  • Torque Sensor Type : Static Torque Sensors

  • Force Direction : Clockwise, Counterclockwise

  • Full Scale Range (Nm): 600, 2400, 3500, 4800

  • Full Scale Range (lbf): 480, 1920, 2800, 3840

  • Rotation Speed (RPM): Static

Available from

LADD Inc
Overview

The mechanical design and gauge placement minimizes transverse effects. Fitted with metallic strain gauges in a Wheatstone bridge circuit, the CS1210 is providing excellent temperature stability. For high-level output a model with integrated amplifier is available.

With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. often works with customers to design or customize sensors for specific uses and testing environments.

To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

BENEFITS

  • Collar mechanical fittings
  • Range from ±160 to ±10,000 Nm(±1±8,000 lbf.ft)
  • Stainless Steel or Aluminum
  • Gland or Connector Output
  • Built In Amplifier per Request
  • For Static Applications
  • High Stiffness
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Torque Sensor Type  Static Torque Sensors

Electrical Characteristics

  • Full Scale Range (Nm) 600, 2400, 3500, 4800

  • Full Scale Range (lbf) 480, 1920, 2800, 3840

  • Supply Voltage (VDC) 1 – 10, 10 – 30

Usage Conditions

  • Operating Temperature Range  -20 – 80 °C [ -4 – 176 °F ]

  • Accuracy (% of FS) ±.25

Operation/Application

  • Rotation Speed (RPM) Static

  • Output Signal Type  ±2 mV/V, ±2 V

Other

  • Force Direction  Clockwise, Counterclockwise

Reference Number

  • TE Internal Number CAT-TOR0007
