DUAL RATED ALUMINUM CRIMP LUGS & SPLICES

DUAL RATED ALUMINUM CRIMP LUGS & SPLICES-CAT-TATL-TASL
  • RAYCHEM
Our electro-tin-plated dual-rated aluminium crimp lugs and splices are made from high-conductivity aluminium. They operate in 600 V to 35 kV applications and accommodate cable sizes from 1/0 AWG to 1500 kcmil, copper or aluminium, with one- or two-hole configurations.
More Less
Connect with Us

Product Features

  • Product Availability : Americas

  • Installation Technology : Crimp

  • Voltage Class (kV): ≤ 35

  • Compatible Conductor Material : Aluminum | Copper

  • Crimp Type : Compression Crimp

Available from

LADD Inc
Overview
Dual-rated design supports both copper and aluminium, reducing inventory complexity

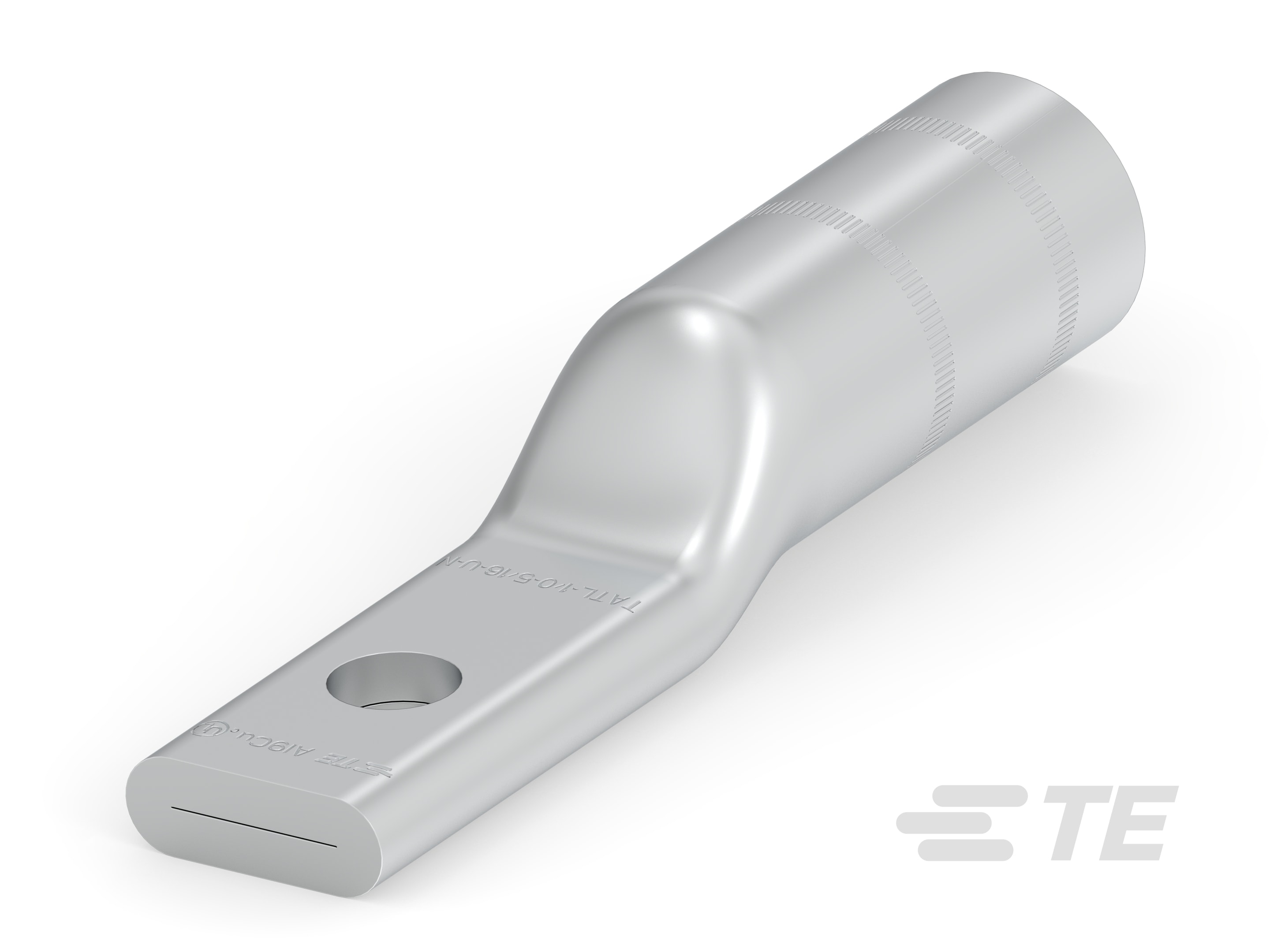

TE Connectivity (TE) crimp-type compression lugs and splices provide reliable electrical performance and corrosion resistance. They are made from high-conductivity aluminium and are electro-tin-plated to resist electrolytic corrosion for applications ranging from 600 V to 35 kV. Compression lugs and splices are available to accommodate cable sizes from 1/0 AWG to 750 kcmil in copper and aluminium, in one- or two-hole configurations.

The barrels are chamfered for easy conductor entry and pre-filled with oxide inhibitor to prevent contamination. The extended barrel length provides effective conductor contact after crimping. The barrel caps are colour-coded to match the required die set and help protect the inhibitor before installation.

Key Features

  • For 600 V to 35 kV applications
  • Suitable with both aluminum and copper conductors
  • Industry-standard color-coded caps simplifies die selection
  • Electro tin-plated for electrolytic corrosion resistance and durability
  • Barrel end inserted prevents contamination of Oxide-Inhibiting compound

Applications

FAQ

Question: Are these connectors suitable for aluminium and copper conductors?

Answer: Yes, they are tin-plated aluminium and are suitable for both aluminium and copper conductors.



Question: Can these connectors be used on fine-strand wire, such as DLO (Diesel Locomotive Cable)?

Answer: In some cases, yes. Please contact TE Customer Care for size recommendations.



Question: Can these connectors be used for overhead high-tension applications?

Answer: No, these connectors are designed for underground distribution and are light-duty products with a minimum tension rating.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Installation Technology  Crimp

  • Stud Size  1/2 | 1/4 | 3/4 | 3/8 | 5/16 | 5/8 | 9/16

Configuration Features

  • Number of Holes  1 | 2

Electrical Characteristics

  • Voltage Class (kV) ≤ 35

Body Features

  • Compression Barrel Type  Long

  • Conductor Type  Stranded & Solid

  • Compatible Conductor Material  Aluminum | Copper

  • Primary Product Material  Aluminum

  • Palm Terminal Material  Aluminium

Contact Features

  • Crimp Type  Compression Crimp

Dimensions

  • Barrel Length (mm) 19.1 | 23.4 | 23.8 | 30 | 33 | 36.6 | 38.1 | 39.6 | 41.1 | 49.28 | 50.8 | 53.8 | 55.6 | 57.15 | 58.7 | 66.5 | 69.9 | 74.68 | 74.7 | 76.2 | 79.2 | 84.33 | 85.8 | 85.86 | 98.6 | 104.6 | 117.3 | 117.4 | 118.8

  • Barrel Length (in) .75 | .92 | .94 | 1.18 | 1.3 | 1.44 | 1.5 | 1.56 | 1.62 | 1.94 | 2 | 2.12 | 2.19 | 2.25 | 2.31 | 2.62 | 2.75 | 2.94 | 3 | 3.12 | 3.32 | 3.38 | 3.88 | 4.12 | 4.62 | 4.68

  • Lug Length (mm) 57.9 | 58.4 | 66.55 | 79.25 | 81.03 | 87.4 | 90.43 | 91.95 | 101.6 | 108.21 | 134.12 | 138.2 | 139.7 | 141 | 152.4 | 162.1 | 166.63 | 185.68 | 209.55 | 245.8 | 251.7

  • Lug Length (in) 2.28 | 2.3 | 2.62 | 3.12 | 3.19 | 3.44 | 3.56 | 3.62 | 4 | 4.26 | 5.28 | 5.44 | 5.5 | 5.55 | 6 | 6.38 | 6.56 | 7.31 | 8.25 | 9.68 | 9.91

  • Lug Width (mm) 14.2 | 15.7 | 19.1 | 22.36 | 22.4 | 24.2 | 26.93 | 30.23 | 31.5 | 31.75 | 34.55 | 35.06 | 37.85 | 38.1 | 43.95 | 44.45 | 44.55 | 50.8 | 62 | 66 | 78

  • Lug Width (in) .56 | .62 | .75 | .88 | .95 | 1.06 | 1.19 | 1.24 | 1.25 | 1.36 | 1.38 | 1.49 | 1.5 | 1.73 | 1.75 | 2 | 2.44 | 2.6 | 3.07

  • Barrel Inside Diameter (mm) 5.1 | 6.7 | 6.9 | 7.8 | 8.9 | 9.15 | 10.5 | 10.67 | 11.2 | 12.3 | 12.4 | 13.7 | 15.1 | 15.2 | 15.24 | 16.5 | 18.3 | 18.5 | 21.4 | 21.59 | 23.4 | 23.6 | 26.2 | 26.4 | 30.3 | 33.7 | 38

  • Barrel Inside Diameter (in) .2 | .263 | .271 | .307 | .35 | .36 | .413 | .42 | .44 | .484 | .488 | .539 | .594 | .598 | .6 | .649 | .72 | .728 | .842 | .85 | .921 | .929 | 1.03 | 1.19 | 1.32 | 1.49

  • Barrel Outside Diameter (mm) 8.8 | 11.9 | 13.47 | 13.5 | 16.26 | 16.3 | 17.5 | 17.53 | 19.3 | 22.1 | 22.2 | 23 | 23.1 | 23.12 | 25.7 | 28.1 | 28.2 | 33.5 | 33.53 | 36.5 | 36.58 | 38.1 | 46.8 | 57

  • Barrel Outside Diameter (in) .346 | .468 | .53 | .531 | .64 | .641 | .688 | .69 | .759 | .87 | .874 | .905 | .909 | .91 | 1.01 | 1.1 | 1.11 | 1.31 | 1.32 | 1.43 | 1.44 | 1.5 | 1.84 | 2.24

  • Palm Hole Diameter  8 | 10 | 13 | 15 | 16 | 20

  • Compatible Conductor Range (AWG/kcmil) 1/0 – 1/0 | 1000 – 1000 | 1 – 1 | 1250 – 1250 | 1500 – 1500 | 2/0 – 2/0 | 2 – 2 | 250 – 250 | 3/0 – 3/0 | 300 – 300 | 350 – 350 | 4/0 – 4/0 | 4 – 4 | 500 – 500 | 600 – 600 | 6 – 6 | 750 – 750

  • Compatible Conductor Cross-Section Range (mm²) 13.3 | 21.2 | 33.6 | 42.4 | 53.5 | 67.4 | 85 | 107 | 127 | 152 | 177 | 253 | 304 | 380 | 507 | 633.3 | 760

Operation/Application

  • Power Component Application Type  Indoor | Outdoor | Underground

  • Compression Connector Product Type  Splice | Terminal Lug

Industry Standards

  • Compatible With Agency/Standards Products  UL

Product Availability

  • Product Availability  Americas

Other

  • Die Color Code  Black | Blue | Brown | Gray | Green | Olive | Pink | Ruby | Tan | White
