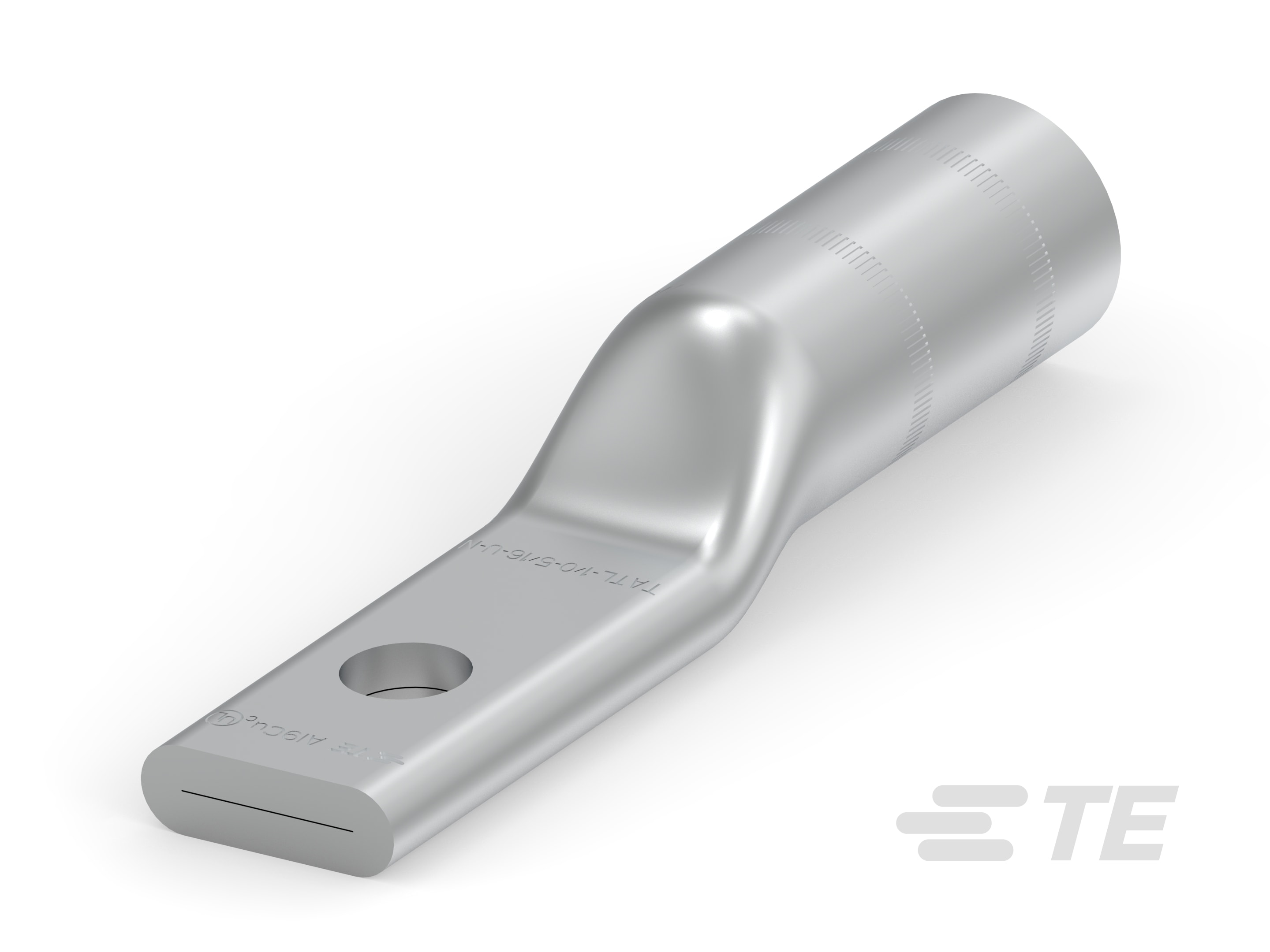

ALUMINUM COMPRESSION NARROW PALM LUGS

ALUMINUM COMPRESSION NARROW PALM LUGS-CAT-TATL-N
More Less
Connect with Us

Product Features

  • Product Availability : Americas

  • Installation Technology : Compression

  • Voltage Class (kV): ≤ 35

  • Compatible Conductor Material : Aluminum | Copper

  • Crimp Type : Compression Crimp

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Installation Technology  Compression

  • Stud Size  1/2 | 3/4 | 3/8 | 5/16 | 5/8 | 9/16

Configuration Features

  • Number of Holes  1 | 2

Electrical Characteristics

  • Voltage Class (kV) ≤ 35

Body Features

  • Compression Barrel Type  Long

  • Conductor Type  Stranded & Solid

  • Compatible Conductor Material  Aluminum | Copper

  • Primary Product Material  Aluminum

  • Palm Terminal Material  Aluminium

Contact Features

  • Crimp Type  Compression Crimp

Dimensions

  • Barrel Length (mm) 30 | 33 | 36.6 | 38.1 | 39.6 | 49.28 | 55.6 | 57.15 | 63.5 | 74.68 | 76.2 | 84.33 | 85.86 | 117.3 | 117.4

  • Barrel Length (in) 1.18 | 1.3 | 1.44 | 1.5 | 1.56 | 1.94 | 2.19 | 2.25 | 2.5 | 2.94 | 3 | 3.32 | 3.38 | 4.62

  • Lug Length (mm) 79.25 | 81.03 | 87.4 | 90.43 | 91.95 | 101.6 | 108.21 | 127.1 | 138.2 | 139.7 | 141 | 152.4 | 162.1 | 166.63 | 174.8 | 185.68 | 196.9 | 201.6 | 207 | 209.55 | 245.8 | 251.7

  • Lug Length (in) 3.12 | 3.19 | 3.44 | 3.56 | 3.62 | 4 | 4.26 | 5 | 5.44 | 5.5 | 5.55 | 6 | 6.38 | 6.56 | 6.88 | 7.31 | 7.8 | 7.94 | 8.15 | 8.25 | 9.68 | 9.91

  • Lug Width (mm) 18 | 19 | 25.4 | 27.3 | 29.4 | 33 | 36.3 | 42 | 46 | 58

  • Lug Width (in) .69 | .76 | 1 | 1.07 | 1.16 | 1.31 | 1.43 | 1.65 | 1.81 | 2.28

  • Barrel Inside Diameter (mm) 10.5 | 11.2 | 12.3 | 13.7 | 15.1 | 16.5 | 18.3 | 19.4 | 21.4 | 23.4 | 26.2 | 30.3 | 33.7 | 38

  • Barrel Inside Diameter (in) .413 | .44 | .484 | .539 | .594 | .649 | .72 | .763 | .842 | .921 | 1.03 | 1.19 | 1.32 | 1.49

  • Barrel Outside Diameter (mm) 16.26 | 17.53 | 19.3 | 22.1 | 23 | 25.7 | 28.1 | 30 | 33.53 | 36.58 | 38.1 | 46.8 | 57

  • Barrel Outside Diameter (in) .64 | .69 | .759 | .87 | .905 | 1.01 | 1.1 | 1.18 | 1.32 | 1.44 | 1.5 | 1.84 | 2.24

  • Palm Hole Diameter  8 | 10 | 13 | 15 | 16 | 20

  • Compatible Conductor Range (AWG/kcmil) 1/0 – 1/0 | 1000 – 1000 | 1250 – 1250 | 1500 – 1500 | 2/0 – 2/0 | 250 – 250 | 3/0 – 3/0 | 300 – 300 | 350 – 350 | 4/0 – 4/0 | 400 – 400 | 500 – 500 | 600 – 600 | 750 – 750

  • Compatible Conductor Cross-Section Range (mm²) 53.5 | 67.4 | 85 | 107 | 127 | 152 | 177 | 203 | 253 | 304 | 380 | 507 | 633.3 | 760

Operation/Application

  • Power Component Application Type  Indoor | Outdoor

  • Compression Connector Product Type  Terminal Lug

Industry Standards

  • Compatible With Agency/Standards Products  UL

Product Availability

  • Product Availability  Americas

Other

  • Die Color Code  Black | Blue | Brown | Gray | Green | Olive | Pink | Ruby | Tan | White

Reference Number

  • TE Internal Number CAT-TATL-N
