Overview

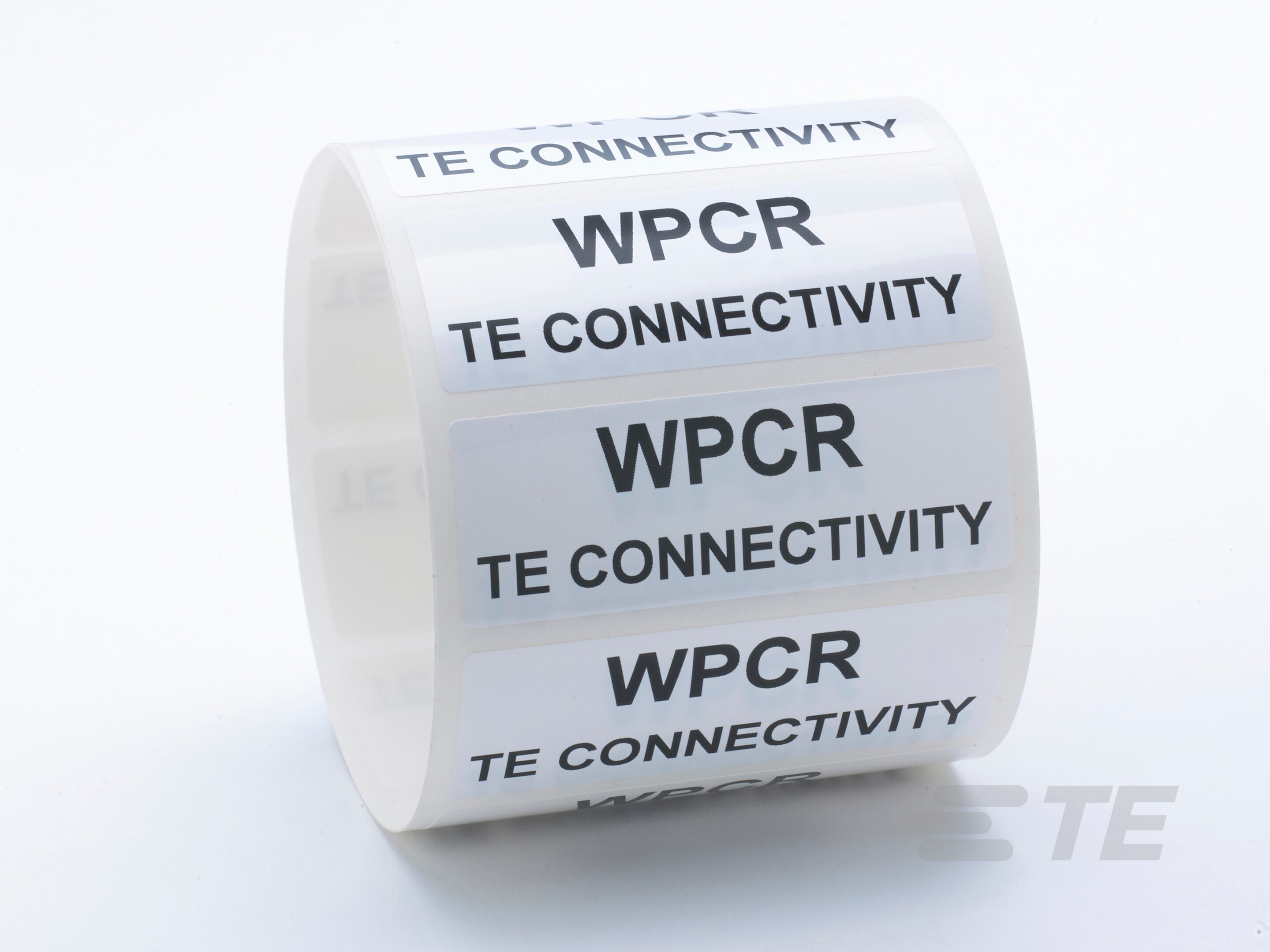

WPCR is a thermal transfer printable matte white chemical resistant label with a permanent acrylic adhesive. Designed with a special chemical resistant top coat that ‘locks in’ thermal transfer print to ensure clear identification even in the most demanding environments. The chemical resistant matte top coat ensures excellent heat resistance and dimensional stability. WPCR is excellent for bar coding and component labelling as well as general purpose labelling applications that require a high durability white label. Resistant to a variety of chemicals & solvents while maintaining print quality. The aggressive permanent acrylic adhesive and high tack, high shear characteristics of the WPCR labels can be used in a number of low surface energy applications for rating plates, rack and panel or labelling electronic devise and equipment.

Features and Benefits

  • Thermal transfer printable
  • Excellent chemical resistance
  • Resistant to abrasion
  • Special top coat locks in thermal transfer printing without adding a laminate
  • Excellent dimensional stability at elevated temperatures
  • Ideal for use on rating plates, rack and panel

Operating temperature range

-40oC to 135oC (-40°F to 275°F)

Label thickness

90μm (0.0039”)

Adhesive

Permanent Acrylic Adhesive

Specifications and approvals

  • ASTM D 903
  • ASTM D 2979
  • MIL-STD-202 Method 215
  • MIL-M-81531

Recommended hardware and software

Printer: TE3112 / TE3124
Ribbon: 1966-RIBBON
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-301

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Label Type  Industrial Label

Body Features

  • Primary Product Color  White

  • Primary Product Material  Polyester

Dimensions

  • Product Width (mm) 19.1, 25.4, 38.1, 50.8, 69.9, 76.2, 101.6

  • Product Width (in) .75, 1, 1.5, 2, 2.75, 3, 4

  • Product Height (mm) 6.4, 9.7, 11.4, 12.7, 19.1, 25.4, 31.8, 38.1, 63.5, 165.1

  • Product Height (in) .25, .38, .45, .5, .75, 1, 1.25, 1.5, 2.5, 6.5

Printer/Label Features

  • Number of Labels Across  1, 2, 3

  • Label Style  Die-Cut

  • Length of Label Roll (m) 31.66, 39.75, 42.33, 56.33, 60.75, 73.5, 87.25, 103.25, 143, 143.9, 166.75

  • Length of Label Roll (ft) 103.87, 130.41, 138.87, 184.8, 199.31, 241.14, 286.25, 338.74, 469.16, 472.11, 547.08

  • Label Thickness (Micron) 100

Packaging Features

  • Packaging Method  Roll

  • Packaging Quantity  850, 2500, 5000, 10000, 15000

Other

  • Label Adhesive Type  Permanent Acrylic Adhesive

Reference Number

  • TE Internal Number CAT-T3437-W919A
