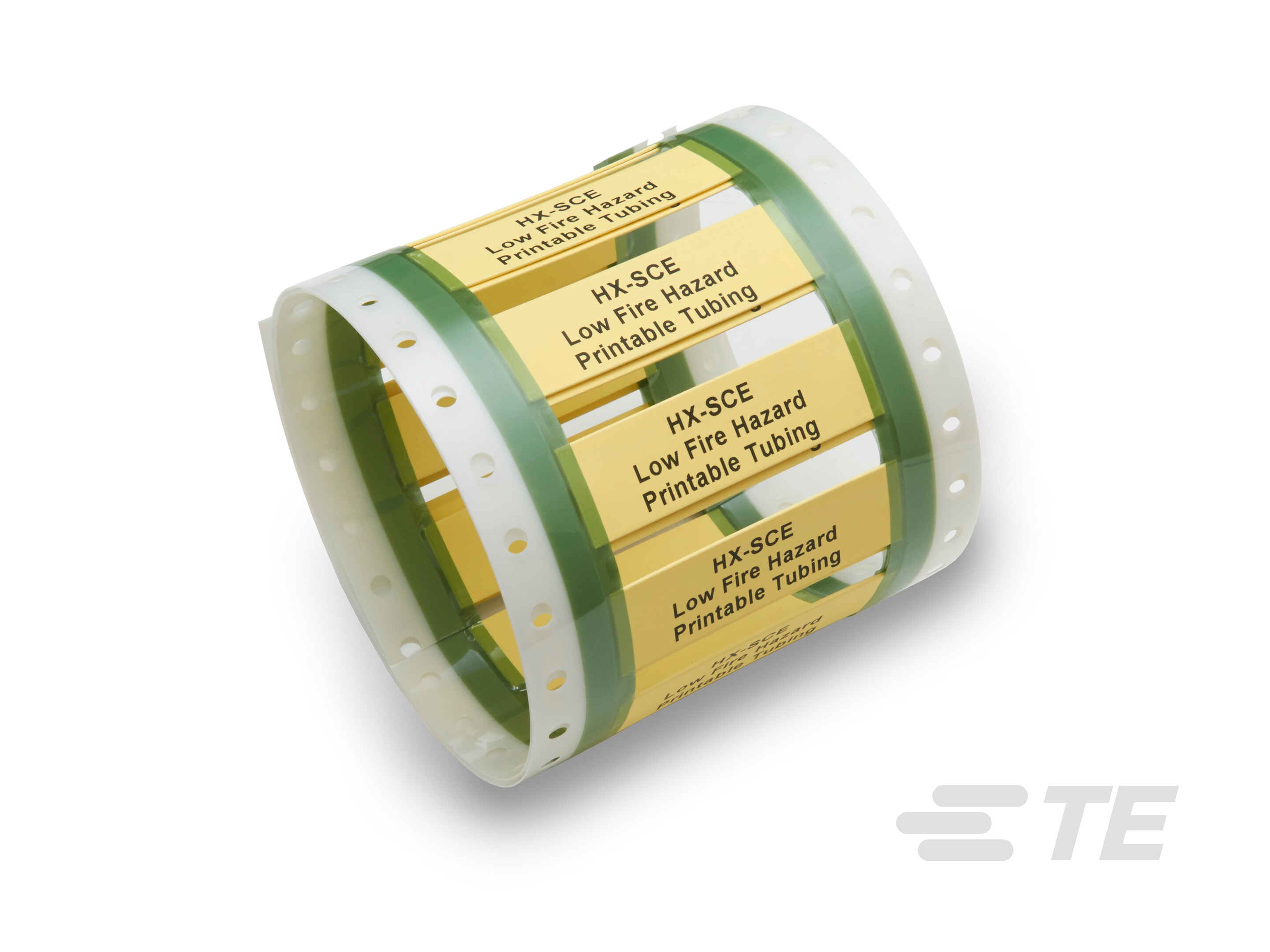

HX-SCE Low Fire Hazard Sleeves

HX-SCE

Thin walled, zero-halogen, low smoke/toxicity, radiation cross-linked, polyolefin heat-shrinkable tubing when limited fire hazard characteristics are necessary.

More Less

Datasheet |
Digital Datasheet|

Product Features

Printable Tubing Type: Ladder
Printable Tubing Grade: Low Fire Hazard
Shrink Ratio: 2:1

Available from

Product	TE Part #	Documents	Primary Product Color	Number of Prescores	Markers per Sleeve	Product Length	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Compatible Cable Diameter Range	Operating Temperature Range
HX-SCE-1K-3.2-50-S1-4 Buy on te.com	A19408-000	Product Drawing	Yellow	1	2	25.4 mm	3.2 mm	1.58 mm	1.77 – 2.66 mm	-55 – 105 °C
HX-SCE-1K-12.7-50-4 Buy on te.com	D15532-000	Product Drawing	Yellow	-	1	50 mm	12.7 mm	6.35 mm	6.99 – 10.79 mm	-55 – 105 °C
HX-SCE-1K-6.4-50-4 Buy on te.com	E66448-000	Product Drawing	Yellow	-	1	50 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 105 °C
HX-SCE-1K-12.7-50-9 Buy on te.com	A29688-000	Product Drawing	White	-	1	50 mm	12.7 mm	6.35 mm	6.99 – 10.79 mm	-55 – 105 °C
HX-SCE-1K-3.2-50-4 Buy on te.com	F18659-000	Product Drawing	Yellow	-	1	50 mm	3.2 mm	1.58 mm	1.77 – 2.66 mm	-55 – 105 °C
HX-SCE-1K-9.5-50-4 Buy on te.com	A95650-000	Product Drawing	Yellow	-	1	50 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 105 °C
HX-SCE-1K-4.8-50-9 Buy on te.com	F77737-000	Product Drawing	White	-	1	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 105 °C
HX-SCE-1K-25.4-50-S1-4 Buy on te.com	C51949-000	Product Drawing	Yellow	1	2	50.8 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 105 °C
HX-SCE-1K-3.2-50-S1-9 Buy on te.com	A34057-000	Product Drawing	White	1	2	25.4 mm	3.2 mm	1.58 mm	1.77 – 2.66 mm	-55 – 105 °C
HX-SCE-1K-4.8-50-4 Buy on te.com	D87851-000	Product Drawing	Yellow	-	1	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 105 °C
HX-SCE-1K-2.4-50-S1-9 Buy on te.com	A75939-000	Product Drawing	White	1	2	25.4 mm	2.4 mm	1.9 mm	1.27 – 1.9 mm	-55 – 105 °C
HX-SCE-38.1-50-S1-9 Buy on te.com	E50792-000	Product Drawing	White	1	2	25.4 mm	38.1 mm	19.1 mm	20.9 – 33 mm	-55 – 105 °C
HX-SCE-1K-2.4-50-9	F29905-000	Product Drawing	White	-	1	50 mm	2.4 mm	1.9 mm	1.27 – 1.9 mm	-55 – 105 °C
HX-SCE-1K-19.0-50-S1-4	F54891-000	Product Drawing	Yellow	1	2	25.4 mm	19 mm	9.5 mm	10.16 – 16.25 mm	-55 – 105 °C
HX-SCE-25.4-50-9	E58246-000	Product Drawing	White	-	1	50 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 105 °C
HX-SCE-38.1-50-4	E76198-000	Product Drawing	Yellow	-	1	50 mm	38.1 mm	19.1 mm	20.9 – 33 mm	-55 – 105 °C
HX-SCE-1K-25.4-50-4	E29886-000	Product Drawing	Yellow	-	1	50 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 105 °C
HX-SCE-38.1-50-9	F93526-000	Product Drawing	White	-	1	50 mm	38.1 mm	19.1 mm	20.9 – 33 mm	-55 – 105 °C
HX-SCE-1K-19.0-50-9	C97865-000	Product Drawing	White	-	1	50 mm	19 mm	9.5 mm	10.16 – 16.25 mm	-55 – 105 °C
HX-SCE-38.1-50-S1-4	A55157-000	Product Drawing	Yellow	1	2	25.4 mm	38.1 mm	19.1 mm	20.9 – 33 mm	-55 – 105 °C
HX-SCE-1K-19.0-50-4	A69169-000	Product Drawing	Yellow	-	1	50 mm	19 mm	9.5 mm	10.16 – 16.25 mm	-55 – 105 °C
HX-SCE-1K-9.5-50-9	A98991-000	Product Drawing	White	-	1	50 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 105 °C
HX-SCE-1K-6.4-50-9	D67949-000	Product Drawing	White	-	1	50 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 105 °C
HX-SCE-1K-4.8-50-S1-4	E72748-000	Product Drawing	Yellow	1	2	25.4 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 105 °C
HX-SCE-1K-4.8-50-S1-9	C04635-000	Product Drawing	White	1	2	25.4 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 105 °C
HX-SCE-1K-6.4-50-S1-4	F26167-000	Product Drawing	Yellow	1	2	25.4 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 105 °C
HX-SCE-1K-2.4-50-4	F02422-000	Product Drawing	Yellow	-	1	50 mm	2.4 mm	1.9 mm	1.27 – 1.9 mm	-55 – 105 °C
HX-SCE-2.5K-6.4-50-S1-4	F93116-000	Product Drawing	Yellow	1	2	16.94 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 105 °C
HX-SCE-1K-9.5-50-S1-4	C13218-000	Product Drawing	Yellow	1	2	25.4 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 105 °C
HX-SCE-2.5K-4.8-50-S1-4	F97343-000	Product Drawing	Yellow	1	2	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 105 °C
HX-SCE-1K-12.7-50-S1-4	A18003-000	Product Drawing	Yellow	1	2	25.4 mm	12.7 mm	6.35 mm	6.99 – 10.79 mm	-55 – 105 °C
HX-SCE-2.5K-6.4-50-4	C28032-000	Product Drawing	Yellow	-	1	50 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 105 °C
HX-SCE-2.5K-4.8-50-4	D14525-000	Product Drawing	Yellow	-	1	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 105 °C
HX-SCE-1K-3.2-50-9	E21108-000	Product Drawing	White	-	1	50 mm	3.2 mm	1.58 mm	1.77 – 2.66 mm	-55 – 105 °C
HX-SCE-5K-3.2-50-4	E14886-000	Product Drawing	Yellow	-	1	50 mm	3.2 mm	1.58 mm	1.77 – 2.66 mm	-55 – 105 °C
HX-SCE-5K-3.2-50-S1-4	F16068-000	Product Drawing	Yellow	1	2	50 mm	3.2 mm	1.58 mm	1.77 – 2.66 mm	-55 – 105 °C
HX-SCE-5K-4.8-50-S1-4	CP2380-000	Product Drawing	Yellow	1	2	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-40 – 105 °C
HX-SCE-1K-2.4-50-S1-4	E46987-000	Product Drawing	Yellow	1	2	25.4 mm	2.4 mm	1.9 mm	1.27 – 1.9 mm	-55 – 105 °C
HX-SCE-1K-25.4-50-9	C50936-000	Product Drawing	White	-	1	50 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 105 °C
HX-SCE-25.4-50-4	E64909-000	Product Drawing	Yellow	-	1	50 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 105 °C
HX-SCE-0.5K-38.1-50-4	EF9954-000	Product Drawing	Yellow	-	1	50 mm	38.1 mm	19.1 mm	19 – 30.48 mm	-40 – 105 °C
HX-SCE-2.5K-4.8-50-SS1-2	EM3184-000	Product Drawing	Red	1	2	50 mm	4.8 mm	2.3 mm	1.5 – 4.06 mm	-55 – 105 °C
HX-SCE-12.7-50-S1-4	F42475-000	Product Drawing	Yellow	1	2	29.64 mm	12.7 mm	6.35 mm	6.99 – 10.79 mm	-55 – 105 °C
HX-SCE-19.0-50-S1-4	F83400-000	Product Drawing	Yellow	1	2	42.34 mm	19 mm	9.5 mm	10.16 – 16.25 mm	-55 – 105 °C
HX-SCE-1K-12.7-50-S1-9	E24938-000	Product Drawing	White	1	2	25.4 mm	12.7 mm	6.35 mm	6.99 – 10.79 mm	-55 – 105 °C
HX-SCE-1K-19.0-50-S1-9	C09972-000	Product Drawing	White	1	2	25.4 mm	19 mm	9.5 mm	10.16 – 16.25 mm	-55 – 105 °C
HX-SCE-1K-25.4-50-S1-9	D47612-000	Product Drawing	White	1	2	50 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 105 °C
HX-SCE-1K-6.4-50-S1-9	C32003-000	Product Drawing	White	1	2	25.4 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 105 °C
HX-SCE-1K-9.5-50-S1-9	C44780-000	Product Drawing	White	1	2	25.4 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 105 °C
HX-SCE-25.4-50-S1-4	C43908-000	Product Drawing	Yellow	1	2	25.4 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 105 °C
HX-SCE-25.4-50-S1-9	C78033-000	Product Drawing	White	1	2	25.4 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 105 °C
HX-SCE-3.2-50-S1-4	E79969-000	Product Drawing	Yellow	1	2	12.7 mm	3.2 mm	1.58 mm	1.77 – 2.66 mm	-55 – 105 °C
HX-SCE-5K-2.4-50-4	A26794-000	Product Drawing	Yellow	-	1	12.7 mm	2.4 mm	1.19 mm	1.27 – 1.9 mm	-55 – 105 °C
HX-SCE-5K-3.2-50-S1-9	F37611-000	Product Drawing	White	1	2	12.7 mm	3.2 mm	1.58 mm	1.77 – 2.66 mm	-55 – 105 °C
HX-SCE-6.4-50-S1-4	F73684-000	Product Drawing	Yellow	1	2	16.94 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 105 °C
HX-SCE-9.5-50-S1-4	C55984-000	Product Drawing	Yellow	1	2	25.4 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 105 °C

Overview

HX-SCE thin walled, zero-halogen, low smoke, low toxicity, radiation cross-linked, polyolefin heat-shrinkable tubing, is assembled as cut sleeves organized in a ladder format. Ideal for applications where limited fire hazard characteristics are necessary. The zero halogen material coupled with low smoke and low toxic fume emissions make this product best used in enclosed spaces such as Mass Transit, Marine and Industrial applications. Supplied in a “ladder format”, sleeves are held horizontally between two polyester strips and offers ease of printing and kitting.

Features and benefits

Thermal transfer printable
Zero Halogen
Low Toxic Fumes
Low Smoke
Self-extinguishing, non-flame propagating
Excellent resistance to burning - Oxygen Index 39%
Resistant to key industrial and rail fluids
Excellent print permanence when tested in demanding industry related fluids
2:1 shrink ratio

Operating temperature range

-55^oC to 105^oC (-67^oF to 221^oF)

Specifications and approvals

EN45545-2 R22/R23/R24 HL3
BS 6853 Vehicle CAT 1A
NFPA130
NF F 16-101 Classification A1
London Underground 1-085

Recommended hardware and software

Printer: T200-IDENT / TE3112 / TE3124 / T6112DS
Ribbon: 1966-RIBBON
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-108
Product Specification Sheet: RW-2072

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Printable Tubing Type Ladder
Printable Tubing Grade Low Fire Hazard

Body Features

Shrink Ratio 2:1
Primary Product Color Red, White, Yellow
Markers per Sleeve 1, 2

Dimensions

Product Length (mm) 12.7, 16.94, 25.4, 29.64, 42.34, 50, 50.8
Product Length (in) .5, .667, 1, 1.167, 1.667, 2
Expanded Inside Diameter (Min) (mm) 2.4, 3.2, 4.8, 6.4, 9.5, 12.7, 19, 25.4, 38.1
Expanded Inside Diameter (Min) (in) .094, .126, .189, .25, .375, .5, .75, 1, 1.5
Recovered Inside Diameter (Max) (mm) 1.19, 1.58, 1.9, 2.3, 2.36, 3.18, 4.7, 6.35, 9.5, 12.7, 19.1
Recovered Inside Diameter (Max) (in) .047, .06, .09, .093, .125, .187, .25, .375, .5, .75
Compatible Cable Diameter Range (mm) 1.27 – 1.9, 1.5 – 4.06, 1.77 – 2.66, 2.54 – 4.06, 3.81 – 5.46, 5.5 – 8.1, 6.99 – 10.79, 10.16 – 16.25, 14.29 – 21.59, 19 – 30.48, 20.9 – 33
Compatible Cable Diameter Range (in) .044 – .105, .05 – .075, .069 – .105, .1 – .16, .15 – .215, .22 – .32, .275 – .425, .4 – .64, .563 – .85, .75 – 1.2, .825 – 1.3

Usage Conditions

Operating Temperature Range (°C) -55 – 105, -40 – 105
Operating Temperature Range (°F) -67 – 221, -40 – 221

Printer/Label Features

Number of Prescores 1
Printer Technology Thermal Transfer

Packaging Features

Packaging Quantity 250, 500, 1000, 2500, 5000

Reference Number

TE Internal Number CAT-T3437-H99
