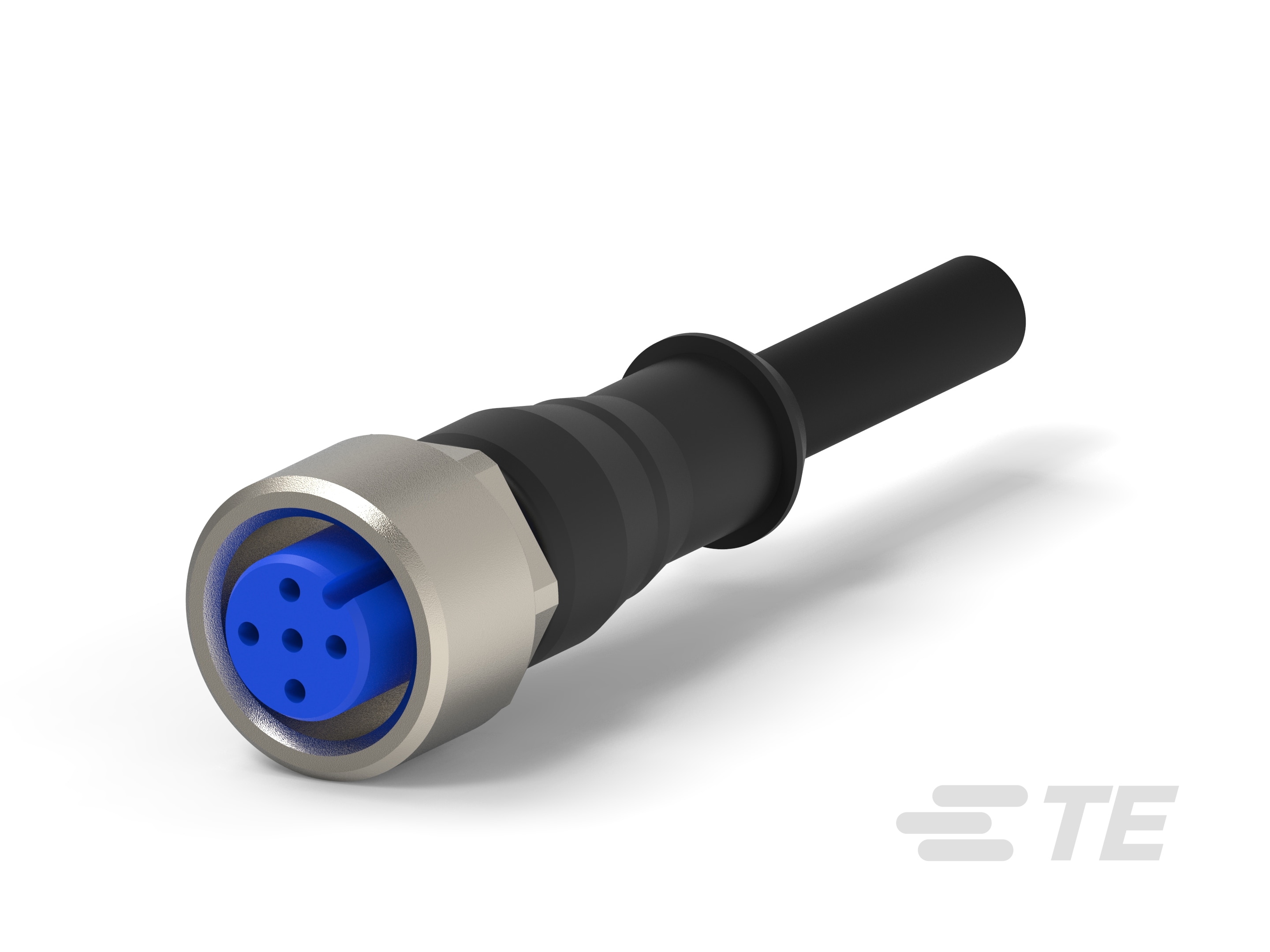

M12 A-Code Pigtail, Female, Straight

Please review product documents or contact us for the latest agency approval information.

• Cable Assembly Type  M12 Pigtail

• Cable Assembly (End A)  M12 Socket

• Configuration Number  A

• Number of Positions  3 | 4 | 5 | 8

• Operating Voltage (VDC) 30 | 60 | 125 | 250

• Operating Voltage (VAC) 30 | 60 | 125 | 250

• Jacket Material  PUR | PVC

• Connector Color (End A)  Black | Blue

• Wire Color (Base)  Brown, Blue, Black | Brown, White, Black, Blue | Brown, White, Blue, Black | Brown, White, Blue, Black, Gray | Brown, White, Blue, Black, Gray, Pink, Violet, Orange

• Cable Color  Black | Gray

• Connector & Keying Code  A

• Contact Current Rating (Max) (A) 2 | 4

• Thread Size  M12

• Connector Orientation (End A)  Straight

• Housing Material  Plastic

• Outside Cable Diameter (in) .161 | .181 | .196 | .204 | .23 | .236 | .275

• Outside Cable Diameter (mm) 4.3 | 4.6 | 5 | 5.2 | 5.9 | 6 | 7

• Outside Cable Diameter (in) .161 | .181 | .196 | .204 | .23 | .236 | .275

• Wire Size (AWG) 22 | 24

• Wire Size (mm²) .205 | .326

• M8/M12 Application Type  Sensor/Actuator

• Shielded  No | Yes

• Packaging Method  Box

• Packaging Quantity  25

• Field Serviceable  Yes

• Cable Assembly Length (m) 1.5 | 3 | 5 | 10

• Cable Assembly Length (ft) 4.9 | 9.8 | 16.4 | 32.8

• Cable Assembly Configuration  Single Ended
