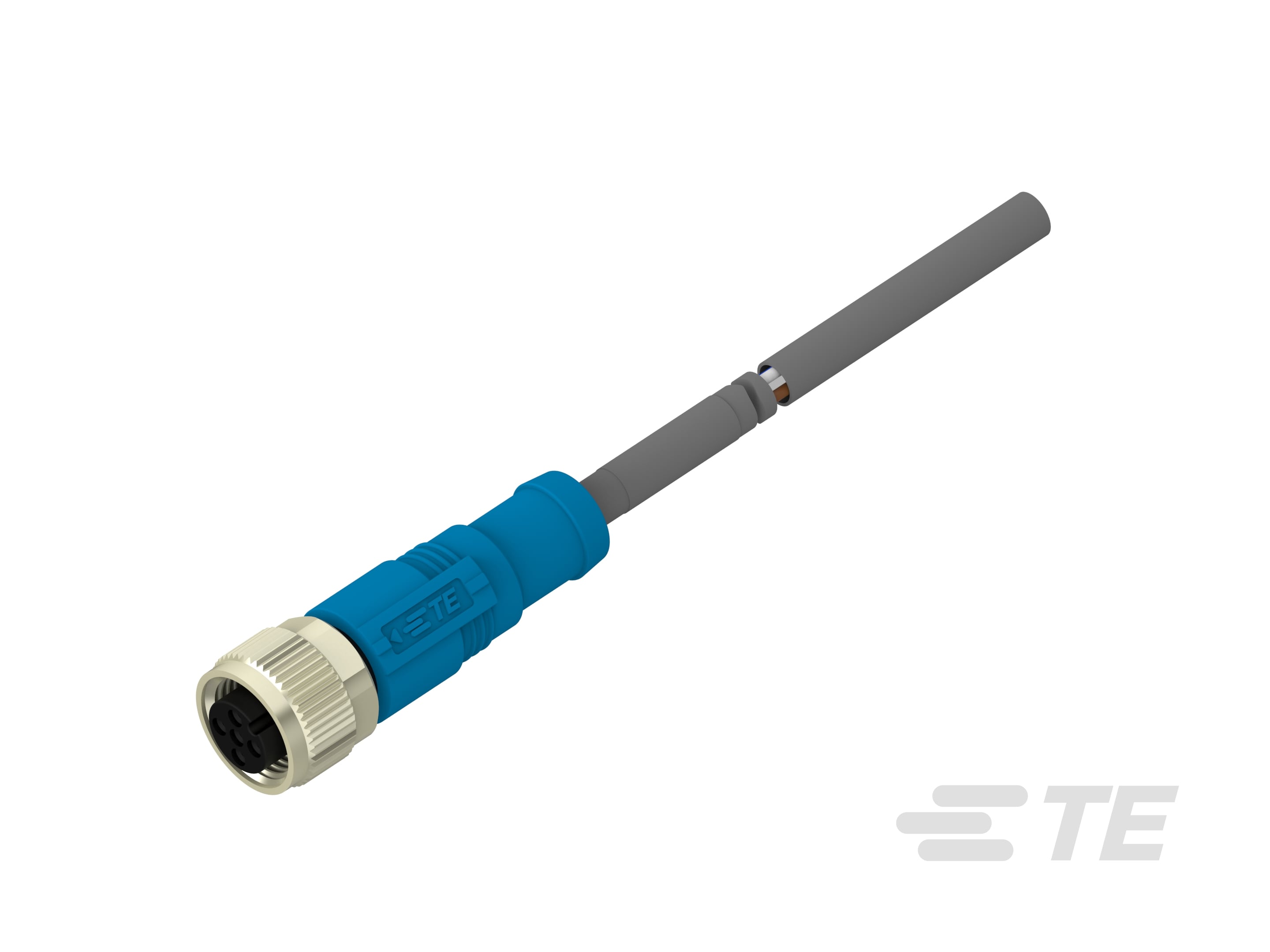

M12 A-Code Pigtail, Female, Straight, Single End Cable

M12 A-Code Pigtail, Female, Straight, Single End Cable-CAT-SE594-M1FF
Our M12 A-code Female Straight Pigtails are offered in 2 up to 8 positions, in PUR/PVC, Shielded & non-shielded cables, up to 10m length.
More Less
Connect with Us

Product Features

  • Cable Assembly Type : M12 Pigtail

  • Number of Positions : 2 | 3 | 4 | 5 | 8

  • Cable Assembly Length (m): .5 | 1 | 1.5 | 3 | 5 | 7 | 10

  • Cable Assembly Length (ft): 1.6 | 3.2 | 4.9 | 9.8 | 16.4 | 22.9 | 32.8

  • M8/M12 Application Type : Sensor/Actuator

  • Connector & Keying Code : A

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Cable Assembly Type  M12 Pigtail

  • Cable Assembly (End A)  M12 Socket

Configuration Features

  • Number of Positions  2 | 3 | 4 | 5 | 8

Electrical Characteristics

  • Operating Voltage (VDC) 30 | 60 | 250

  • Operating Voltage (VAC) 30 | 60 | 250

Body Features

  • Conductor Material  Copper Alloy

  • Jacket Material  PUR | PVC

  • Connector Color (End A)  Black

  • Wire Color (Base)  Brown, Blue, Black | Brown, White, Blue, Black, Gray

  • Cable Color  Black | Gray

  • Connector & Keying Code  A

Contact Features

  • Contact Current Rating (Max) (A) 4

Mechanical Attachment

  • Thread Size  M12

  • Connector Orientation (End A)  Straight

Housing Features

  • Housing Material  Nylon GF

Dimensions

  • Outside Cable Diameter  6 mm [ .236 in ]

  • Wire Size (AWG) 22

  • Wire Size (mm²) .326

Usage Conditions

  • Operating Temperature Range  -40 – 80 °C [ -40 – 176 °F ]

Operation/Application

  • M8/M12 Application Type  Sensor/Actuator

  • Shielded  No | Yes

Industry Standards

  • IP Rating  IP67

Packaging Features

  • Packaging Method  Bag | Box

  • Packaging Quantity  1 | 2

Other

  • Field Serviceable  Yes

  • Cable Assembly Length (m) .5 | 1 | 1.5 | 3 | 5 | 7 | 10

  • Cable Assembly Length (ft) 1.6 | 3.2 | 4.9 | 9.8 | 16.4 | 22.9 | 32.8

  • Cable Assembly Configuration  Single Ended

Reference Number

  • TE Internal Number CAT-SE594-M1FF
