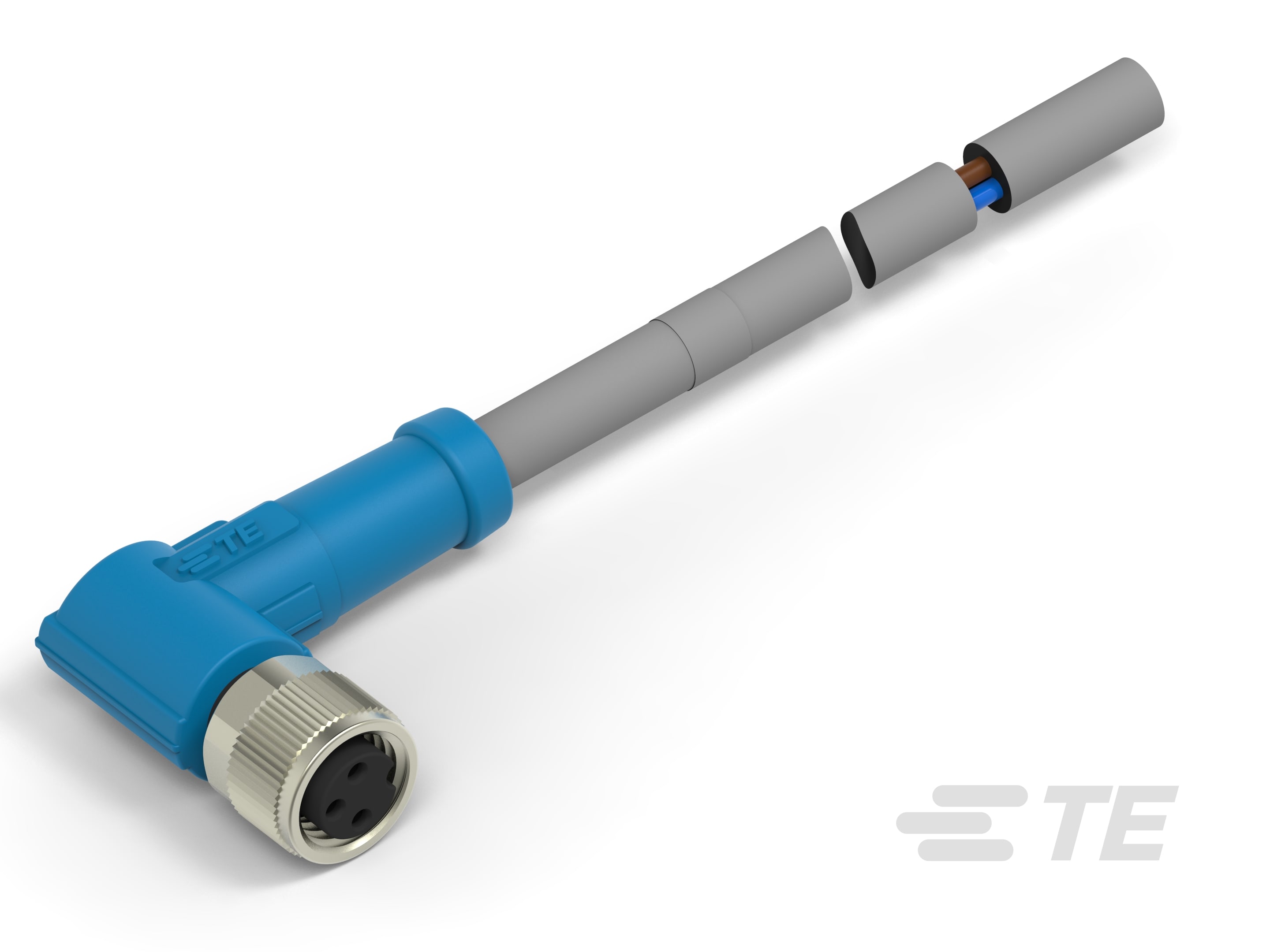

M8 Female R/A Single Ended Cable Assembly

M8 Female R/A Single Ended Cable Assembly-CAT-SE594-M1
Our M8 Female Right Angle Single Ended Assemblies are offered in 3,4 positions, PUR/PVC, Shielded & non-shielded cables, up to 10m length.
More Less
Connect with Us

Product Features

  • Cable Assembly Length (m): .5 | 1 | 1.5 | 3 | 5 | 7 | 10

  • Cable Assembly Length (ft): 1.6 | 3.2 | 4.9 | 9.8 | 16.4 | 22.9 | 32.8

  • M8/M12 Application Type : Sensor/Actuator

  • Number of Positions : 3 | 4

  • Connector & Keying Code : A

  • Cable Assembly Type : M8 Pigtail

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Cable Assembly Type  M8 Pigtail

  • Cable Assembly (End A)  M8 Socket

Configuration Features

  • Number of Positions  3 | 4

Electrical Characteristics

  • Operating Voltage (VAC) 30 | 60

Body Features

  • Conductor Material  Copper Alloy

  • Wire Color (Base)  Brown, Blue, Black | Brown, White, Blue, Black

  • Jacket Material  PUR | PVC

  • Connector Color (End A)  Black

  • Cable Color  Black | Gray

  • Connector & Keying Code  A

Contact Features

  • Contact Current Rating (Max) (A) 3

Mechanical Attachment

  • Thread Size  M8

  • Connector Orientation (End A)  Right Angle

Housing Features

  • Housing Material  Nylon | PA66+25GF

Dimensions

  • Wire Size (AWG) 24

  • Wire Size (mm²) .25

Operation/Application

  • M8/M12 Application Type  Sensor/Actuator

  • Shielded  No | Yes

Other

  • Cable Assembly Length (m) .5 | 1 | 1.5 | 3 | 5 | 7 | 10

  • Cable Assembly Length (ft) 1.6 | 3.2 | 4.9 | 9.8 | 16.4 | 22.9 | 32.8

  • Cable Assembly Configuration  Single Ended

Reference Number

  • TE Internal Number CAT-SE594-M1
