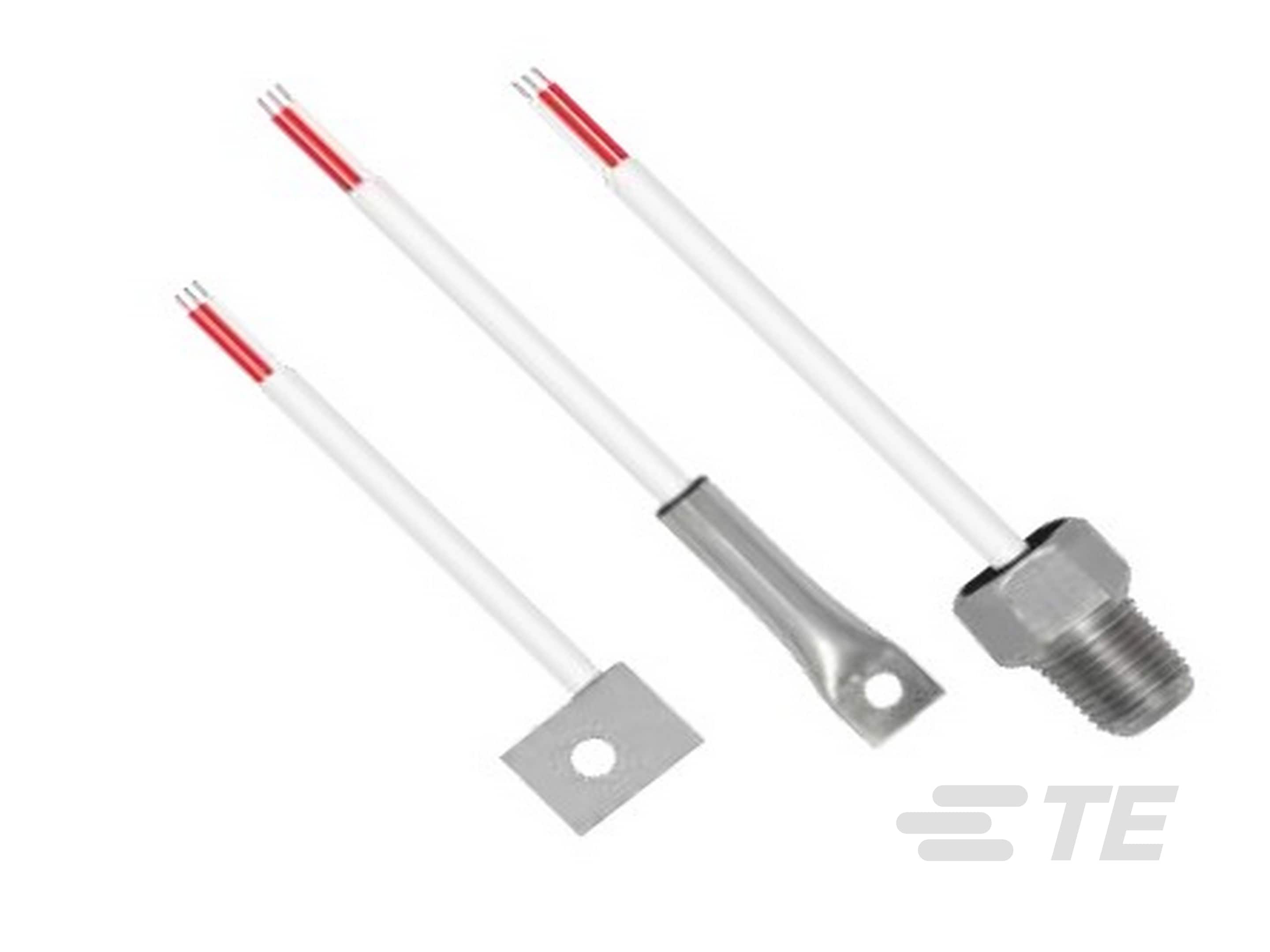

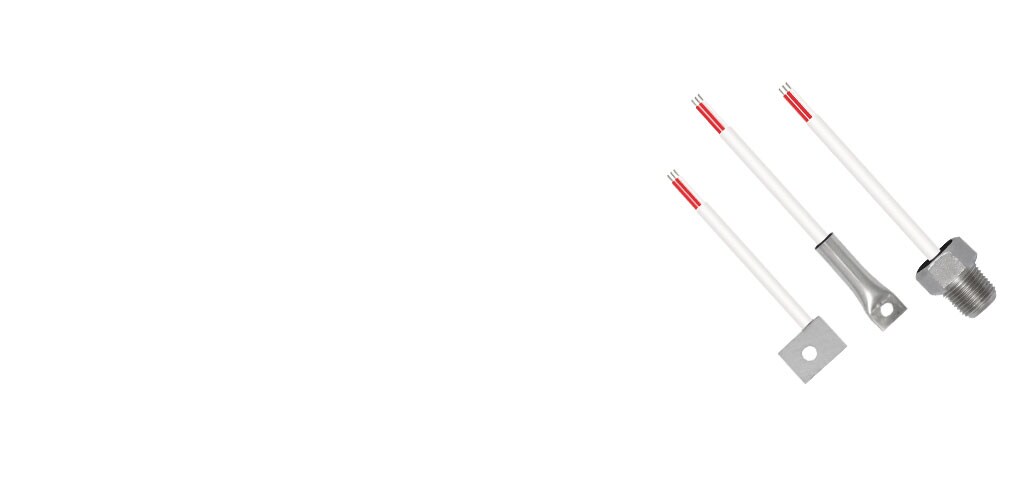

Bolt-On Stainless RTD, CTO Mod 623M
Product Features
-
RTD Sensor Type : Bolt-On Probe
-
Element Type : Thin Film
-
Element Material : Platinum
-
Lead Wire Style : PTFE Conductors With TFE Jacket | PTFE Insulated | Standard PTFE With Braided Shield
-
Operating Temperature (Max) : 250 °C [ 482 °F ]
The 623M series bolt-on RTD probe sensor is a small multi-dimensional sensor for use in applications requiring retro fitting or where limited space is a factor.
These adaptable RTD probe sensors are typically mounted to an available hole that is threaded close to the desired temperature location and features simple installation. All configurations can be customized for your application.
Benefits
- Bolt-On Styles: Threaded Bolt, Tube, Flat Rectangular
- Elements, Single: Platinum, Nickel
- Leadwire/Cable Options
- Simple Installation
- Retro Fitting
Applications
- Process
- Aerospace
- Defense
- Electric Motors
- Generators
Frequently Asked Questions
Q: What is an RTD?
A: An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as the temperature of the sensor increases. The resistance versus temperature relationship is well known and is repeatable over time. An RTD is a passive device. It does not produce an output on its own. External electronic devices are used to measure the resistance of the sensor by passing a small electrical current through the sensor to generate a voltage.
Read More: Understanding RTDs
Q: What is the standard resistance of a platinum RTD?
A: Download the PDF: RTD Resistance Temperature Table Application Note
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Connection Head Type None
-
Resistance Tolerance @ Reference Temperature 1000 Ohm ±.12% at 0°C | 100 Ohm ±.12% at 0°C | 100 Ohm ±.5% at 0°C
-
Housing Style Flat Rectangular Mount | Threaded Bolt | Tube Style w/ Flat Mount
-
RTD Sensor Type Bolt-On Probe
-
Element Type Thin Film
-
Element Material Platinum
-
Lead Wire Style PTFE Conductors With TFE Jacket | PTFE Insulated | Standard PTFE With Braided Shield
Configuration Features
-
Lead Wire Configuration 2 Wire Single (Red / White) | 3 Wire Single (Red / White / White)
Dimensions
-
Lead Wire Length (mm) 914.4 | 1016
-
Lead Wire Length (in) 36 | 40
-
Wire Size (AWG) 26
Usage Conditions
-
Temperature Coefficient (Ω/°C) .00385
-
Operating Temperature (Max) 250 °C [ 482 °F ]
Other
-
Sheath Style Standard Stainless Steel
Datasheets & Catalog Pages
- TESS-ANDO-408-DS0041 English
