Polyimide/FEP Heavy Duty Surface RTD Sensor
The 322M model polyimide surface RTD sensor is a flat, flexible, rectangular sensor with a sensing element laminated in polyimide. These sensors can be used to monitor or measure temperature on round or uneven surfaces. For motor and generator applications, they are commonly used in the end turns of the windings. This product is configurable, please refer to the datasheet for detailed options.
Product Features
-
RTD Sensor Type : FEP Laminate | Polyimide Laminate
-
Element Type : Wire Wound
-
Element Material : Platinum
-
Lead Wire Style : PTFE Insulated
-
Operating Temperature (Max) : 200 °C [ 392 °F ]
Overview
Applications

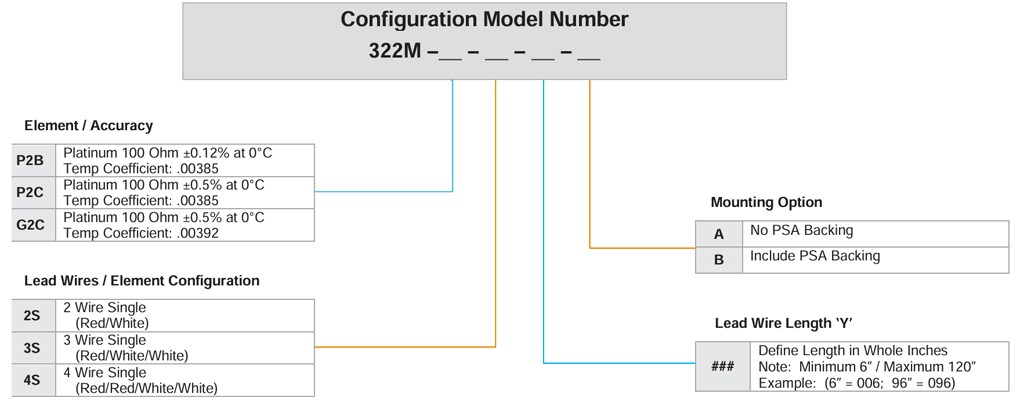

part number configuration for the 322M Polyimide/FEP heavy duty RTD sensor
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Connection Head Type None
-
Resistance Tolerance @ Reference Temperature 100 Ohm ±.12% at 0°C | 100 Ohm ±.5% at 0°C
-
RTD Sensor Type FEP Laminate | Polyimide Laminate
-
Element Type Wire Wound
-
Element Material Platinum
-
Lead Wire Style PTFE Insulated
Configuration Features
-
Lead Wire Configuration 2 Wire Single (Red / White) | 3 Wire Single (Red / White / White) | 4 Wire Single (Red / Red / White / White)
Mechanical Attachment
-
Sensor Mount Type PSA Backing
Dimensions
-
Body Length 31.75 mm [ 1.25 in ]
-
Lead Wire Length (mm) 914.4 | 1828.8 | 2438.4
-
Lead Wire Length (in) 36 | 72 | 96
-
Wire Size (AWG) 26
-
Body Thickness 1.52 mm [ .06 in ]
-
Body Width 12.7 mm [ .5 in ]
Usage Conditions
-
Temperature Coefficient (Ω/°C) .00385 | .00392
-
Operating Temperature (Max) 200 °C [ 392 °F ]
