View products below to see detailed pricing

Screened Separable Connectors 1250 A

RAYCHEM

RAYCHEM RSTI

Our TE Raychem RSTI Screened Separable Connectors for bushing type C (EN50181) are designed to connect underground cables to electrical equipment such as RMU's, switchgear and transformers up to 42 kV / 1250 A.

More Less

Image Gallery |
Documents |

Connect with Us

Product Features

Product Availability : Americas | Asia | Australia, New Zealand & Pacific Islands | Europe, Middle East & Africa | Worldwide
Installation Instruction : Bulgarian | Croatian | Czech | Dutch | English | Estonian | Finnish | Flemish | French | German | Hebrew | Hungarian | Italian | Lithuanian | Norwegian | Polish | Portuguese | Romanian | Russian | Slovak | Slovenian | Spanish | Swedish
Installation Technology : Wedge & Contact Ring | Shear Bolt | Mechanical
Voltage Class (kV): ≤ 12 | ≤ 36 | ≤ 42 | ≤ 24
Bushing Type : 1250A | 630A | 630A/1250A | Size 2 | Size 3

Available from

Product	TE Part #	Documents	Product Availability	Installation Instruction	Installation Technology	Voltage Class	Bushing Type	Cable Shield Style	Compatible Conductor Material	Compatible Conductor Diameter Range	Insulation Material	Compatible Insulation Diameter Range	Number of Cores	Screened	Compatible Conductor Cross-Section Range	EU RoHS Compliance	EU ELV Compliance
RSTI-5851	CM0009-076	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Lithuanian, Russian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	Polymeric	12.7 – 23.4 mm	1	Screened	25 – 70 mm², 35 – 95 mm²	-	-
RSTI-5853	CM0011-014	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Hungarian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	17 – 30.1 mm	1	Screened	95 – 185 mm², 95 – 240 mm²	-	-
RSTI-CC-5854	CM0097-025	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Finnish	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.3 – 34.6 mm	1	Screened	95 – 240 mm²	-	-
RSTI-5853	CM0011-007	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Italian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	17 – 30.1 mm	1	Screened	95 – 185 mm², 95 – 240 mm²	-	-
RSTI-5854	CM0012-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.2 – 34.6 mm	1	Screened	95 – 240 mm², 150 – 240 mm²	-	-
RSTI-5854	CM0012-073	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Estonian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.2 – 34.6 mm	1	Screened	95 – 240 mm², 150 – 240 mm²	-	-
RSTI-5855	CM0013-007	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Italian	Shear Bolt	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	XLPE/EPR	21.2 – 34.6 mm	-	-	Screened	185 – 300 mm²	-	-
RSTI-CC-5851	CM0094-025	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Finnish	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	12.7 – 23.4 mm	1	Screened	35 – 70 mm²	-	-
RSTI-5854	CM0012-013	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Czech	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.2 – 34.6 mm	1	Screened	95 – 240 mm², 150 – 240 mm²	-	-
RSTI-3953	CR6077-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Shear Bolt	≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	XLPE/EPR	34 – 45.4 mm	-	-	Screened	630 mm²	-	-
RSTI-5854	CM0012-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.2 – 34.6 mm	1	Screened	95 – 240 mm², 150 – 240 mm²	-	-
RSTI-5855	CM0013-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.2 – 34.6 mm	1	Screened	185 – 300 mm²	-	-
RSTI-5853	CM0011-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	17 – 30.1 mm	1	Screened	95 – 185 mm², 95 – 240 mm²	-	-
RSTI-6953	CR6087-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	39.1 – 59 mm	1	Screened	800 mm²	-	-
RSTI-CC-6853	CR7866-007	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 42 mm	1	Screened	150 – 240 mm²	-	-
RSTI-CC-6852	CR7867-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	22.4 – 35.5 mm	1	Screened	95 – 120 mm²	-	-
RSTI-6855	CR5012-047	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Portuguese	Shear Bolt	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	XLPE/EPR	28.9 – 42 mm	-	-	Screened	185 – 300 mm²	-	-
RSTI-CC-3952	CS8875-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 36.4 mm	1	Screened	500 mm²	-	-
RSTI-5854	CM0012-014	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Hungarian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.2 – 34.6 mm	1	Screened	95 – 240 mm², 150 – 240 mm²	-	-
RSTI-5853	CM0011-018	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Dutch, Flemish, French	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	17 – 30.1 mm	1	Screened	95 – 185 mm², 95 – 240 mm²	-	-
RSTI-6952	CR6078-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	39.1 – 59 mm	1	Screened	500 – 630 mm²	-	-
RSTI-5953	CR6084-007	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Italian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	39.1 – 59 mm	1	Screened	630 mm²	-	-
RSTI-5953	CR6084-018	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Flemish	Shear Bolt	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	XLPE/EPR	39.1 – 59 mm	-	-	Screened	630 mm²	-	-
RSTI-6856	CR6115-000	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 42 mm	1	Screened	240 – 400 mm²	-	-
RSTI-CC-5854	CM0097-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.3 – 34.6 mm	1	Screened	95 – 240 mm²	-	-
RSTI-5954	CR6080-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	39.1 – 59 mm	1	Screened	800 mm²	-	-
RSTI-CC-5851-01	CN7924-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Tape	Aluminum, Copper	-	-	Polymeric	12.7 – 23.4 mm	1	Screened	35 – 70 mm²	-	-
RSTI-5854	CM0012-072	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Slovenian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	21.2 – 34.6 mm	1	Screened	95 – 240 mm², 150 – 240 mm²	-	-
RSTI-6953	CR6087-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	39.1 – 59 mm	1	Screened	800 mm²	-	-
RSTI-6853	CR5011-015	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Croatian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 42 mm	1	Screened	120 – 240 mm²	-	-
RSTI-CC-6855	CR7868-007	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 42 mm	1	Screened	185 – 300 mm²	-	-
RSTI-CC-6855	CR7868-047	Product Drawing	Asia, Europe, Middle East & Africa	-	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 36.4 mm	1	Screened	400 mm²	-	-
RSTI-CC-5951	CS8880-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	34 – 45.4 mm	1	Screened	400 mm²	-	-
RSTI-CC-6951	CS8881-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	34 – 45.4 mm	1	Screened	400 mm²	-	-
RSTI-CC-3954	CS8884-000	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	34 – 45.4 mm	1	Screened	800 mm²	-	-
RSTI-CC-6952	CS8873-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	39.1 – 59 mm	1	Screened	500 – 630 mm²	-	-
RSTI-CC-5951	CS8880-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	34 – 45.4 mm	1	Screened	400 mm²	-	-
RSTI-CC-5851	CM0094-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	12.7 – 23.4 mm	1	Screened	35 – 70 mm²	-	-
RSTI-5951	CR6082-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	34 – 45.4 mm	1	Screened	400 mm²	-	-
RSTI-CC-6851	CR7869-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	22.4 – 35.5 mm	1	Screened	35 – 95 mm²	-	-
RSTI-6855	CR5012-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 42 mm	1	Screened	185 – 300 mm²	-	-
RSTI-CC-6851	CR7869-007	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	22.4 – 35.5 mm	1	Screened	35 – 95 mm²	-	-
RSTI-6851	CR4949-018	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Flemish, French	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	22.4 – 35.5 mm	1	Screened	35 – 95 mm²	-	-
RSTI-CC-6952	CS8873-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	39.1 – 59 mm	1	Screened	500 – 630 mm²	-	-
RSTI-6855	CR5012-017	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English, Hebrew	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 42 mm	1	Screened	185 – 300 mm²	-	-
RSTI-5855-OM01	ES2777-000	Product Drawing	Asia, Europe, Middle East & Africa	-	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 36.4 mm	1	Screened	400 mm²	-	-
RSTI-3953	CR6077-000	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	34 – 45.4 mm	1	Screened	630 mm²	-	-
RSTI-6853-02-MA01	ES4082-000	Product Drawing	Asia, Europe, Middle East & Africa	-	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 36.4 mm	1	Screened	400 mm²	-	-
RSTI-6853	CR5011-017	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	English, Hebrew	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 42 mm	1	Screened	120 – 240 mm²	-	-
RSTI-6855	CR5012-007	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	Aluminum, Copper	-	-	Polymeric	28.9 – 42 mm	1	Screened	185 – 300 mm²	-	-

Overview

Our Raychem RSTI Screened Separable Connectors feature a compact design to fit in tight installation spaces, are fully shielded, submersible and available with optional test points.

Our Raychem RSTI Screened Separable Connectors are designed to connect single and three-core polymeric cables to medium voltage gas insulated switchgear and other equipment using bushings Type “C” (EN 50180/EN 50181), specified for 630/1250A up to 42 kV. Made of a highly modified silicone rubber and protected by a thin-walled outer conductive screen connected to the earth, these screened separable connectors are equally suited for indoor and outdoor installation. Supporting a wide application range, the design incorporates one body and two stress cone adapters to cover all cross-sections from 25 to 1000 mm². The overall and cut-back dimensions are designed to take up minimum space in the terminal box. These connectors are equipped with a capacitive test point for determining whether the circuit is energized. This test point is protected by a conductive cap. After cable preparation and lubrication, the stress control adapter is simply slid into place, followed by the screened connector body. These two components can be installed under virtually any conditions. A separable mounting system ensures easy installation of the connector onto the bushing. All kits include high-performance multi-range mechanical or DIN compression lugs matching the design of the screened separable connectors.

Learn more about our new generation of screened separable connectors: RSTI with Voltage Sensor

Key Features

Very compact design to fit easily in compact switchgears
Range-taking connectors support a wide range of applications, cable types and sizes
Screened connector does not need to be removed for over sheath testing
Wide application range covers cable cross-sections from 35 to 1000 mm²
Easy access rear plug with capacitive test point
Insulation made of highly modified silicone rubber
High accuracy for reliable power quality applications (RSTI-VS)
Inherent safety thanks to total galvanic isolation from high voltage (RSTI-VS)
Simple connection as no auxiliary power supply is needed due to passive components (RSTI-VS)
Factory-calibrated thus no need for on-site calibration (RSTI-VS)

Separable Connectors with Voltage Sensor

Improving Grid Reliability

with Raychem RSTI-VS separable connector with voltage sensor, now compatible with Kries’ grid monitoring device IKI-50.

Applications

View All TE's Raychem Separable Connectors

View All TE's Raychem Separable Connectors
Our Separable Connectors are engineered to optimize performance and solve your switchgear and transformer connection challenges in IEC, IEEE and GB/T power grids.

FAQ

Frequently Asked Questions

Question: Does TE offer Screened Separable Connectors for cables up to 1000mm²?

Answer: Yes, our Raychem Screened Separable Connectors cover large cables cross-sections from 35 to 1000 mm² for both copper or aluminum conductors.

Question: Are the Screened Separable Connectors suitable for copper class 5 /flexible cables?
Answer: Yes, our Screened Separable Connectors include compression and shear bolt lugs that are compatible with flexible copper cables.

Question: Does TE offer test accessories?

Answer: Yes, we can offer test rods and earthing adapters.

Question: Which voltage range do Screened Separable Connectors cover?

Answer: Our Screened Separable Connectors are rated for 33 kV and 42 kV.

Question: Are the Screened Separable Connectors suitable for offshore environments?

Answer: Yes, our Screened Separable Connectors can be used in both onshore and offshore wind farm environments since they are made of modified silicone rubber which ensures high performance even under broad temperature changes, high humidity and salinity. Additionally, they have the DNV GL certification for marine and offshore applications.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Installation Technology Wedge & Contact Ring | Shear Bolt | Mechanical
Bushing Type 1250A | 630A | 630A/1250A | Size 2 | Size 3
Cable Shield Style Copper Tape | Copper Wire
Screened Screened

Configuration Features

Number of Cores 1 | 3

Electrical Characteristics

Voltage Class (kV) ≤ 12 | ≤ 36 | ≤ 42 | ≤ 24

Body Features

Compatible Conductor Material Aluminum | Copper
Insulation Material Polymeric | XLPE/EPR

Dimensions

Compatible Conductor Diameter Range (mm) 7 – 32 | 7 – 24.6
Compatible Conductor Diameter Range (in) .275 – 1.25 | .275 – .968
Compatible Insulation Diameter Range (mm) 12.7 – 23.4 | 17 – 30.1 | 21.2 – 34.6 | 21.3 – 34.6 | 22.4 – 35.5 | 28.9 – 42 | 28.9 – 36.4 | 34 – 45.4 | 39.1 – 59 | 45 – 47.4 | 48.4 – 54.3
Compatible Insulation Diameter Range (in) .5 – .92 | .66 – 1.18 | .83 – 1.36 | .88 – 1.39 | 1.13 – 1.65 | 1.13 – 1.43 | 1.33 – 1.78 | 1.53 – 2.32 | 1.77 – 1.86 | 1.9 – 2.13
Compatible Conductor Cross-Section Range (mm²) 25 – 95 | 25 – 70 | 35 – 70 | 35 – 95 | 50 | 95 – 240 | 95 – 150 | 95 – 185 | 95 – 120 | 120 – 240 | 150 – 240 | 185 – 300 | 240 – 400 | 240 | 300 | 400 | 500 – 630 | 500 | 630 | 800

Operation/Application

Marine-Offshore-Shipbuilding Certified Yes
Dead Break Connection Product Type Inner Cone | T-Connector

Industry Standards

Compatible With Approved Standards Products GB/T 12706.4-2008 | HD629.1-S2 | HD629.1-S3

Product Availability

Product Availability Americas | Asia | Australia, New Zealand & Pacific Islands | Europe, Middle East & Africa | Worldwide

Other

Installation Instruction Bulgarian | Croatian | Czech | Dutch | English | Estonian | Finnish | Flemish | French | German | Hebrew | Hungarian | Italian | Lithuanian | Norwegian | Polish | Portuguese | Romanian | Russian | Slovak | Slovenian | Spanish | Swedish

Related Materials

Datasheets & Catalog Pages

TE's RAYCHEM SCREENED COUPLING CONNECTORS RSTI-CC-58 pdf English
TE's RAYCHEM SCREENED COUPLING CONNECTORS RSTI-CC-68 pdf English
TE's RAYCHEM SCREENED COUPLING CONNECTORS RSTI-CC-X9 pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI-935 GBT pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI-58 IEC pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI-68 IEC pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI-X9 IEC pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI IEC pdf English

Screened Separable Connectors 1250 A

Product Features

Product Availability : Americas | Asia | Australia, New Zealand & Pacific Islands | Europe, Middle East & Africa | Worldwide

Installation Instruction : Bulgarian | Croatian | Czech | Dutch | English | Estonian | Finnish | Flemish | French | German | Hebrew | Hungarian | Italian | Lithuanian | Norwegian | Polish | Portuguese | Romanian | Russian | Slovak | Slovenian | Spanish | Swedish

Installation Technology : Wedge & Contact Ring | Shear Bolt | Mechanical

Voltage Class (kV): ≤ 12 | ≤ 36 | ≤ 42 | ≤ 24

Bushing Type : 1250A | 630A | 630A/1250A | Size 2 | Size 3

Key Features

Separable Connectors with Voltage Sensor

Improving Grid Reliability

Applications

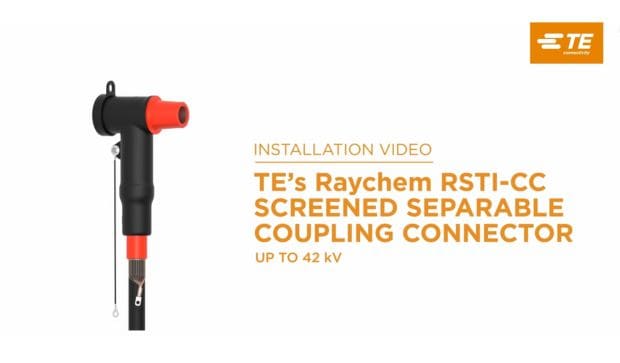

How to Install TE's Raychem RSTI-CC (English)
