Elbow Connectors 400A
- RAYCHEM
- RAYCHEM RSES
Product Features
-
Product Availability : Worldwide
-
Installation Instruction : English, French, German, Spanish
-
Installation Technology : Mechanical
-
Voltage Class (kV): ≤ 36, ≤ 24
-
Bushing Type : 400A

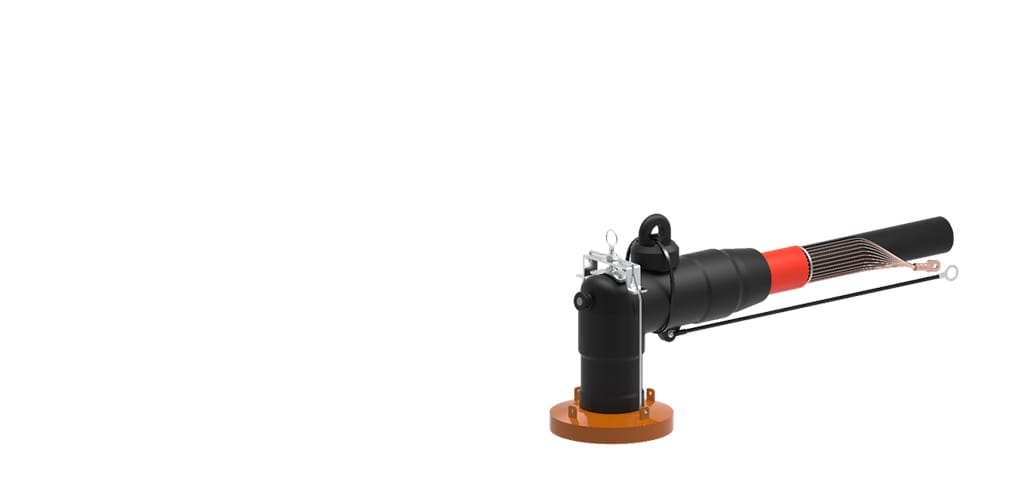

Our Raychem RSES Elbow Connectors 400A combine all the benefits of EPDM’s long service life with silicone rubber’s ease of installation characteristics.
Our Raychem RSES Elbow Connectors are designed to connect polymeric cables to medium-voltage gas-insulated switchgear, transformers, or motors that are using bushings type “B” according to EN 50180/EN 50181 specified for 400 A continuous current. The Elbow Connectors are compliant with CENELEC HD 629.1 S2 02/2006+A1:2008.
Elbow Connectors are a hybrid solution combining EPDM with silicone rubber. The durable EPDM insulation body provides reliable performance indoors and outdoors, especially in harsh environmental conditions. Plus, its rugged, high-performance capabilities enable easy handling during push-on and connection procedures. In addition, the flexible silicone stress cone adapter ensures fast and easy installations even on larger cable cross-sections.
A capacitive Voltage Detection (VD) point is built into every connector, which detects the presence of voltage in a cable network and thus helps avoid possible injury during operation and maintenance.
Key Features
- Hybrid material design: Flexible silicone cable adapter and rugged EPDM body
- Reliable operation even under harsh environmental conditions
- Easy installation due to flexible silicone cable adapter
- Screened connector body for improved safety and protection against accidental contact
- Easily accessible capacitive test point for Voltage Detection System (VDS)
- Shield-break design for cable outer sheath testing without disconnection of RSES
TE's Raychem Elbow Connectors
Improving Grid Connectivity
Watch the installation video of the new TE´s Raychem Screened Elbow Separable Connectors RSES for bushing type B, 400 A up to 36 kV.
TE's Raychem Separable Connectors Range
-
VIEW ALL TE's RAYCHEM SEPARABLE CONNECTORS
Our Separable Elbow Connectors are engineered to optimize performance and solve your switchgear and transformer connection challenges in IEC, IEEE and GB/T power grids.
Frequently Asked Questions
Question: What material are TE's Raychem screened separable elbow connectors made of?
Answer: Our Raychem screened separable elbow connectors are made of a combination of durable EPDM rubber for the main insulation body and highly modified silicone rubber (LSR) for the inner insulation (cable adapter).
Question: What is the continuous current rating of type B bushing?
Answer: Type B bushing has a continuous current rating of 400A.
Question: Should the screened separable elbow connectors be disconnected/dismantled when performing cable outer sheath testing?
Answer: Our screened separable elbow connectors have a shield-break design for cable outer sheath testing and don't require disconnection.
Question: How do I detect voltage presence using the screened separable elbow connectors?
Answer: Our screened separable elbow connectors are equipped with a capacitive Voltage Detection (VD) point that, in combination with voltage detection devices, can be used to determine the voltage presence.
Question: Are the screened separable elbow connectors safe to touch when installed?
Answer: Our elbow connectors use a conductive EPDM jacket, which provides protection against accidental contacts to ensure personnel safety.
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Installation Technology Mechanical
-
Bushing Type 400A
-
Cable Shield Style Adaptable
-
Screened Screened
Configuration Features
-
Number of Cores 1
Electrical Characteristics
-
Voltage Class (kV) ≤ 36, ≤ 24
Body Features
-
Compatible Conductor Material Aluminum, Copper
-
Insulation Material Polymeric
Dimensions
-
Compatible Insulation Diameter Range (mm) 24.5 – 32, 30.8 – 39.6
-
Compatible Conductor Cross-Section Range (mm²) 50 – 95, 95 – 120, 150 – 240, 185 – 300
Operation/Application
-
Dead Break Connection Product Type Elbow Connector
-
Marine-Offshore-Shipbuilding Certified No
Industry Standards
-
Compatible With Approved Standards Products CENELEC HD 629.1, HD CENELEC 629.2, HD CENELEC 629.3, HD CENELEC 629.4
Product Availability
-
Product Availability Worldwide
Other
-
Installation Instruction English, French, German, Spanish
Reference Number
-
TE Internal Number CAT-RSES
