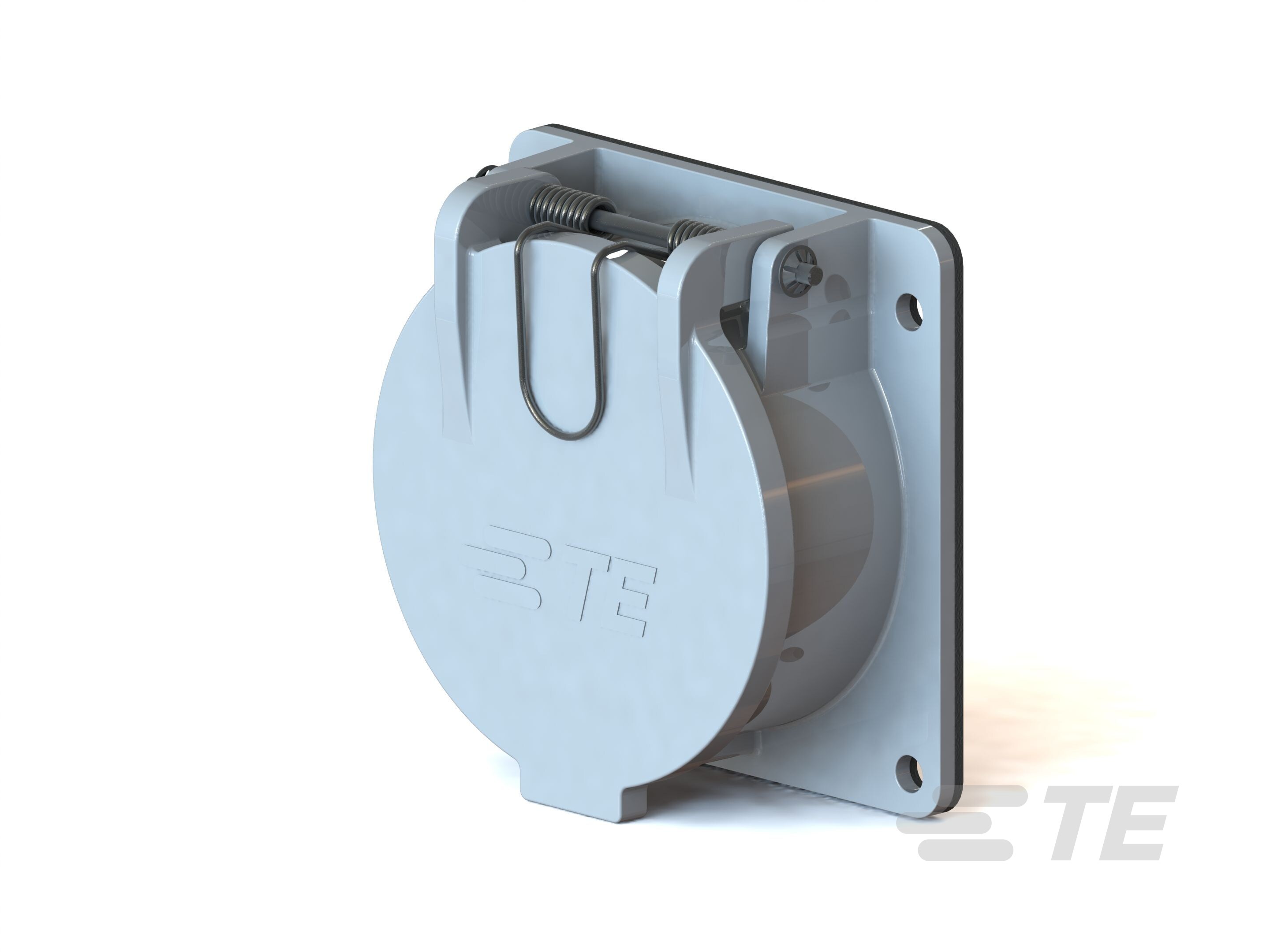

MU27 Dummy Receptacle

MU27 Dummy Receptacle-CAT-R131-M88A
  • DEUTSCH
Multiple Unit (MU) 27 pin “dummy” receptacle used to convey locomotive functions between units. Allows a single point to issue up to 27 commands (control & indication signals) to all or some of the vehicles simultaneously.
More Less

Product Features

  • Connector System : Cable-to-Cable

  • Circuit Application : Signal

  • Connector Mounting Type : Panel Mount

  • Reverse Gender : No

  • Shell Plating Material : Trivalent Chromium

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Prewired  No

  • Connector Product Type  Connector Assembly

  • Connector System  Cable-to-Cable

  • Circular Connector Type  Receptacle

  • Shell Type  Metal

Electrical Characteristics

  • Operating Voltage (VAC) 600

Body Features

  • Shell Plating Material  Trivalent Chromium

  • Shell Base Material  Aluminum Alloy

  • Circular Connector Insulation Material Type  Low Fire Hazard Thermoplastic

Contact Features

  • Reverse Gender  No

Mechanical Attachment

  • Panel Mount Feature Type  Screw Nut

  • Connector Mounting Type  Panel Mount

  • Mating Alignment Type  Keyed

  • Mating Retention  With

Usage Conditions

  • Fluid Resistance  Moisture/Spray

Operation/Application

  • Circuit Application  Signal

  • Shielded  No

Packaging Features

  • Packaging Quantity  1

Other

  • Field Serviceable  Yes

Reference Number

  • TE Internal Number CAT-R131-M88A
