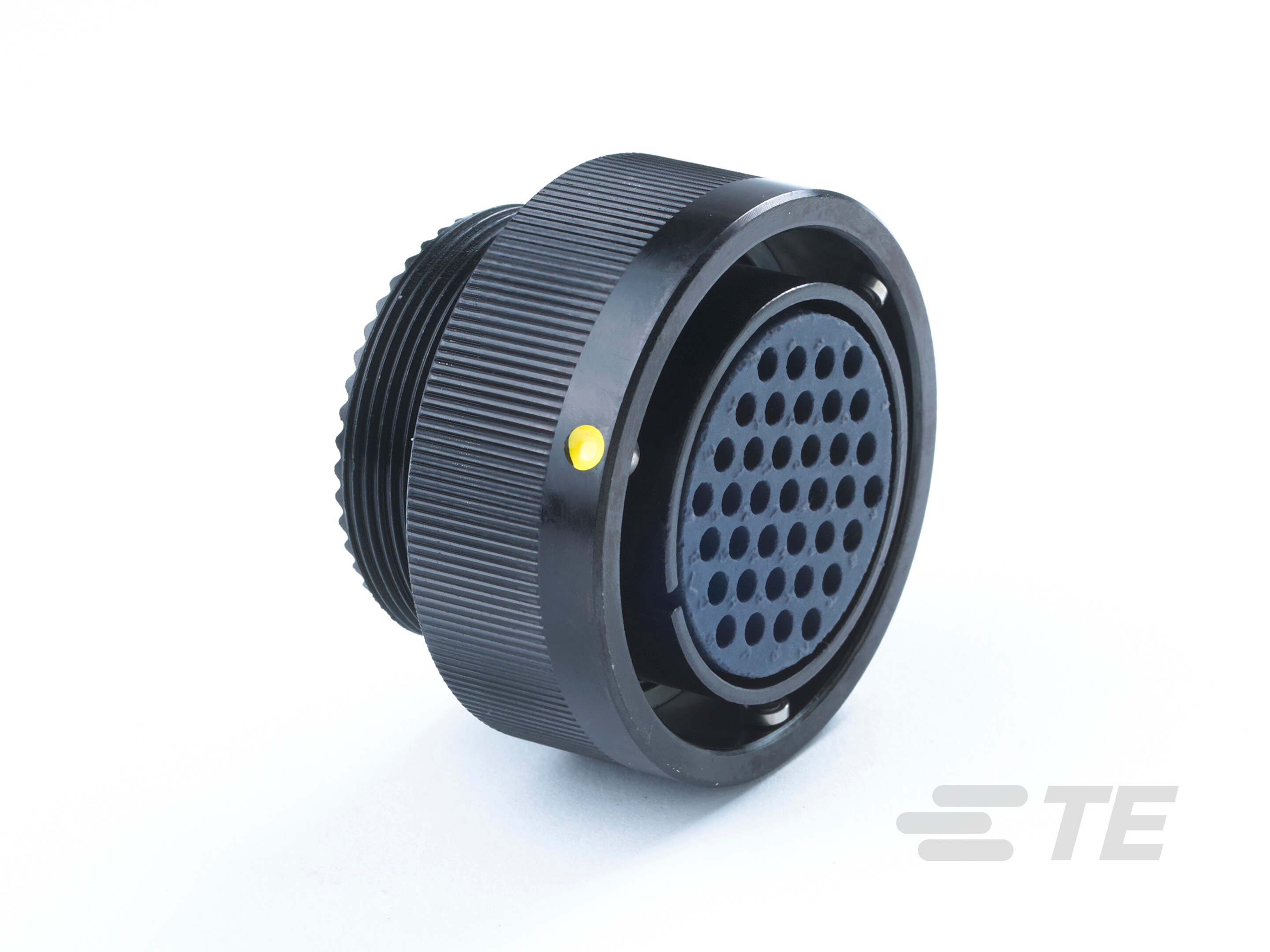

Plug with RFI Grounding - Female - CIRH

Please review product documents or contact us for the latest agency approval information.

• Prewired  No

• Connector Product Type  Connector Assembly

• Connector System  Cable-to-Cable | Wire-to-Wire

• Connector & Contact Terminates To  Wire & Cable

• Circular Connector Type  Receptacle

• Shell Type  Metal

• Factory Installed Backshell  Without

• Number of Positions  3 | 5 | 6 | 7 | 8 | 13 | 19 | 22 | 35 | 37 | 48 | 60

• Contacts Preloaded  No

• Primary Product Color  Black

• Shell Plating Material  Black Chromate Over Zn Cobalt

• Shell Base Material  Aluminum Alloy

• Circular Connector Insulation Material Type  Low Fire Hazard Rubber

• Reverse Gender  Yes

• Contact Layout Arrangement  14 – 6 | 16 – 1 | 16 – 10 | 18 – 11 | 18 – 12 | 18 – 19 | 20 – 15 | 20 – 7 | 22 – 14 | 24 – 10 | 28 – 21 | 32 – 76 | 32 – A13 | 36 – 10 | 36 – A22 | 40 – A35 | 40 – A60

• Circular Connector Contact Type  Socket

• Mating Alignment  With

• Mating Retention Type  Bayonet

• Mating Alignment Type  Keyed

• Mating Retention  With

• Circular Connector Shell Size  16 | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 40

• IP Water Sealing Level  IP67

• Circuit Application  Power & Signal

• Shielded  Yes

• Packaging Quantity  10

• Position Locations Omitted  All

• Field Serviceable  Yes
