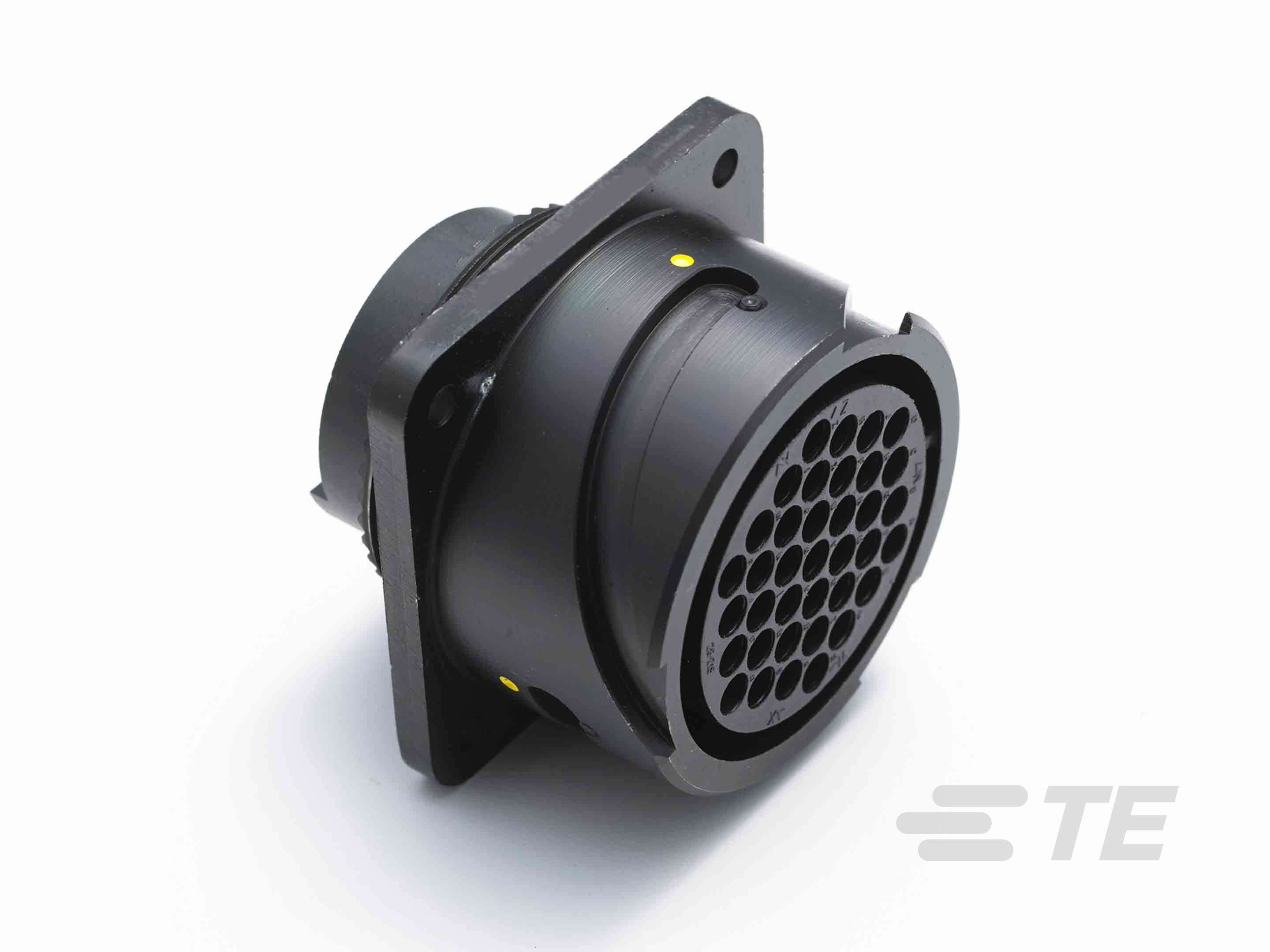

4 HOLE FLANGE RECEPTACLE REAR PNL FEM.

Please review product documents or contact us for the latest agency approval information.

• Prewired  No

• Connector Product Type  Connector Assembly

• Connector System  Cable-to-Cable, Wire-to-Wire

• Connector & Contact Terminates To  Wire & Cable

• Circular Connector Type  Receptacle

• Shell Type  Metal

• Factory Installed Backshell  Without

• Number of Positions  7, 10, 13, 19, 22, 35, 37, 60

• Contacts Preloaded  No

• Operating Voltage (VDC) 1250

• Operating Voltage (VAC) 700

• Primary Product Color  Black

• Environmental Protection  With

• Environmental Protection Type  Sealed

• Shell Plating Material  Black Chromate Over Zn Cobalt

• Shell Base Material  Aluminum Alloy

• Circular Connector Insulation Material Type  Low Fire Hazard Thermoplastic

• Reverse Gender  Yes

• Contact Layout Arrangement  Circular

• Circular Connector Contact Type  Socket

• Mating Alignment  With

• Mating Retention Type  Bayonet

• Panel Mount Feature Type  Square Flange

• Connector Mounting Type  Panel Mount

• Mating Alignment Type  Keyed

• Mating Retention  With

• Circular Connector Shell Size  18, 20, 22, 24, 28, 32, 36, 40

• Wire Size (AWG) 8, 12, 16

• IP Water Sealing Level  IP67

• Circuit Application  Power & Signal

• Shielded  Yes

• Packaging Quantity  10

• Position Locations Omitted  All

• Field Serviceable  Yes
