Liquid Level Pressure Transducer

Liquid Level Pressure Transducer-CAT-PTT0069

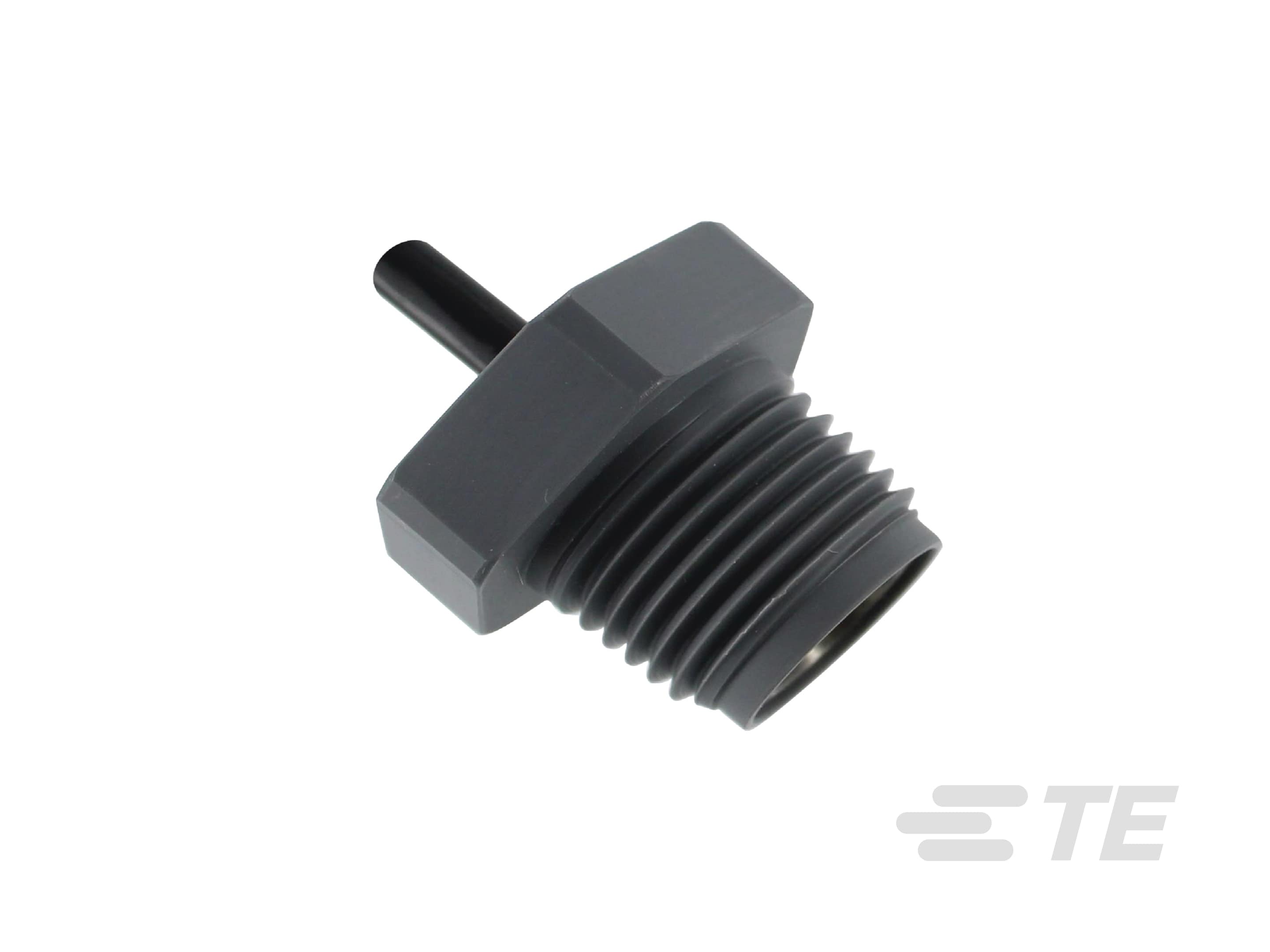

The LM series liquid level pressure transducer measures the hydrostatic pressure of a liquid by externally threading the sensor into the bottom of a tank or container. This product is configurable, please refer to the datasheet for available options.
More Less

Product Features

  • Pressure Sensor Type : Industrial Pressure Transducer, Submersible Pressure Transducer

  • Pressure (bar): .068, .137, .344, 1.034

  • Pressure (psi): 1, 2, 5, 15

  • Pressure Type : Gauge

  • Supply Voltage Range (V): 5

  • Output Signal Type : .5 – 4.5 V

Available from

LADD Inc
Overview

The LM series uses a stainless-steel sensor in a PVC plastic fitting to measure liquid level based on the specific gravity of the liquid and the height of the tank or container. The modular design is adaptable to an infinite number of plastic port variations for OEM applications. With high performance in a small form factor, these transducers enable the miniaturization of high accuracy pressure systems. The standard output is 0.5-4.5V ratiometric with a 5V supply.



Features

  • Threaded process fitting
  • -20ºC to +70ºC operating temperature
  • ±1% accuracy
  • ±3.0% Total Error Band
  • Solid state reliability
  • Variety of cable lengths

Applications

  • Irrigation
  • RV and marine holding tank level
  • Water storage & recycling systems
  • Small tank fluid level
  • Chillers & evaporative coolers
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Pressure Sensor Type  Industrial Pressure Transducer, Submersible Pressure Transducer

  • Pressure Type  Gauge

Configuration Features

  • Electrical Connection  Cable 1 ft

Electrical Characteristics

  • Supply Voltage Range (V) 5

Body Features

  • Port Material  316L, PVC

Usage Conditions

  • Pressure (bar) .068, .137, .344, 1.034

  • Pressure (psi) 1, 2, 5, 15

  • Operating Temperature Range  -20 – 70 °C [ -4 – 158 °F ]

Operation/Application

  • Output Signal Type  .5 – 4.5 V

  • Proof Pressure Range  3X Rated

  • Pressure Accuracy  ±1% Span

Other

  • Sensor Options  None

  • Port Fitting  1/2 MNPT

Reference Number

  • TE Internal Number CAT-PTT0069
