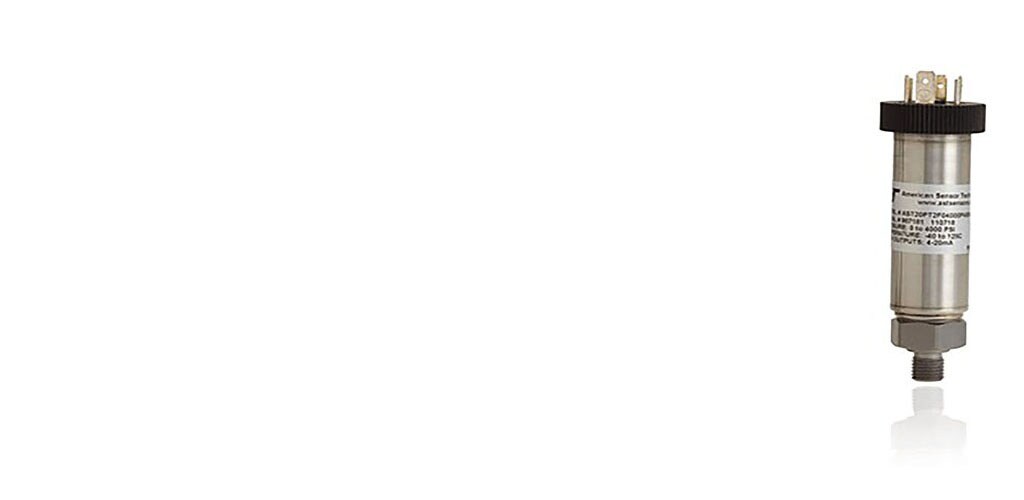

Pressure and Temperature Transducer

AST20PT

The AST20PT series pressure and temperature transducer is a digitally compensated output transmitter, offering measurements from a single process point, reducing process penetration points and leaks.

More Less

Datasheet |
Digital Datasheet|

Connect with Us

Product Features

Pressure Sensor Type : Industrial Pressure Transducer
Pressure (bar): .68 | 1.72 | 2 | 3.44 | 5 | 6.89 | 10.34 | 13.78 | 17.23 | 20.68 | 40 | 103.42 | 250 | 344.73 | 350 | 400
Pressure (psi): 1.973 | 10 | 25 | 29 | 40 | 50 | 72.5 | 100 | 150 | 200 | 250 | 300 | 400 | 1500 | 3000 | 3625 | 5000 | 5076.3
Pressure Type : Compound | Gauge
Supply Voltage Range (V): 10 – 28
Output Signal Type : 0 – 10 V | 0 – 5 V | 1 – 10 V | 1 – 5 V | 4 – 20 mA

Available from

Product	TE Part #	Documents	Pressure	Pressure Type	Output Signal Type	Proof Pressure Range	Operating Temperature Range	Electrical Connection	Port Fitting	EU RoHS Compliance	EU ELV Compliance
AST20PT4PV0002B2L1N000: CTO-13000000-01	20023063-00		2 bar	Compound	0 – 5 V	2X Rated	-40 – 85 °C	Cable	1/2 MNPT	-	-
AST20PT2A00250P3A1N000: CTO-13000000-01	20027097-00		17.23 bar	Gauge	1 – 5 V	2X, Min	-40 – 125 °C	Cable 2 ft	1/4 MNPT	-	-
AST20PT4AV0002B2I1N000: CTO-13000000-01	20023062-00		2 bar	Compound	0 – 5 V	2X Rated	-40 – 85 °C	DIN 43650A	1/4 MNPT	-	-
1500 PSI, 1/2MNPT, 4-20mA, 316L, -55 to	11191978-00		103.42 bar	Gauge	4 – 20 mA	2X, Min	-40 – 85 °C	No Connector	1/2 MNPT	-	-
AST20PT4PV0002B2I1N000: CTO-13000000-01	20023064-00		2 bar	Compound	0 – 5 V	2X Rated	-40 – 85 °C	DIN 43650A	1/2 MNPT	-	-
AST20PT1AV0025P2A1N000: CTO-13000000-01	20025567-00		2 bar	Compound	1 – 5 V	2X, Min	-40 – 85 °C	Cable 2 ft	1/4 MNPT	-	-
300 PSI, 1/2MNPT, 4-20mA, Cable, 2ft., H	11191073-00	3D PDF	20.68 bar	Gauge	4 – 20 mA	2X, Min	-40 – 85 °C	Cable 2 ft	1/2 MNPT	-	-
AST20PT1A00025P4D0H000:CTO-13000000-01	11192469-00	3D PDF	1.72 bar	Gauge	4 – 20 mA	2X, Min	-40 – 85 °C	Cable 10 ft	1/4 MNPT	-	-
AST20PT1P05000P4D1N000: CTO-13000000-01	20022963-00		344.73 bar	Gauge	1 – 5 V	2X, Min	-40 – 85 °C	Cable 10 ft	1/2 MNPT	-	-
AST20PT2B00005B4I0H000: CTO-13000000-01	20023863-00		5 bar	Gauge	4 – 20 mA	2X, Min	-40 – 85 °C	DIN 43650A	1/8 MNPT	-	-
AST20PT2A00350B3Y1N000: CTO-13000000-01	20024415-00		350 bar	Gauge	1 – 5 V	2X, Min	-40 – 85 °C	M12x1	1/4 MNPT	-	-
AST20PT3A00250B2A0N000: CTO-13000000-01	20013442-00	3D PDF	250 bar	Gauge	0 – 5 V	2X, Min	-40 – 85 °C	Cable 2 ft	1/4 MNPT	-	-
AST20PT5P00050P4D1L000:CTO-13000000-01	11192292-00	3D PDF	3.44 bar	Gauge	4 – 20 mA	2X, Min	-40 – 85 °C	Cable 10 ft	1/2 MNPT	-	-
AST20PT2A00005B4I1H000: CTO-13000000-01	20023862-00		5 bar	Gauge	4 – 20 mA	2X, Min	-40 – 85 °C	DIN 43650A	1/4 MNPT	-	-
AST20PT3B00150P2E0N000:CTO-13000000-01	11100935-00	3D PDF	10.34 bar	Gauge	0 – 5 V	2X, Min	-40 – 85 °C	Mini-DIN 43650C	1/8 MNPT	-	-
100 PSI, 1/4MNPT, 1-5V, Cable, 2ft.,	11192620-00	3D PDF	6.89 bar	Gauge	1 – 5 V	2X, Min	-40 – 85 °C	Cable 2 ft	1/4 MNPT	-	-
AST20PT2AV0200P4R1L000:CTO-13000000-01	11191599-00	3D PDF	13.78 bar	Compound	4 – 20 mA	2X, Min	-40 – 85 °C	6 Pin Bendix PT06A	1/4 MNPT	-	-
AST20PT3B00200P2E0N000:CTO-13000000-01	11190452-00	3D PDF	13.78 bar	Gauge	0 – 5 V	2X, Min	-40 – 85 °C	Mini-DIN 43650C	1/8 MNPT	-	-
AST20PT1P00050P4D1L000:CTO-13000000-01	11192497-00	3D PDF	3.44 bar	Gauge	4 – 20 mA	2X, Min	-40 – 85 °C	Cable 10 ft	1/2 MNPT	-	-

Overview

The AST20PT series pressure and temperature transducer offers excellent non-linearity and non-repeatability performance measurements, reducing process penetration points and leaks.

The AST20PT pressure and temperature transducer features TE's Krystal Bond™ Technology alone offers excellent non-linearity and non-repeatability performance. When it is combined with the ASIC, the AST20PT steps into its own league of high performance pressure sensing at an affordable price.

Benefits

ASIC Compensation
Superb Temperature Performance
Real Time Thermal Compensation
Real Time Linearity Correction
Turndown Capability

Applications

Aerospace
Analytical Instruments
Hydraulics
Hydrogen (Consult factory for media compatibility)
Labs / Metrology
Medical
Military
Test Stands

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Pressure Sensor Type Industrial Pressure Transducer
Pressure Type Compound | Gauge

Configuration Features

Electrical Connection 6 Pin Bendix PT06A | Cable | Cable 10 ft | Cable 2 ft | DIN 43650A | M12x1 | Mini-DIN 43650C | No Connector

Electrical Characteristics

Supply Voltage Range (V) 10 – 28

Body Features

Port Material 17-4PH | 316L | Alloy C276

Dimensions

Product Diameter 25.4 mm [ 1 in ]
Product Length (mm) 88.6 | 89.66 | 115.8 | 118.3 | 126.2 | 128.5 | 677.6 | 690.3 | 3078.4 | 3101.3
Product Length (in) 3.49 | 3.53 | 4.56 | 4.66 | 4.97 | 5.06 | 26.68 | 27.18 | 121.2 | 122.1

Usage Conditions

Pressure (bar) .68 | 1.72 | 2 | 3.44 | 5 | 6.89 | 10.34 | 13.78 | 17.23 | 20.68 | 40 | 103.42 | 250 | 344.73 | 350 | 400
Pressure (psi) 1.973 | 10 | 25 | 29 | 40 | 50 | 72.5 | 100 | 150 | 200 | 250 | 300 | 400 | 1500 | 3000 | 3625 | 5000 | 5076.3
Operating Temperature Range (°C) -40 – 85 | -40 – 125
Operating Temperature Range (°F) -40 – 185 | -40 – 257

Operation/Application

Output Signal Type 0 – 10 V | 0 – 5 V | 1 – 10 V | 1 – 5 V | 4 – 20 mA
Proof Pressure Range 2X, Min | 2X Rated
Pressure Accuracy ±0.1% FSO

Other

Sensor Options No Option
Port Fitting 1/2 MNPT | 1/4 MNPT | 1/8 MNPT | F250C Female

Reference Number

TE Internal Number CAT-PTT0038
