Hydrogen Pressure Transducer

AST2000

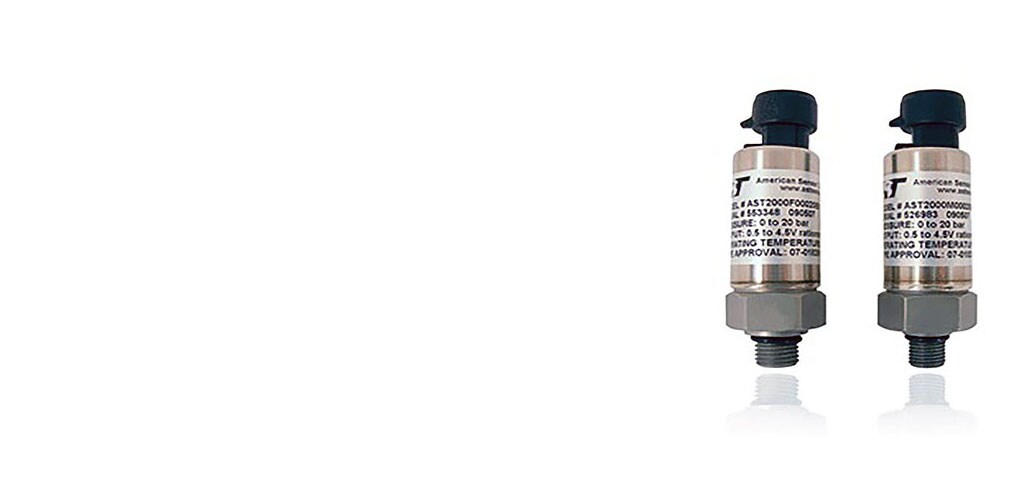

The new AST2000H2 series hydrogen pressure transducer combines the best mechanical design for hydrogen measurement with high performance digital compensation.

More Less

Datasheet |
Digital Datasheet|

Product Features

Pressure Sensor Type : Industrial Pressure Transducer
Pressure (bar): 20, 448
Pressure (psi): 290, 6497
Pressure Type : Compound, Sealed
Supply Voltage Range (V): 4.75 – 5.25
Output Signal Type : .5 – 4.5 V

Available from

Product	TE Part #	Documents	Pressure	Pressure Type	Pressure Accuracy	Port Fitting	EU RoHS Compliance	EU ELV Compliance
448 BAR, 7/16-20UNF Male, 0.5-4.5V ratio	11104118-00	3D PDF	448 bar	Compound, Sealed	±0.5% FSO	7/16-20 UNF Male	-	-
20 bar, 3/8-24UNF Male, 0.5-4.5V	11191693-00	3D PDF	20 bar	Compound, Sealed	±0.5% FSO	3/8-24 UNF Male	-	-
448 BAR, 3/8-24UNFM, 0.5-4.5V ratiometri	11104561-00	3D PDF	448 bar	Compound, Sealed	±0.5% FSO	3/8-24 UNF Male	-	-
448 BAR, 3/8-24UNF Male, 0.5-4.5V ratiom	11100570-00	3D PDF	448 bar	Compound, Sealed	±0.25% Span	3/8-24 UNF Male	-	-
448 BAR, 3/8-24UNF Male, 0.5-4.5V ratio,	11100569-00	3D PDF	448 bar	Compound, Sealed	±0.25% Span	3/8-24 UNF Male	-	-
448 BAR, 7/16-20UNF Male,0.5-4.5V ratiom	11100520-00	3D PDF	448 bar	Compound, Sealed	±0.25% Span	7/16-20 UNF Male	-	-
448 BAR, 7/16-20UNF Male, 0.5-4.5V ratio	11100521-00	3D PDF	448 bar	Compound, Sealed	±0.25% Span	7/16-20 UNF Male	-	-
20 BAR, 3/8-24UNF Male, 0.5-4.5V, Packar	11100565-00	3D PDF	20 bar	Compound, Sealed	±0.25% Span	3/8-24 UNF Male	-	-

Overview

The new AST2000H2 series hydrogen pressure transducer combines the best mechanical design for hydrogen measurement with high performance digital compensation.

Now tested to a variety of hydrogen and automotive standards, TE's HYDROGEN series introduces the new AST2000H2 series hydrogen pressure transducer, which combines high quality mechanical design for hydrogen measurment with hgh performance digital compensation for increased effectiveness.

Benefits

One piece design
All 316L wetted material for optimal compatibility
No oil-filled cavities leave no chance of containment
Non-welded diaphragm eliminates leak paths and weak points
Digitally compensated
Krystal Bond™ Technology

Applications

PEM Fuel Cells
Hydrogen Storage
Hydrogen Filling Stations
Test Stands
Back Up Power

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Pressure Sensor Type Industrial Pressure Transducer
Pressure Type Compound, Sealed

Configuration Features

Electrical Connection Packard Metripack 150

Electrical Characteristics

Supply Voltage Range (V) 4.75 – 5.25

Body Features

Port Material 316L

Usage Conditions

Pressure (bar) 20, 448
Pressure (psi) 290, 6497
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Output Signal Type .5 – 4.5 V
Proof Pressure Range 2X, Min
Pressure Accuracy ±0.25% Span, ±0.5% FSO

Other

Sensor Options None, No Option
Port Fitting 3/8-24 UNF Male, 7/16-20 UNF Male

Reference Number

TE Internal Number CAT-PTT0036

Related Materials

Datasheets & Catalog Pages

AST2000/4000 H2 Datasheet pdf English

Product Specifications

Customer View Model zip English

Agency Approvals

Agency Approval Document

EC79 NSAI EC Type-Approval Certificate pdf English
AST2000 20HA 20PT EU DOC pdf English
