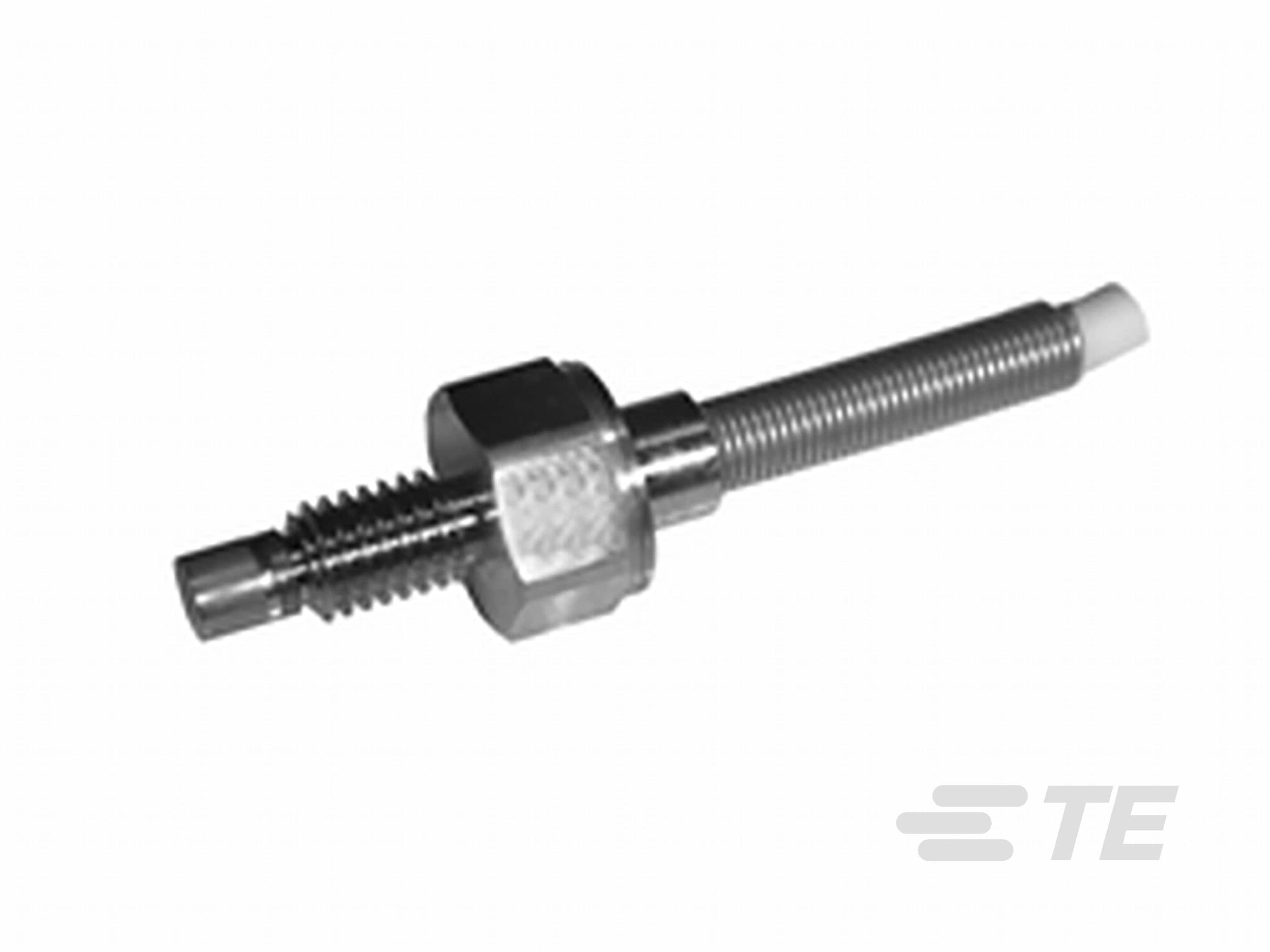

M4 Thread Miniature Pressure Transducer
- MEAS
- MEAS XPM4
The XPM4 series M4x0.7 thread miniature pressure transducer is designed to measure static and dynamic pressure under a wide variety of conditions, including hostile environments.
Product Features
-
Pressure Sensor Type : Miniature Pressure Transducer
-
Pressure (bar): 5 | 10 | 20 | 35 | 50 | 100 | 200 | 300
-
Pressure (psi): 75 | 150 | 300 | 500 | 750 | 1500 | 3000 | 4300
-
Pressure Type : Gauge | Sealed
-
Supply Voltage Range (V): 10
-
Output Signal Type : 100 mV | 30 mV | 60 mV
Overview
The XPM4 series miniature pressure transducer's all-titanium construction and flush diaphragm protect the sensor against most corrosive environments. The XPM4's threaded construction virtually eliminates zero shifts caused by installation torque. Its sensing element is a fully temperature compensated Wheatstone bridge configuration made with high stability, micro-machined, silicon strain gauges which optimize performance. As standard, the XPM4 is supplied with a cable outlet, strengthened by a strain-relief spring. An electrical connector outlet can be provided (optional).
Benefits
- Absolute, sealed and gauge ranges 5 to 200 bars [75 psi to 3 000 psi]
- Titanium device
- Cable or connector output
- Linearity up to ±0.35% F.S.
- Flush Diaphragm, All-Titanium Construction
- Low Installation Torque Sensitivity
- M4x0.7 thread
- Many options available
- Customized product upon request
Applications
- Glue dispensing systems
- Hydraulic circuits
- Explosion test benches
- Molding and forming profiles
- Robotics and effectors
- Laboratory
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Pressure Sensor Type Miniature Pressure Transducer
-
Pressure Type Gauge | Sealed
Configuration Features
-
Electrical Connection Cable 2 m | Cable 3 m | Cable 4 m | Cable 5 m | No Connector
Electrical Characteristics
-
Supply Voltage Range (V) 10
Body Features
-
Port Material Titanium
Dimensions
-
Hex Width Across Flats (mm) 20.3 | 20.32
-
Hex Width Across Flats (in) .8
-
Product Height (mm) 15.5 | 16.76
-
Product Height (in) .61 | .66
Usage Conditions
-
Pressure (bar) 5 | 10 | 20 | 35 | 50 | 100 | 200 | 300
-
Pressure (psi) 75 | 150 | 300 | 500 | 750 | 1500 | 3000 | 4300
-
Operating Temperature Range (°C) -40 – 60 | -40 – 120
-
Operating Temperature Range (°F) -40 – 140 | -40 – 248
Operation/Application
-
Output Signal Type 100 mV | 30 mV | 60 mV
-
Proof Pressure Range 2X FS
-
Pressure Accuracy ±0.35% FSO | ±0.5% FSO | Down to ± .35% FSO
Other
-
Sensor Options Cable Length | Compensation Temperature Range | Connector Output | High Accuracy | IP67 Protection | None | No Option
-
Port Fitting M4x0.7 Male
Reference Number
-
TE Internal Number CAT-PTT0033
