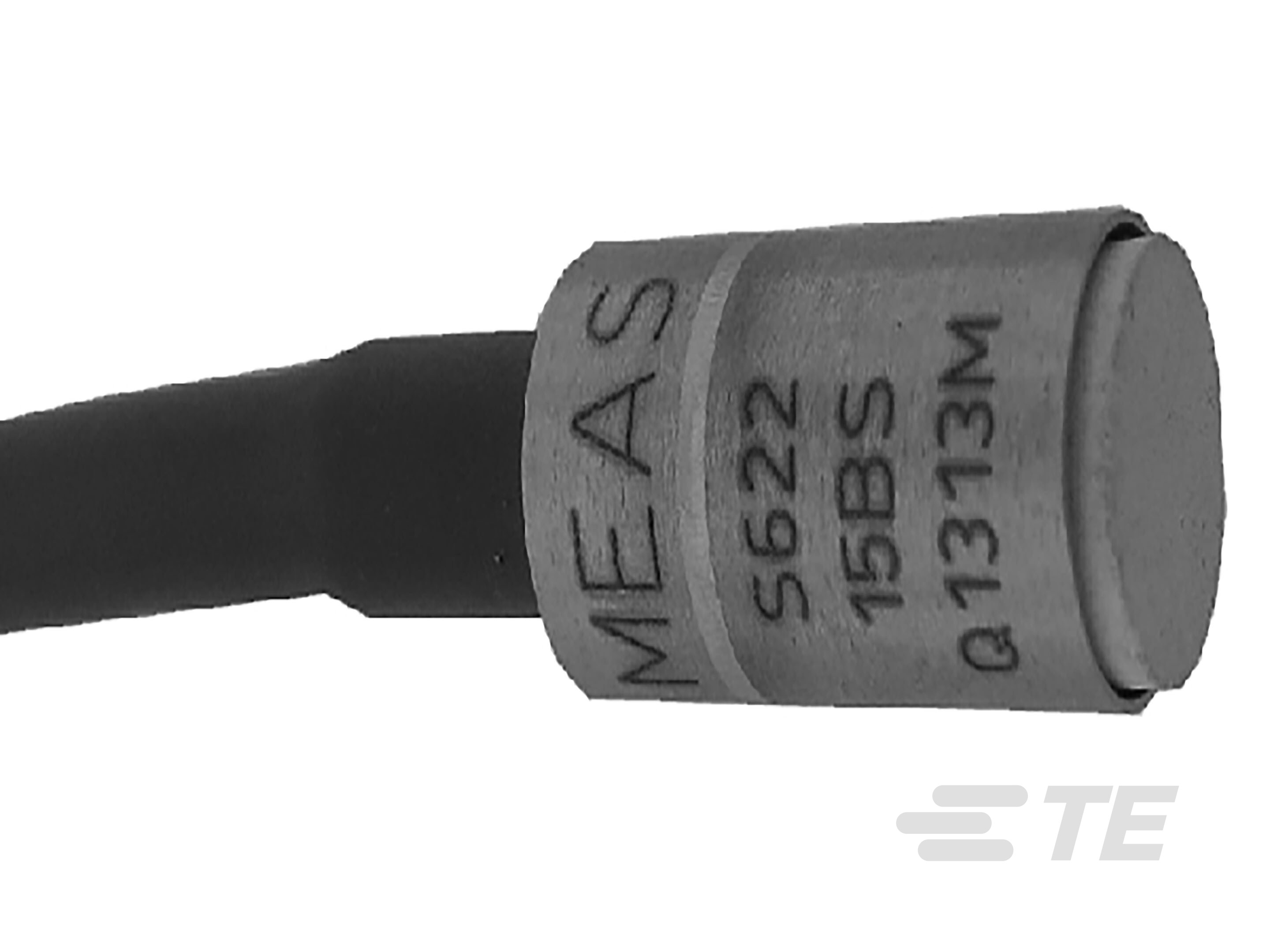

Titanium Pore Water Pressure Transducer

MEAS

MEAS EPB-PW

The EPB-PW series titanium miniature pressure transducer is specifically designed for pore water applications in either centrifuges or laboratory equipment. Using either ceramic or bronze sintered filters, this sensor can be used on clay or sand-based materials. This product is configurable, please refer to datasheet for available options.

More Less

Datasheet |

Connect with Us

Product Features

Pressure Sensor Type : Miniature Pressure Transducer
Pressure Type : Sealed
Output Signal Type : 10 mV/V | 12.5 mV/V | 5 mV/V | 7.5 mV/V
Pressure (bar): 1 | 1.5 | 3.5 | 7 | 15 | 35 | 70
Pressure (psi): 15 | 25 | 50 | 100 | 250 | 500 | 1000
Supply Voltage Range (V): 10

Available from

Product	TE Part #	Documents	Pressure Type	Output Signal Type	Pressure	Supply Voltage Range	Proof Pressure Range	Pressure Accuracy	Operating Temperature Range	Electrical Connection	Port Fitting	EU RoHS Compliance	EU ELV Compliance
EPB-PW-15BS	EPB-15BS-C20005	3D PDF	Sealed	12.5 mV/V	15 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-35BS	EPB-35BS-C20007	3D PDF	Sealed	12.5 mV/V	35 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-15BS-/PC0.5	EPB-15BS-C20013		Sealed	12.5 mV/V	15 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-7BS	EPB-7BS-C20012	3D PDF	Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-1.5BS-/PC1/L5M	20013816-00		Sealed	7.5 mV/V	1.5 bar	10 V	3X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-3.5BS-/PC3/L5M	20013817-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-250PS-/PC0.5	10220208-00		Sealed	12.5 mV/V	15 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-7BS-/PC5/L3M	10208681-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 3 m	None	-	-
EPB-PW-7BS-/PC1/V5/L5M	20009207-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-1BS-/PC1/L4M	10200684-00		Sealed	5 mV/V	1 bar	10 V	4.5X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 4 m	None	-	-
POROUS CERAMIC 3 BAR	ZPBS6220043		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EPB-PW-70BS-/PC5	10216545-00		Sealed	12.5 mV/V	70 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-35BS-/PC5	10216544-00		Sealed	12.5 mV/V	35 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-7BS-/PC1/L10M	20019713-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 10 m	None	-	-
EPB-PW-7BS-/PC3/L10M	20019714-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 10 m	None	-	-
EPB-PW-3.5BS-/Z0	20024162-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-1BS	EPB-1BS-C20009	3D PDF	Sealed	5 mV/V	1 bar	10 V	4.5X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-3.5BS-/V5/PC0.5/L5M	10206808-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-3.5BS-/PC3	10215151-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-7BS-/PC3/L5M	20006750-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-3.5BS-/L5M	20006564-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-1BS-/L7M	20006801-00		Sealed	5 mV/V	1 bar	10 V	4.5X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 7 m	None	-	-
EPB-PW-7BS-/L5M	20017837-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-7BS-/PC0.5	EPB-7BS-C20014		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-7BS-/PC5	EPB-7BS-C20015		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-1.5BS-/L10M	10226203-00		Sealed	7.5 mV/V	1.5 bar	10 V	3X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 10 m	None	-	-
EPB-PW-7BS-/PC3/V5/L5M	20012271-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-1.5BS-/Z0/PC1/L5M	20019072-00		Sealed	7.5 mV/V	1.5 bar	10 V	3X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-1BS-/Z0/PC1/L5M	20019075-00		Sealed	5 mV/V	1 bar	10 V	4.5X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-1BS-/PC0.5	10208363-00		Sealed	5 mV/V	1 bar	10 V	4.5X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-100PS-/PC0.5	10220207-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-15BS-/PC5/L10M	20019715-00		Sealed	12.5 mV/V	15 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 10 m	None	-	-
EPB-PW-15BS-/PC1/V5/Z0/L5M	10201516-00		Sealed	12.5 mV/V	15 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
POROUS CERAMIC 5 BAR	ZPBS6220045		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
POROUS CERAMIC 1 BAR	ZPBS6220041		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EPB-PW-15PS	EPB-15PS-C20005	3D PDF	Sealed	5 mV/V	1 bar	10 V	4.5X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-7BS-/V5/L3M	EPB-7BS-C20011		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 3 m	None	-	-
EPB-PW-7BS-/PC5/L5M	EPB-7BS-C20018		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-3.5BS-/PC5	11025736-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-7BS-/PC1/L5M	EPB-7BS-C20017		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-3.5BS	11025999-00	3D PDF	Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-1.5BS-/L5M	20026764-00		Sealed	7.5 mV/V	1.5 bar	10 V	3X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
POROUS CERAMIC 0.5 BAR	11025864-00		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EPB-PW-7BS-/PC5/V5/L5M	20015422-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-7BS-/PC0.5/L5M	10220670-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-3.5BS-/L7M	20006800-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 7 m	None	-	-
EPB-PW-3.5BS-/PC0.5	10215152-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	No Connector	None	-	-
EPB-PW-3.5BS-/Z0/PC1/L5M	20029402-00		Sealed	10 mV/V	3.5 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-7BS-/PC1/V5/Z0/L5M	EPB-7BS-C20019		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 5 m	None	-	-
EPB-PW-7BS-/L3M	10214364-00		Sealed	12.5 mV/V	7 bar	10 V	2X FS	Down to ± .5% FSO	-40 – 80 °C	Cable 3 m	None	-	-

Overview

Made of titanium, the EPB-PW miniature pressure transducer provides a rugged construction and is not affected by external clamping forces when fitted. Having a miniature design of 6.4 x 11.4mm ensures it is backwards compatible with other older manufacturers’ products. This pressure transducer features an IP68 rating, flexible cable and is available with options such as a PT1000 temperature sensor upon request.

Benefits

Miniature design (body ø6.4 mm)
Titanium construction
-40°C to +80°C operating temperature range
EMI Protected per CE compliance
IP68 Ingress Protection
Sealed gauge reference
Accuracy up to ±0.5%
Porous stones available

Applications

Pore water measurement

Centrifuge

Laboratory equipment

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Pressure Sensor Type Miniature Pressure Transducer
Pressure Type Sealed

Configuration Features

Electrical Connection Cable 10 m | Cable 20 m | Cable 3 m | Cable 4 m | Cable 5 m | Cable 7 m | No Connector

Electrical Characteristics

Supply Voltage Range (V) 10

Body Features

Port Material Titanium

Dimensions

Product Diameter 6.4 mm [ .251 in ]
Product Height 11.4 mm [ .448 in ]

Usage Conditions

Pressure (bar) 1 | 1.5 | 3.5 | 7 | 15 | 35 | 70
Pressure (psi) 15 | 25 | 50 | 100 | 250 | 500 | 1000
Operating Temperature Range -40 – 80 °C [ -40 – 176 °F ]

Operation/Application

Output Signal Type 10 mV/V | 12.5 mV/V | 5 mV/V | 7.5 mV/V
Proof Pressure Range 2X FS | 3X FS | 4.5X FS
Pressure Accuracy Down to ± .5% FSO

Other

Sensor Options Cable Length | Compensation Temperature Range | No Option | Porous Ceramic Installation
Port Fitting None
