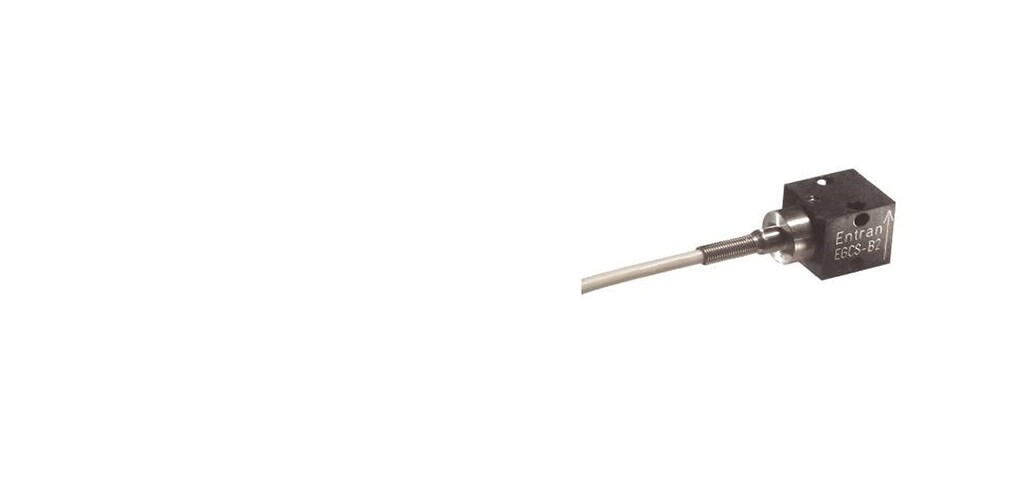

+/-5VDC Critically Damped Accelerometer

+/-5VDC Critically Damped Accelerometer-CAT-PPA0041
  • MEAS
|
  • MEAS EGCS
The EGCS-A2 and -B2 +/-5VDC critically damped accelerometers feature built-in over-range stops that are set to protect the unit against 10,000g shocks.
More Less
Connect with Us

Product Features

  • Accelerometer Type : MEMS DC

  • Vibration Sensor Product Type : MEMS Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 0-1300

  • Full Scale Output Voltage (VDC): ±5

Available from

LADD Inc
Overview
The EGCS-A2 and -B2 +/-5VDC critically damped accelerometers incorporate signal conditioning with optional ±5Vdc or ±2.5Vdc amplified full-scale output and are offered in ranges from ±5g to ±5000g.

The accelerometers incorporate signal conditioning with optional ±5Vdc or ±2.5Vdc amplified full-scale output and are offered in ranges from ±5g to ±5000g. The accelerometers are ideal for low frequency measurements and feature temperature compensation from+20 to +80 ºC.

Benefits

  • Critically Damped
  • DC to 4000Hz Frequency Response
  • Temperature Compensated
  • High Sensitivity, Amplified
  • ±5g to ±5000g Dynamic Range
  • Heavy Duty, Rugged
  • Static and Dynamic Measurement
  • ±1% Non-Linearity
  • -40 ºC to +120 ºC Temperature Range
  • 10,000g Over-range Protection



orange bar

Applications

  • Road Vehicle Testing
  • Machine Control
  • Downhole
  • Engine Testing
  • General Purpose
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  MEMS DC

  • Vibration Sensor Product Type  MEMS Accelerometer

Configuration Features

  • Electrical Connection  Integral Cable

Electrical Characteristics

  • Excitation Voltage Range (VDC) 15

  • Zero Acceleration Output (mV) ±250

  • Full Scale Output Voltage (VDC) ±5

Signal Characteristics

  • Frequency Response (Hz) 0-1300

Body Features

  • Primary Product Material  Anodized Aluminum

  • Product Weight  15 g [ .53 oz ]

  • Number of Sensing Axes  Uniaxial

Mechanical Attachment

  • Sensor Mount Type  Screw Mount

Usage Conditions

  • Operating Temperature Range  -40 – 120 °C [ -40 – 248 °F ]

Operation/Application

  • Output Current Type  DC

Industry Standards

  • IP Rating  IP62

Other

  • Non-Linearity (FSO) (%) ±1

  • Acceleration Range (±) (g) 250

  • Sensitivity (mV/g) 20
