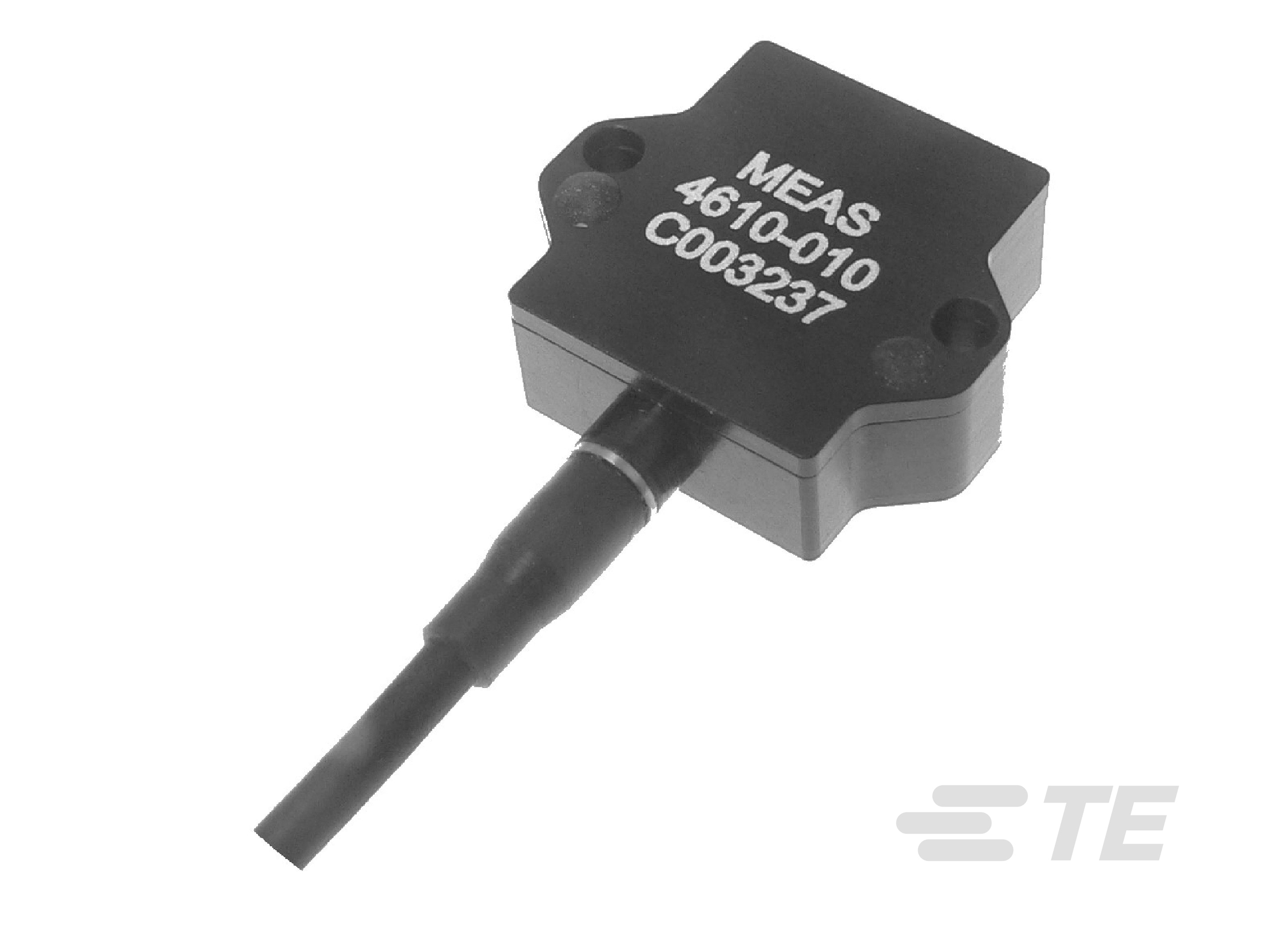

MEMS DC Screw Mount Accelerometer

MEAS

MEAS 4610

The Model 4610 is an ultra-stable MEMS accelerometer ideal for static and dynamic applications.

More Less

Datasheet |

Connect with Us

Product Features

Accelerometer Type : MEMS DC
Vibration Sensor Product Type : MEMS Accelerometer
Number of Sensing Axes : Uniaxial
Frequency Response (Hz): 0-1000 to 0-4000 | 0-1500 | 0-2000 | 0-200 to 0-1000 | 0-600 to 0-1500 | 0-700 | 0-700 to 0-2700
Full Scale Output Voltage (VDC): ±2

Available from

Product	TE Part #	Documents	Frequency Response	Acceleration Range (±)	Sensitivity	EU RoHS Compliance	EU ELV Compliance
4610-030-240-D	20015139-00	3D PDF	0-2000 Hz	30 g	67 mV/g	-	-
4610-010-180-D	20011371-00	3D PDF	0-1500 Hz	10 g	200 mV/g	-	-
4610-005-197-D	20007725-00	3D PDF	0-1000 to 0-4000 Hz	5 g	400 mV/g	-	-
4610-002-600-D	20017912-00	3D PDF	0-200 to 0-1000 Hz	2 g	1000 mV/g	-	-
4610-020-060-D	20014474-00	3D PDF	0-2000 Hz	20 g	100 mV/g	-	-
4610-005-060-D	20004551-00	3D PDF	0-1000 to 0-4000 Hz	5 g	400 mV/g	-	-
4610-200-060-D	20004554-00	3D PDF	0-2000 Hz	200 g	10 mV/g	-	-
4610-200-394-D	20019727-00	3D PDF	0-1500 Hz, 0-2000 Hz	200 g	10 mV/g	-	-
4610-010-394-D	20008321-00	3D PDF	0-1500 Hz	10 g	200 mV/g	-	-
4610-100-060-D	20004552-00	3D PDF	0-2000 Hz	100 g	20 mV/g	-	-
4610-050-240-D	20010848-00	3D PDF	0-2000 Hz	50 g	40 mV/g	-	-
4610-200-120-D	20007020-00	3D PDF	0-2000 Hz	200 g	10 mV/g	-	-
4610-050-060-D	20004553-00	3D PDF	0-2000 Hz	50 g	40 mV/g	-	-
4610-100-120-D	20007019-00	3D PDF	0-2000 Hz	100 g	20 mV/g	-	-
4610-005-600-D	20012313-00	3D PDF	0-700 Hz	5 g	400 mV/g	-	-
4610-010-060-D	20004546-00	3D PDF	0-1500 Hz	10 g	200 mV/g	-	-
4610-002-120-D	20007013-00	3D PDF	0-600 to 0-1500 Hz	2 g	1000 mV/g	-	-
4610-005-120-D	20007014-00	3D PDF	0-1000 to 0-4000 Hz	5 g	400 mV/g	-	-
4610-010-120-D	20007015-00	3D PDF	0-700 to 0-2700 Hz	10 g	200 mV/g	-	-
4610-002-240-D	20009884-00	3D PDF	0-600 to 0-1500 Hz	2 g	1000 mV/g	-	-
4610-010-197-D	20013319-00	3D PDF	0-700 to 0-2700 Hz	10 g	200 mV/g	-	-
4610-002-060-D	20004545-00	3D PDF	0-600 to 0-1500 Hz	2 g	1000 mV/g	-	-
4610-030-060-D	20004549-00	3D PDF	0-2000 Hz	30 g	67 mV/g	-	-

Overview

The accelerometer offers integral temperature compensation with dynamic range from ±2 to ±200g. The model 4610 incorporates a gas damped MEMS element with mechanical overload stops that provide shock protection to 5,000g. The accelerometer has an operating temperature range of -55°C to +125°C.

Benefits

±2g to ±200g Dynamic Range
5000g Shock Protection
-55°C to +125°C Operating Range
8 to 36Vdc Excitation Voltage
Gas Damping, DC Response
Integral Cable
Temperature Compensated

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Sensor Package Plug & Play
Accelerometer Type MEMS DC
Vibration Sensor Product Type MEMS Accelerometer

Configuration Features

Electrical Connection Integral Cable

Electrical Characteristics

Excitation Voltage Range (VDC) 4 – 30
Zero Acceleration Output (mV) ±50
Full Scale Output Voltage (VDC) ±2

Signal Characteristics

Frequency Response (Hz) 0-1000 to 0-4000 | 0-1500 | 0-2000 | 0-200 to 0-1000 | 0-600 to 0-1500 | 0-700 | 0-700 to 0-2700

Body Features

Primary Product Material Anodized Aluminum
Product Weight 8 g [ .28 oz ]
Number of Sensing Axes Uniaxial

Mechanical Attachment

Sensor Mount Type Screw Mount

Usage Conditions

Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Output Current Type DC

Industry Standards

IP Rating IP65

Other

Non-Linearity (FSO) (%) ±.1
Acceleration Range (±) (g) 2 | 5 | 10 | 20 | 30 | 50 | 100 | 200
Sensitivity (mV/g) 10 | 20 | 40 | 67 | 100 | 200 | 400 | 1000
