Please review product documents or contact us for the latest agency approval information.

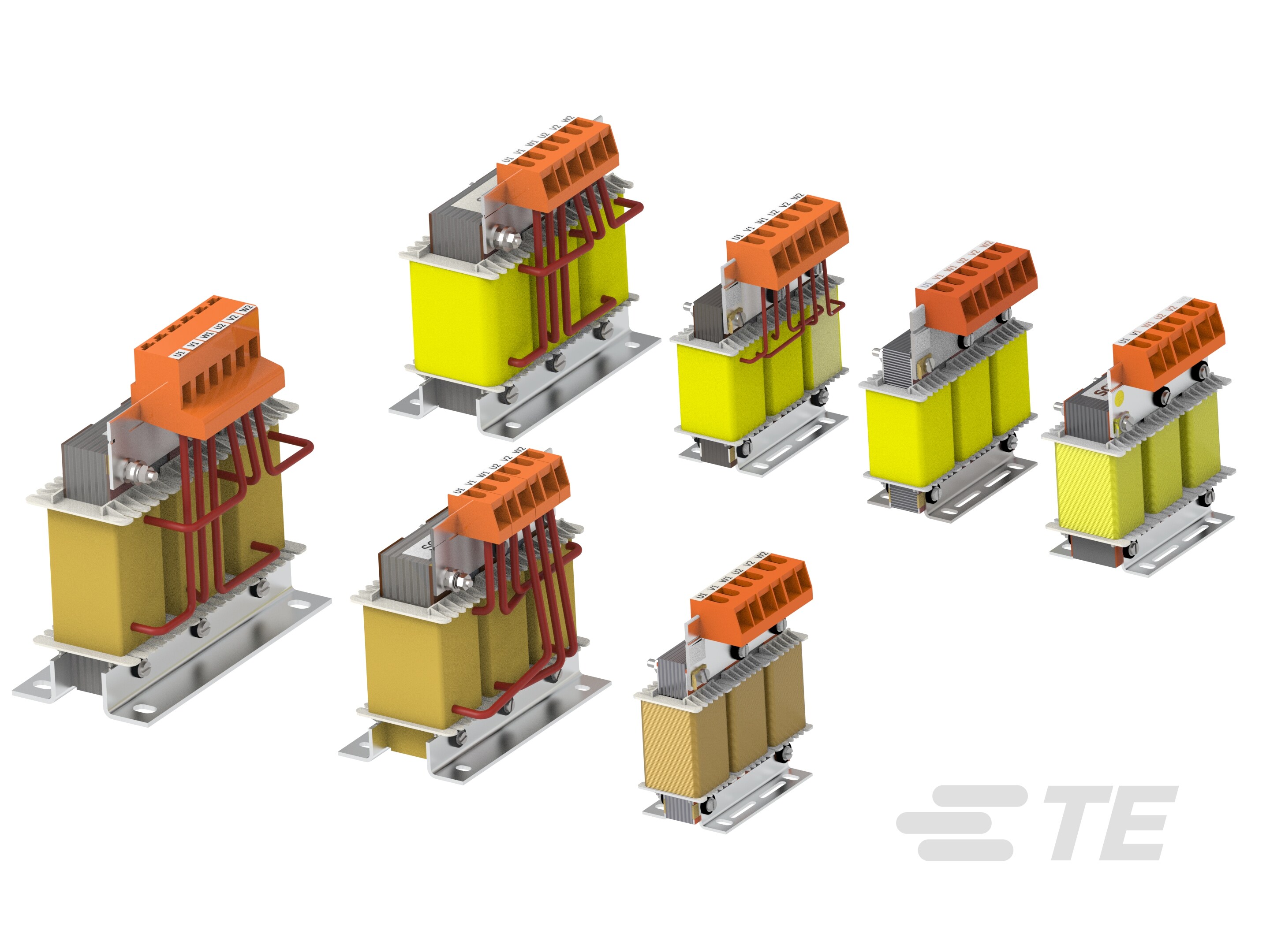

Electrical Characteristics
-
Short Circuit Current Rating (kA)
100
-
Operating Voltage (Max) (VAC)
500
-
Current Rating (Max) (A)
4 | 7 | 10 | 14 | 17 | 24 | 32 | 45 | 60 | 72 | 90 | 110 | 124 | 143 | 156 | 170 | 182 | 230 | 280 | 330 | 400 | 500 | 600
Body Features
-
Product Weight (kg)
1.2 | 1.8 | 2.2 | 2.5 | 3.9 | 6.1 | 7.4 | 8.2 | 10.7 | 16 | 22 | 29 | 32 | 34 | 35 | 37
-
Product Weight (lb)
2.646 | 3.968 | 4.85 | 5.512 | 8.598 | 13.448 | 16.314 | 18.078 | 23.589 | 35.274 | 48.502 | 63.934 | 70.548 | 74.957 | 77.162 | 81.571
Mechanical Attachment
-
Product Mount Type
Wall Mount
Dimensions
-
Product Width (mm)
60 | 70 | 75 | 95 | 110 | 115 | 125 | 130 | 180 | 220 | 230 | 235 | 240
-
Product Width (in)
2.36 | 2.75 | 2.95 | 3.74 | 4.33 | 4.52 | 4.92 | 5.11 | 7.08 | 8.66 | 9.05 | 9.25 | 9.44
-
Product Length (mm)
100 | 125 | 155 | 190 | 210 | 240
-
Product Length (in)
3.93 | 4.92 | 6.1 | 7.48 | 8.26 | 9.44
-
Product Height (mm)
115 | 135 | 160 | 170 | 185 | 190 | 220 | 225 | 325
-
Product Height (in)
4.52 | 5.31 | 6.29 | 6.69 | 7.28 | 7.48 | 8.66 | 8.85 | 12.79
Usage Conditions
-
Motor Cable Length (Max)
30 m [ 98.42 ft ]
Operation/Application
-
Operating Altitude (Max) (m)
2000
-
Level of Output Filtering
DV/DT Reduction By Factor 5
-
Motor Frequency (Hz)
60
Industry Standards
-
Certified To
CSA C22.2 NO. 14 | EN 61558-2-20 | UL 508C
-
Pollution Degree
PD3
-
IP Rating
IP00
-
UL Flammability Rating
UL 94V-2
Reference Number
-
TE Internal Number
CAT-PE4-R305
