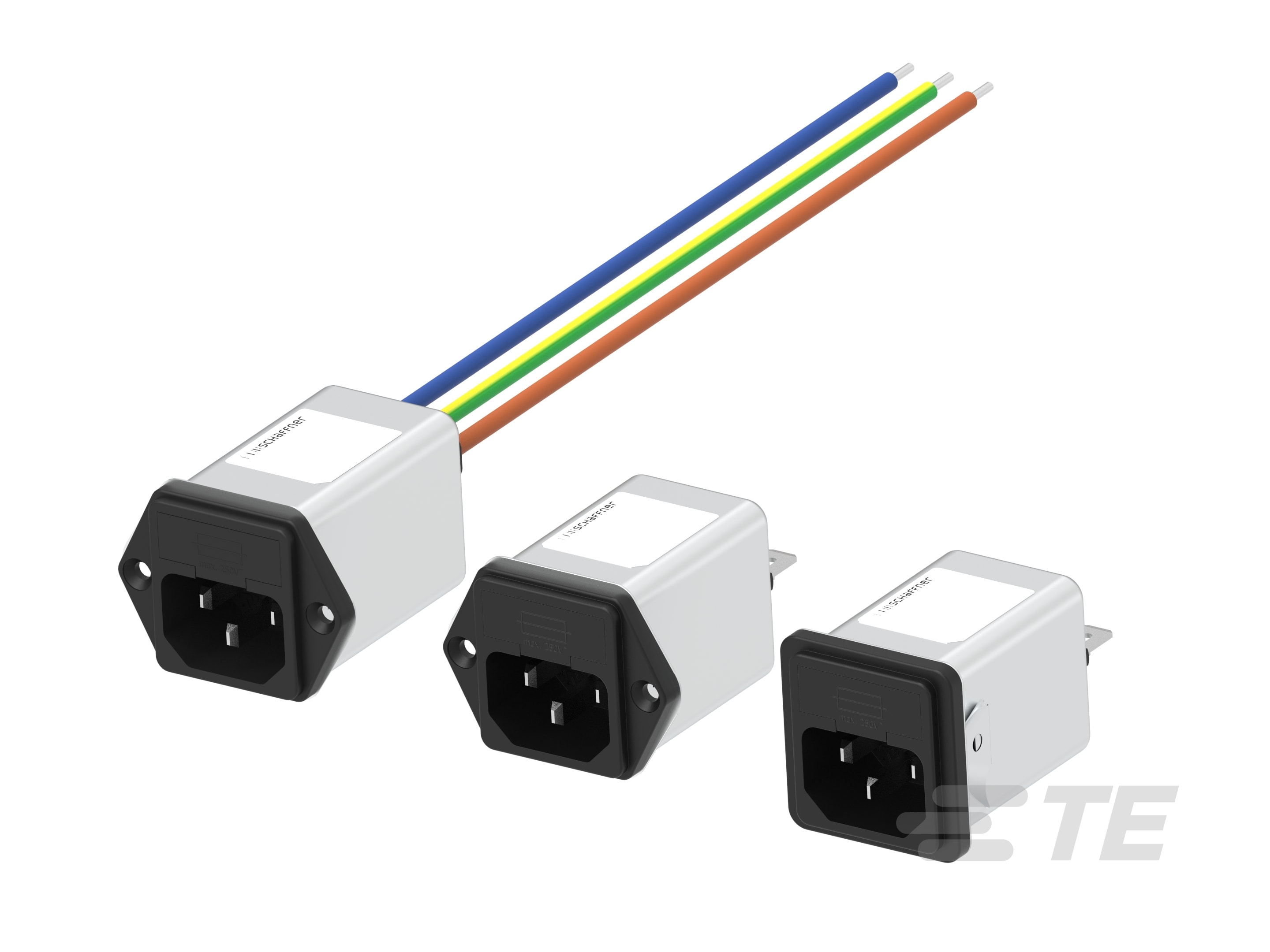

FN9262 Power Entry Module with EMC Filter – High-Performance Fused Solution

The FN9262 delivers high attenuation performance with rated currents up to 10 A and an integrated dual fuse holder. It supports optional reduced leakage current versions (A/B type) and complies with IEC/EN 60601-1 for medical applications. Designed for easy installation with snap-in (S type) mounting, the module now also includes a new wire leads option for enhanced flexibility.

More Less

Digital Datasheet|

Product Features

Current Rating (Max) (A): 1, 2, 4, 6, 10
Filtering Requirements : Unfiltered
Leakage Current (Max) (250VAC, 50Hz) (µA): 0, 70, 310
Output Termination Type : FASTON, Litz Wire
Ground Choke Option : No

Available from

Product	TE Part #	Documents	Current Rating (Max)	Output Termination Type	Ground Choke Option	Leakage Current (Max) (120VAC, 60Hz)	Leakage Current (Max) (250VAC, 50Hz)
FN9262A-4-06	819952-SF	3D PDF	4 A	FASTON	No	40 µA	70 µA
FN9262S-4-06	819947-SF	3D PDF	4 A	FASTON	No	180 µA	310 µA
FN9262A-1-06	819950-SF	3D PDF	1 A	FASTON	No	40 µA	70 µA
FN9262A-1-07	823258-SF		1 A	Litz Wire	No	40 µA	70 µA
FN9262A-4-07	823260-SF		4 A	Litz Wire	No	40 µA	70 µA
FN9262A-6-07	823261-SF		6 A	Litz Wire	No	40 µA	70 µA
FN9262A-10-07	823262-SF		10 A	Litz Wire	No	40 µA	70 µA
FN9262-4-06	819942-SF	3D PDF	4 A	FASTON	No	180 µA	310 µA
FN9262SA-1-06	819955-SF	3D PDF	1 A	FASTON	No	40 µA	70 µA
FN9262B-1-07	822623-SF		1 A	Litz Wire	No	0 µA	0 µA
FN9262SB-2-07	822634-SF		2 A	Litz Wire	No	0 µA	0 µA
FN9262A-2-07	823259-SF		2 A	Litz Wire	No	40 µA	70 µA
FN9262B-4-06	819962-SF	3D PDF	4 A	FASTON	No	0 µA	0 µA
FN9262SA-2-06	819956-SF	3D PDF	2 A	FASTON	No	40 µA	70 µA
FN9262B-6-06	819963-SF	3D PDF	6 A	FASTON	No	0 µA	0 µA
FN9262A-10-06	819954-SF	3D PDF	10 A	FASTON	No	40 µA	70 µA
FN9262A-2-06	819951-SF	3D PDF	2 A	FASTON	No	40 µA	70 µA
FN9262-6-06	819943-SF	3D PDF	6 A	FASTON	No	180 µA	310 µA
FN9262S-1-06	819945-SF	3D PDF	1 A	FASTON	No	180 µA	310 µA
FN9262S-10-06	819949-SF	3D PDF	10 A	FASTON	No	180 µA	310 µA
FN9262SA-4-06	819957-SF	3D PDF	4 A	FASTON	No	40 µA	70 µA
FN9262B-1-06	819960-SF	3D PDF	1 A	FASTON	No	0 µA	0 µA
FN9262B-10-06	819964-SF	3D PDF	10 A	FASTON	No	0 µA	0 µA
FN9262-10-07	822592-SF		10 A	Litz Wire	No	180 µA	310 µA
FN9262-1-07	822588-SF		1 A	Litz Wire	No	180 µA	310 µA
FN9262SA-6-06	819958-SF	3D PDF	6 A	FASTON	No	40 µA	70 µA
FN9262S-6-07	822631-SF		6 A	Litz Wire	No	180 µA	310 µA
FN9262A-6-06	819953-SF	3D PDF	6 A	FASTON	No	40 µA	70 µA
FN9262B-2-06	819961-SF	3D PDF	2 A	FASTON	No	0 µA	0 µA
FN9262-2-07	822589-SF		2 A	Litz Wire	No	180 µA	310 µA
FN9262B-10-07	822627-SF		10 A	Litz Wire	No	0 µA	0 µA
FN9262-6-07	822591-SF		6 A	Litz Wire	No	180 µA	310 µA
FN9262S-4-07	822630-SF		4 A	Litz Wire	No	180 µA	310 µA
FN9262B-4-07	822625-SF		4 A	Litz Wire	No	0 µA	0 µA
FN9262S-1-07	822628-SF		1 A	Litz Wire	No	180 µA	310 µA
FN9262S-2-07	822629-SF		2 A	Litz Wire	No	180 µA	310 µA
FN9262SB-1-07	822633-SF		1 A	Litz Wire	No	0 µA	0 µA
FN9262-1-06	819940-SF	3D PDF	1 A	FASTON	No	180 µA	310 µA
FN9262B-2-07	822624-SF		2 A	Litz Wire	No	0 µA	0 µA
FN9262B-6-07	822626-SF		6 A	Litz Wire	No	0 µA	0 µA
FN9262S-10-07	822632-SF		10 A	Litz Wire	No	180 µA	310 µA
FN9262SB-4-07	822635-SF		4 A	Litz Wire	No	0 µA	0 µA
FN9262SB-10-07	822637-SF		10 A	Litz Wire	No	0 µA	0 µA
FN9262-2-06	819941-SF	3D PDF	2 A	FASTON	No	180 µA	310 µA
FN9262-10-06	819944-SF	3D PDF	10 A	FASTON	No	180 µA	310 µA
FN9262SB-6-06	819968-SF	3D PDF	6 A	FASTON	No	0 µA	0 µA
FN9262SB-10-06	819969-SF	3D PDF	10 A	FASTON	No	0 µA	0 µA
FN9262SB-2-06	819966-SF	3D PDF	2 A	FASTON	No	0 µA	0 µA
FN9262-4-07	822590-SF		4 A	Litz Wire	No	180 µA	310 µA
FN9262S-2-06	819946-SF	3D PDF	2 A	FASTON	No	180 µA	310 µA

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Filter Type Power Entry Module
Level Of Filtering Inductor & Capacitor
Filtering Requirements Unfiltered
Output Termination Type FASTON, Litz Wire
Ground Choke Option No

Electrical Characteristics

Inductance L1 (µH) 1.15, 3, 7, 20, 40
Overvoltage Category II
Capacitance Cx1 .22
Capacitance Cy1 .47, 2.2
Current Rating (Max) (A) 1, 2, 4, 6, 10
Leakage Current (Max) (250VAC, 50Hz) (µA) 0, 70, 310
Leakage Current (Max) (120VAC, 60Hz) (µA) 0, 40, 180

Body Features

Product Weight 55 g [ 1.94 oz ]

Dimensions

Product Width 35 mm [ 1.37 in ]
Product Length (mm) 34, 46
Product Length (in) 1.33, 1.81
Product Height 46.5 mm [ 1.83 in ]

Operation/Application

Cooling Method Natural Convection

Industry Standards

Certified To CSA 22.2 No. 8-13, GB/T 15287, GB/T 15288, IEC/EN 60939-3, UL 60939-3
Pollution Degree PD2
IP Rating IP40
UL Flammability Rating UL 94V-0

Reference Number

TE Internal Number CAT-PC9-F9262
