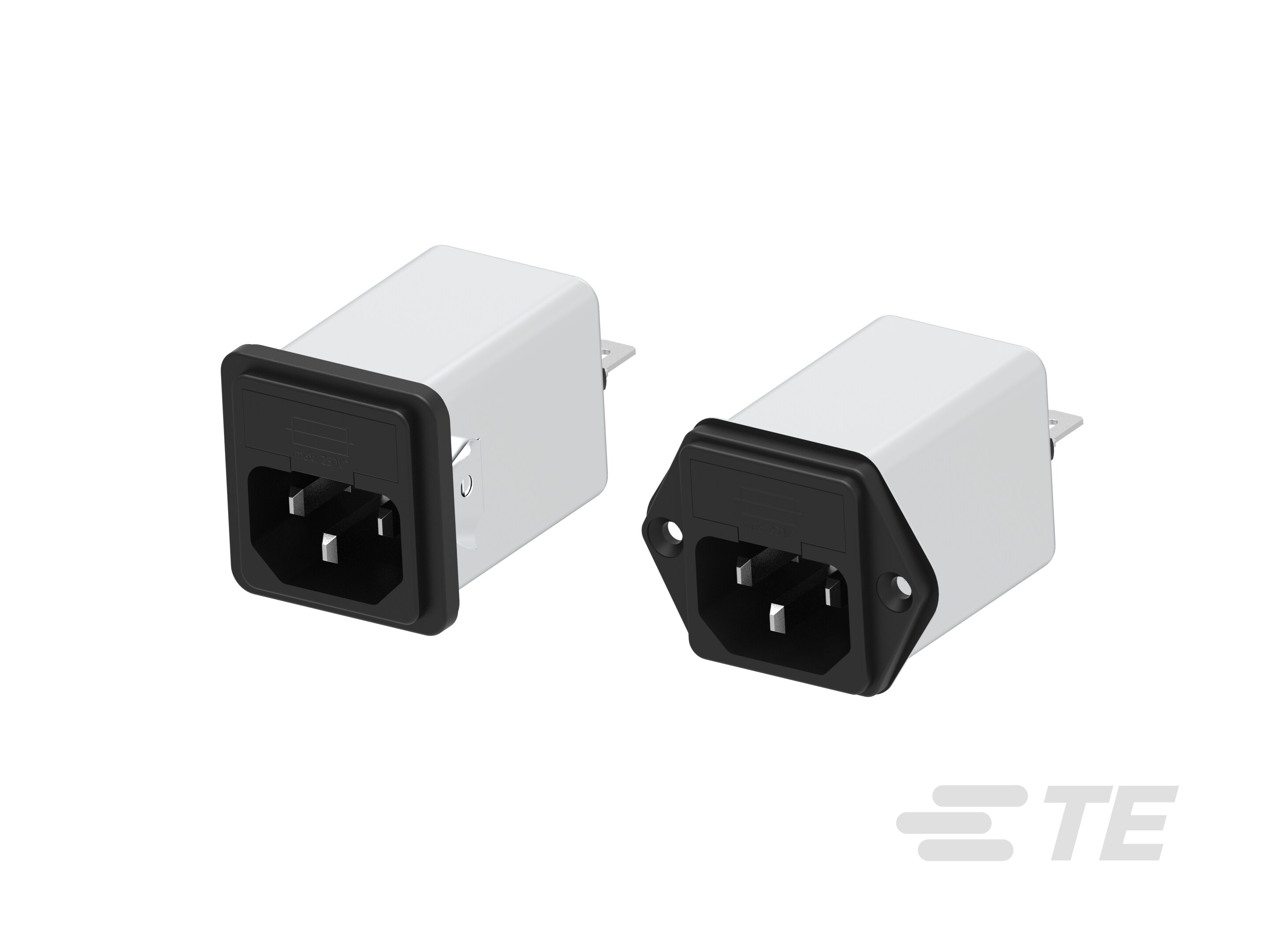

FN9260 / FN9261 Power Entry Modules with EMC Filter – General-Purpose Solution with Fuse Options

FN9260 / FN9261 Power Entry Modules with EMC Filter – General-Purpose Solution with Fuse Options-CAT-PC9-F9260
The FN9260 and FN9261 deliver rated currents up to 10 A with integrated single or dual fuse holders for flexible protection. These modules offer good attenuation performance and comply with IEC/EN 60601-1, including optional reduced leakage current versions (A/B type). Available in snap-in (S type) versions, they now also feature a new wire leads option for added installation flexibility.
More Less

Product Features

  • Current Rating (Max) (A): 1, 2, 4, 6, 10

  • Filtering Requirements : Unfiltered

  • Leakage Current (Max) (250VAC, 50Hz) (µA): 0, 30, 70, 310

  • Output Termination Type : FASTON, Litz Wire

  • Leakage Current (Max) (120VAC, 60Hz) (µA): 0, 40, 180

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filter Type  Power Entry Module

  • Level Of Filtering  Inductor & Capacitor

  • Filtering Requirements  Unfiltered

  • Output Termination Type  FASTON, Litz Wire

Configuration Features

  • Fuse Options  Dual

Electrical Characteristics

  • Inductance L1 (µH) .2, .3, 1, 2.7, 5.3

  • Overvoltage Category  II

  • Capacitance Cx1  .1

  • Capacitance Cy1  .22, .47, 2.2

  • Current Rating (Max) (A) 1, 2, 4, 6, 10

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 0, 30, 70, 310

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 0, 40, 180

Body Features

  • Product Weight  55 g [ 1.94 oz ]

Dimensions

  • Product Width (mm) 27.8, 35, 46, 46.3

  • Product Width (in) 1.09, 1.37, 1.81, 1.82

  • Product Length (mm) 32, 34, 46, 56.1, 60.8

  • Product Length (in) 1.25, 1.33, 1.81, 2.2, 2.39

  • Product Height (mm) 35, 35.3, 44.4, 46.5, 55.5

  • Product Height (in) 1.37, 1.38, 1.74, 1.83, 2.18

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • Certified To  CSA 22.2 No. 8-13, GB/T 15287, GB/T 15288, IEC/EN 60939-3, UL 60939-3

  • Pollution Degree  PD2

  • IP Rating  IP40

  • UL Flammability Rating  UL 94V-0

Reference Number

  • TE Internal Number CAT-PC9-F9260
