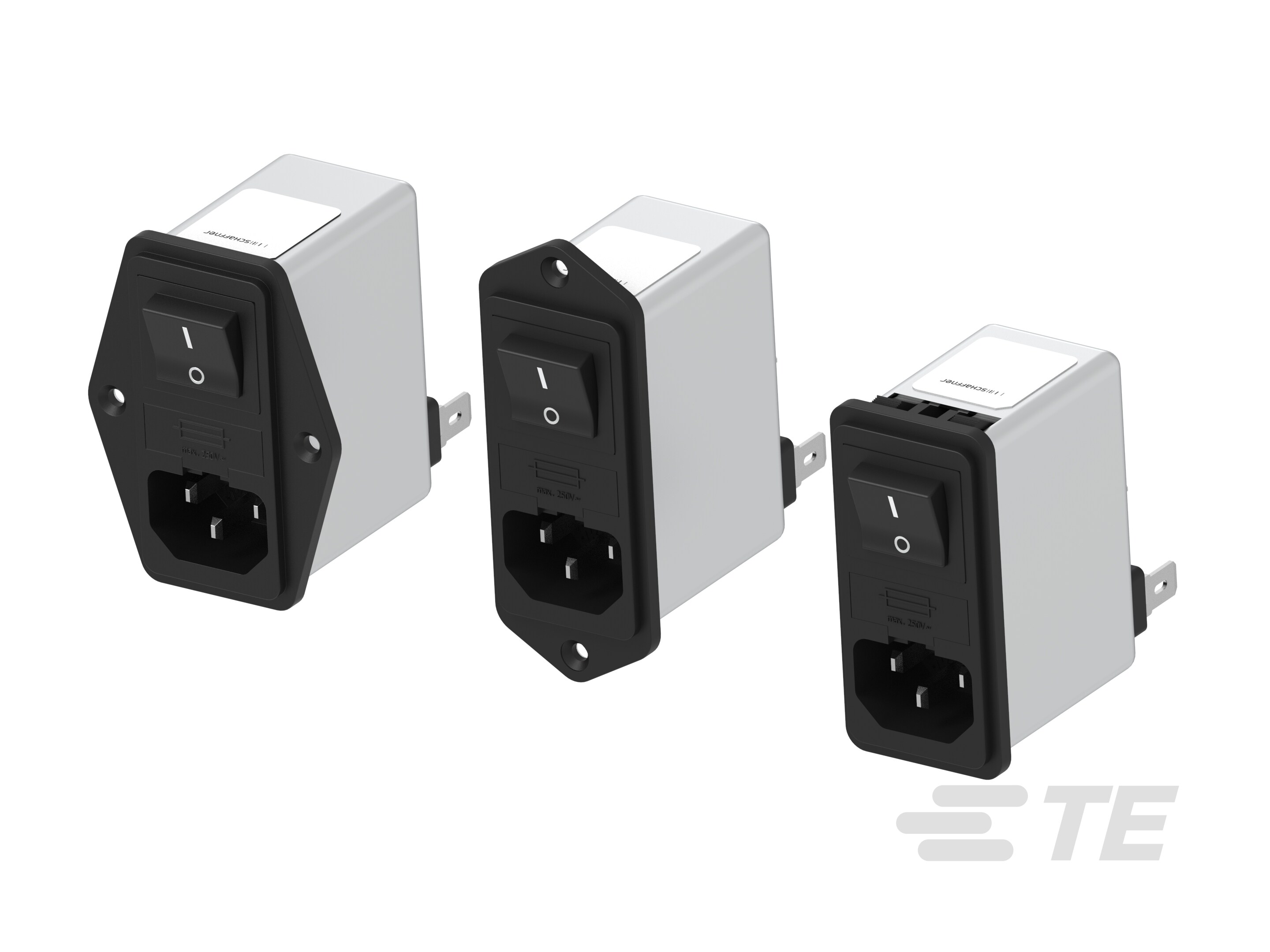

Power Entry Module with EMC Filter FN280, Compact Filtered Power Entry Solution

The FN280 series offers a compact, general-purpose power entry module with integrated EMC filtering, 2-pole rocker switch, and fuse holder for ø5 x 20 mm fuses. Designed for applications requiring compliance with IEC/EN 60601-1, it supports rated currents up to 10 A and is available in medical (B type) and earth line choke (E type) versions.

More Less

Datasheet |
Digital Datasheet|

Connect with Us

Product Features

Filtering Requirements : Unfiltered
Current Rating (Max) (A): 1 | 2 | 4 | 6 | 10
Output Termination Type : FASTON
Pollution Degree : PD2
IP Rating : IP40

Available from

Product	TE Part #	Documents	Filtering Requirements	Current Rating (Max)	Pollution Degree	IP Rating	UL Flammability Rating	Leakage Current (Max) (250VAC, 50Hz)	EU ELV Compliance
FN283E-4-06	800341-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	373 µA	-
FN284EB-2-06	810234-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	2 µA	-
FN282B-2-06-2	822756-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-
FN286B-1-06	801117-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	2 µA	-
FN281B-2-06	800744-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	2 µA	-
FN284EB-6-06	820971-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-0	0 µA	-
FN284B-2-06-2	823372-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	2 µA	-
FN284B-4-06	800984-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	2 µA	-
FN286B-10-06	804956-SF	3D PDF	Unfiltered	10 A	PD2	IP40	UL 94V-2	2 µA	-
FN283-4-06	800333-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	373 µA	-
FN284E-4-06	800345-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	373 µA	-
FN281-1-06	800360-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	373 µA	-
FN284B-1-06	800391-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	2 µA	-
FN282B-1-06	801119-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	2 µA	-
FN284B-2-06	800390-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	2 µA	-
FN282B-4-06	802039-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	2 µA	-
FN282B-10-06	801401-SF	3D PDF	Unfiltered	10 A	PD2	IP40	UL 94V-2	2 µA	-
FN282-6-06	800367-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-2	373 µA	-
FN283E-2-06	800340-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-
FN281-2-06	800361-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-
FN281-4-06	800362-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	373 µA	-
FN282-2-06	800365-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-
FN284-2-06	800336-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-
FN283E-1-06	800339-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	373 µA	-
FN284E-2-06	800344-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-
FN285-1-06	800347-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	373 µA	-
FN285-2-06	800348-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-
FN286-1-06	800351-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	373 µA	-
FN286-4-06	800353-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	373 µA	-
FN282B-2-06	800751-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	2 µA	-
FN286B-6-06	800917-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-2	2 µA	-
FN284-10-06	801129-SF	3D PDF	Unfiltered	10 A	PD2	IP40	UL 94V-2	373 µA	-
FN283-10-06	801383-SF	3D PDF	Unfiltered	10 A	PD2	IP40	UL 94V-2	373 µA	-
FN286-10-06	801368-SF	3D PDF	Unfiltered	10 A	PD2	IP40	UL 94V-2	373 µA	-
FN283-2-06	800332-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-
FN284-4-06	800337-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	373 µA	-
FN284E-1-06	800343-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	373 µA	-
FN285-4-06	800349-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	373 µA	-
FN281-6-06	800363-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-2	373 µA	-
FN282-1-06	800364-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	373 µA	-
FN282-4-06	800366-SF	3D PDF	Unfiltered	4 A	PD2	IP40	UL 94V-2	373 µA	-
FN285-10-06	800525-SF	3D PDF	Unfiltered	10 A	PD2	IP40	UL 94V-2	373 µA	-
FN285-6-06	800350-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-2	373 µA	-
FN283-1-06	800331-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	373 µA	-
FN283-6-06	800334-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-2	373 µA	-
FN284-1-06	800335-SF	3D PDF	Unfiltered	1 A	PD2	IP40	UL 94V-2	373 µA	-
FN284-6-06	800338-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-2	373 µA	-
FN283E-6-06	800342-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-2	373 µA	-
FN284E-6-06	800346-SF	3D PDF	Unfiltered	6 A	PD2	IP40	UL 94V-2	373 µA	-
FN286-2-06	800352-SF	3D PDF	Unfiltered	2 A	PD2	IP40	UL 94V-2	373 µA	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Filter Switch Type DPST
Level Of Filtering Inductor & Capacitor
Filtering Requirements Unfiltered
Output Termination Type FASTON

Electrical Characteristics

Inductance L1 (µH) .34 | .45 | 1 | 2 | 7.5
Overvoltage Category II
Capacitance Cx1 220
Capacitance Cy1 2.2
Current Rating (Max) (A) 1 | 2 | 4 | 6 | 10
Leakage Current (Max) (250VAC, 50Hz) (µA) 0 | 2 | 373

Body Features

Product Weight (g) 90 | 100
Product Weight (oz) 3.17 | 3.52 | 3.53

Dimensions

Product Width 28.5 mm [ 1.12 in ]
Product Length 59.7 mm [ 2.35 in ]
Product Height 48.8 mm [ 1.92 in ]

Operation/Application

Cooling Method Natural Convection

Industry Standards

Certified To CSA 22.2 No. 8 1986 | IEC/EN 60939 | UL 1283
Pollution Degree PD2
IP Rating IP40
UL Flammability Rating UL 94V-0 | UL 94V-2

Reference Number

TE Internal Number CAT-PC9-F280
