FN2660

FN2660-CAT-PC9-F2660

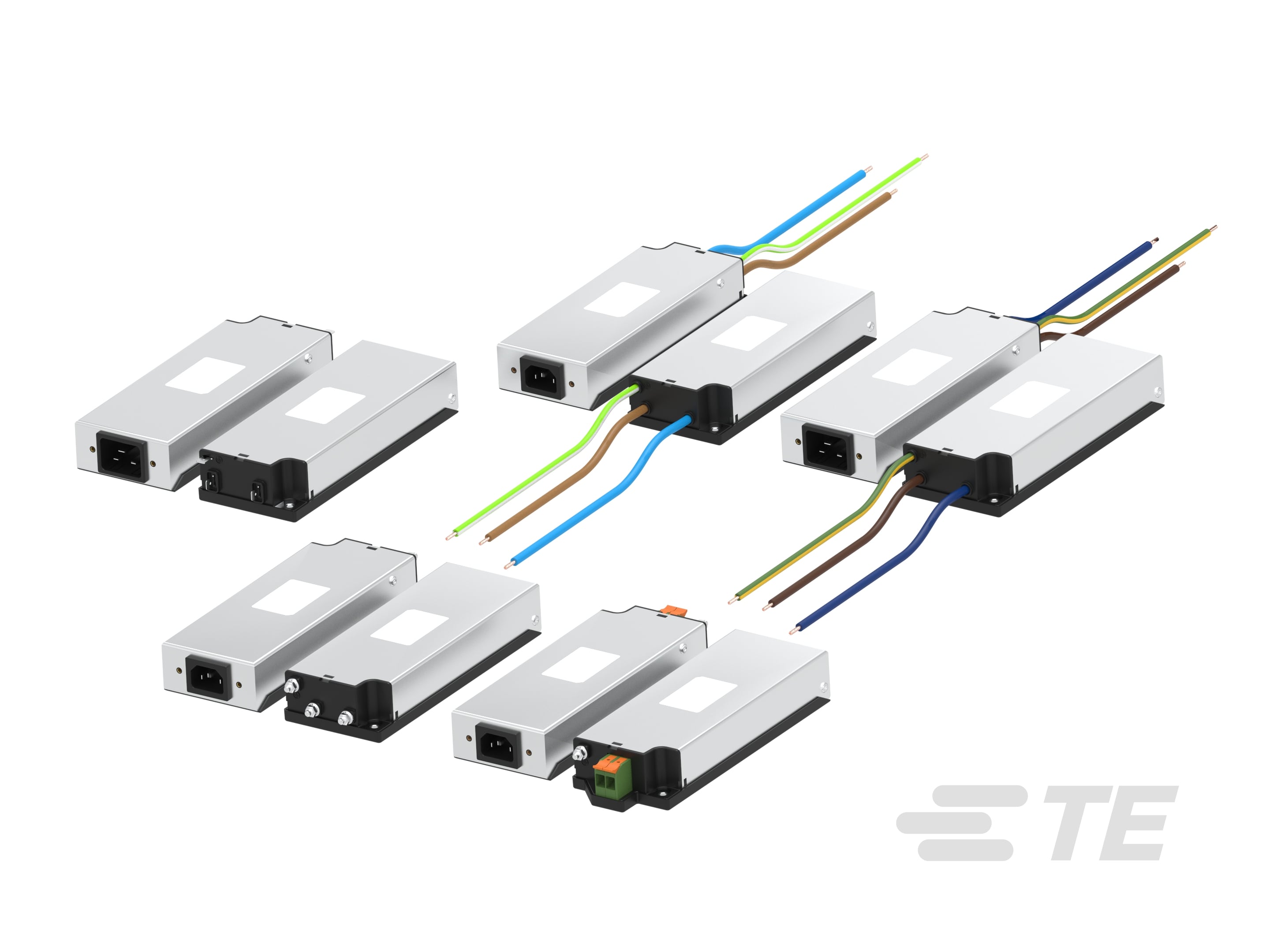

The FN2660 series provides robust IEC inlet filtering for robotics, data centers, and compact rack applications. With 2-stage filter performance, a voltage rating up to 250 VAC, and multiple load-side terminal options—fast-on, wire leads, bolt, and clamps—this low-profile solution fits within 1 HU of a 19" rack and operates reliably up to 40 °C.
More Less

Product Features

  • Current Rating (Max) (A): 10, 15, 16, 20

  • Filtering Requirements : Unfiltered

  • Leakage Current (Max) (250VAC, 50Hz) (µA): 130, 350

  • Output Termination Type : FASTON, Litz Wire, Terminal Block, Threaded Stud

  • Leakage Current (Max) (120VAC, 60Hz) (µA): 200

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filter Type  IEC Inlet Filter

  • Level Of Filtering  Inductor & Capacitor

  • Filtering Requirements  Unfiltered

  • Output Termination Type  FASTON, Litz Wire, Terminal Block, Threaded Stud

Electrical Characteristics

  • Inductance L1 (µH) 2.4, 4, 8.3

  • Overvoltage Category  II

  • Capacitance Cx1  1

  • Inductance L2 (µH) 2.4, 4, 8.3

  • Capacitance Cx2  .47

  • Capacitance Cy1  2.2

  • Capacitance Cy2  2.2

  • Electrical Resistance to Ground (kΩ) 680

  • Current Rating (Max) (A) 10, 15, 16, 20

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 130, 350

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 200

Body Features

  • Product Weight (g) 460, 464, 480, 484, 493, 498, 540, 543

  • Product Weight (oz) 16.22, 16.36, 16.93, 17.07, 17.39, 17.56, 19.04, 19.15

Dimensions

  • Product Width  73 mm [ 2.87 in ]

  • Product Length  184.7 mm [ 7.27 in ]

  • Product Height  35 mm [ 1.37 in ]

Operation/Application

  • Cooling Method  Natural Convection

  • Operating Altitude (Max) (m) 2000

Industry Standards

  • Certified To  GB/T 15287, IEC/EN 60939, UL 60939-3

  • Pollution Degree  PD2

  • IP Rating  IP00

  • UL Flammability Rating  UL 94V-0

Reference Number

  • TE Internal Number CAT-PC9-F2660
