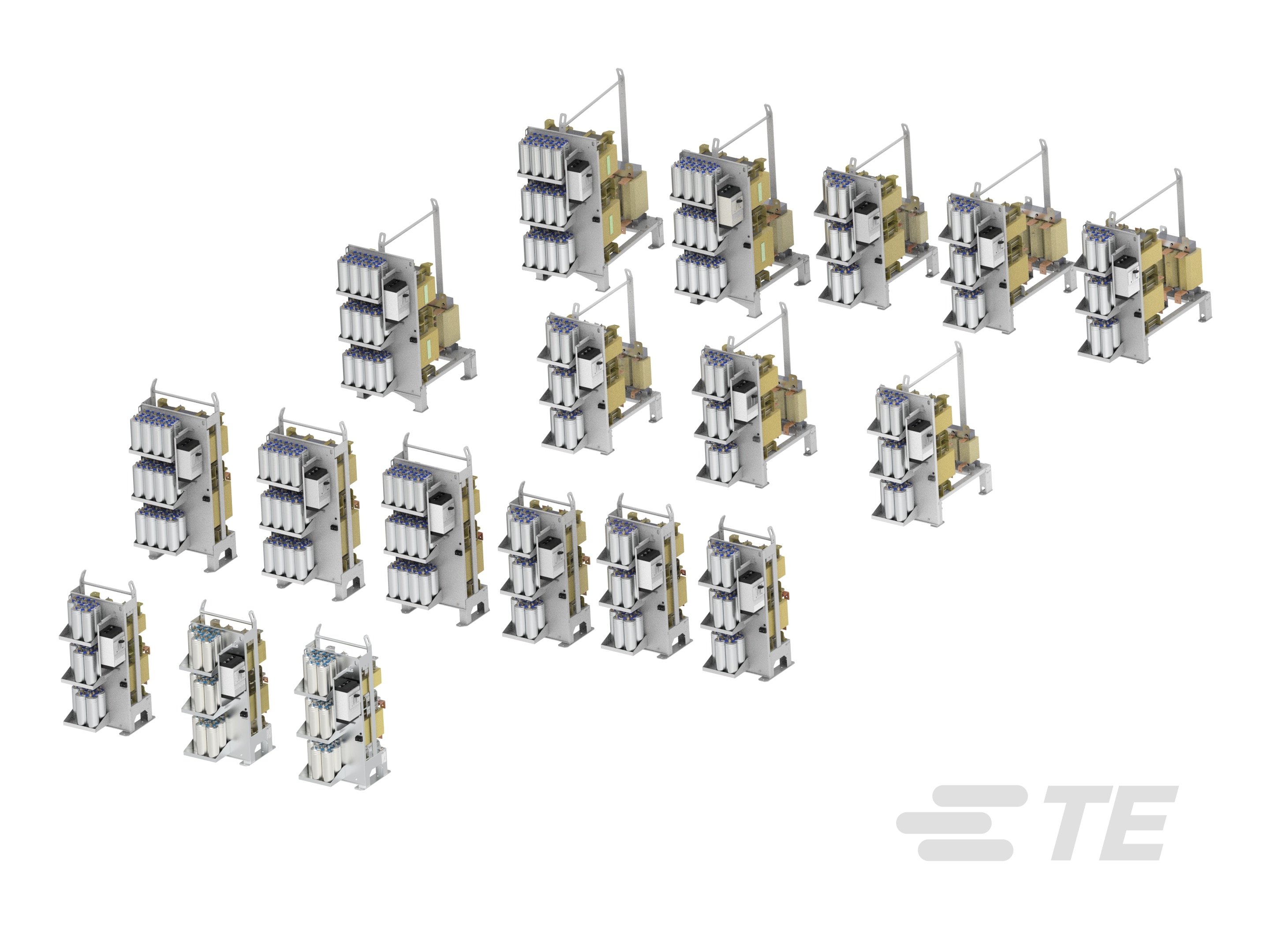

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  Busbar

  • Output Termination Type  Busbar

Electrical Characteristics

  • Short Circuit Current Rating (kA) 100

  • Overvoltage Category  III

  • Operating Voltage (Max) (VAC) 500

  • Motor Drive Input Current (A) 472, 537, 565, 595, 630, 656, 701, 773, 856, 947

  • Rated Load Power (kW) 260, 300, 315, 335, 355, 370, 400, 450, 500, 560

Body Features

  • Product Weight (g) 220000, 245000, 250000, 270000, 272000, 276000, 288000, 295000, 320000, 328000, 360000, 366000, 385000, 410000

Mechanical Attachment

  • Product Mount Type  Floor Mount

Dimensions

  • Product Width (mm) 505, 557

  • Product Width (in) 19.88, 21.92

  • Product Length (mm) 650, 680, 890, 1060

  • Product Length (in) 25.59, 26.77, 35.03, 41.73

  • Product Height (mm) 1120, 1320

  • Product Height (in) 44.09, 51.96

Usage Conditions

  • Compatible with Motor Drive Type  6 Pulse Diode Rectifier & SCR

  • Rated Voltage & Power Efficiency  >98%

  • Required DC Line Inductance (Min)  .05, .06, .07, .08, .09

Operation/Application

  • Target THDi @ Rated Power (%) <8

  • Cooling Method  Active Air Cooling

  • Operating Altitude (Max) (m) 2000

Industry Standards

  • Certified To  EN 60076-6, UL/IEC/EN 61800-5-1

  • Pollution Degree  PD3

  • UL Flammability Rating  UL 94V-0

  • IP Rating  IP00

Other

  • Frame Size Code  L08, L10, L12, S08, S10, S12

Reference Number

  • TE Internal Number CAT-PA8-F3480
