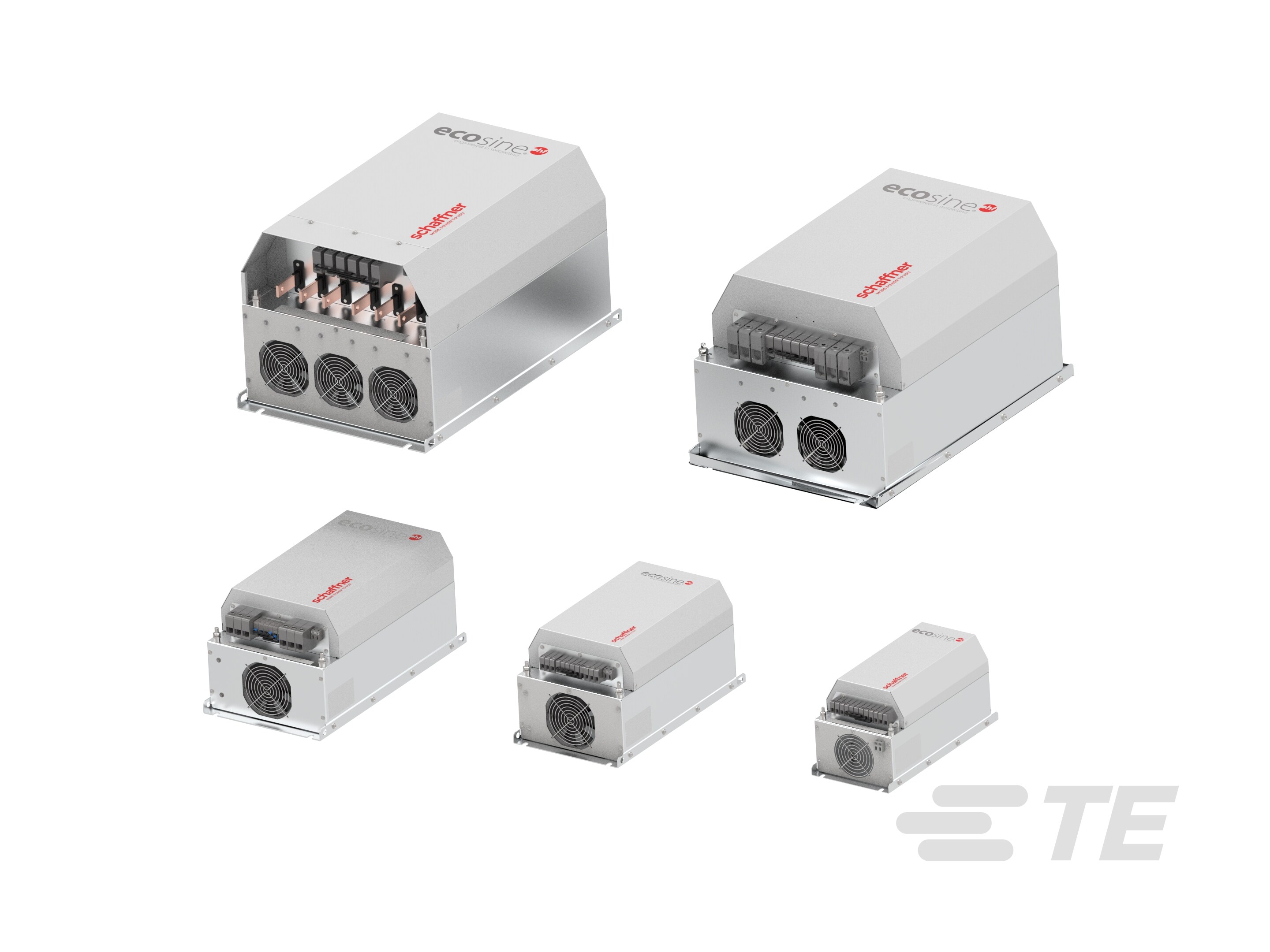

Product Type Features
-
Input Termination Type
Busbar | Terminal Block
-
Output Termination Type
Busbar | Terminal Block
Electrical Characteristics
-
Short Circuit Current Rating (kA)
100
-
Overvoltage Category
III
-
Operating Voltage (Max) (VAC)
480
-
Motor Drive Input Current (A)
6.7 | 10 | 13.4 | 20 | 27 | 34 | 41 | 54 | 67 | 81 | 99 | 131 | 162 | 191 | 253 | 311 | 368
-
Rated Load Power (kW)
3.7 | 5.6 | 7.5 | 11.2 | 14.9 | 19 | 22 | 30 | 37 | 45 | 56 | 75 | 93 | 112 | 149 | 186 | 224
Body Features
-
Product Weight (g)
9000 | 10000 | 13300 | 14700 | 16200 | 18000 | 18300 | 19800 | 20900 | 23400 | 25600 | 28200 | 33500 | 37000 | 40000 | 42500 | 43000 | 45200 | 46000 | 48500 | 78000 | 83000 | 83500 | 88500 | 91500 | 97500 | 101000 | 109000 | 112000 | 120000 | 134000 | 142000
Mechanical Attachment
-
Product Mount Type
Wall Mount
Dimensions
-
Product Width (mm)
185 | 250 | 280 | 450
-
Product Width (in)
7.28 | 9.84 | 11.02 | 17.71
-
Product Length (mm)
349 | 350 | 402 | 403 | 467 | 468 | 522 | 523 | 631 | 633
-
Product Length (in)
13.74 | 13.77 | 15.82 | 15.86 | 18.38 | 18.42 | 20.55 | 20.59 | 24.84 | 24.92
-
Product Height (mm)
170 | 185 | 190 | 220 | 230 | 238 | 248 | 380 | 385 | 495 | 498
-
Product Height (in)
6.69 | 7.28 | 7.48 | 8.66 | 9.05 | 9.37 | 9.76 | 14.96 | 15.15 | 19.48 | 19.6
Usage Conditions
-
Compatible with Motor Drive Type
6 Pulse Diode Rectifier & SCR
-
Rated Voltage & Power Efficiency
>98%
Operation/Application
-
Target THDi @ Rated Power (%)
10 – 15
-
Cooling Method
Active Air Cooling | Natural Convection
-
Operating Altitude (Max) (m)
2000
Industry Standards
-
Certified To
EN 61558-2-20 | UL/EN 61800-5-1
-
Pollution Degree
PD2
-
IP Rating
IP00 | IP20
-
UL Flammability Rating
UL 94V-2
Other
-
Frame Size Code
A | B | C | D | E | F | G
Reference Number
-
TE Internal Number
CAT-PA8-F3458
