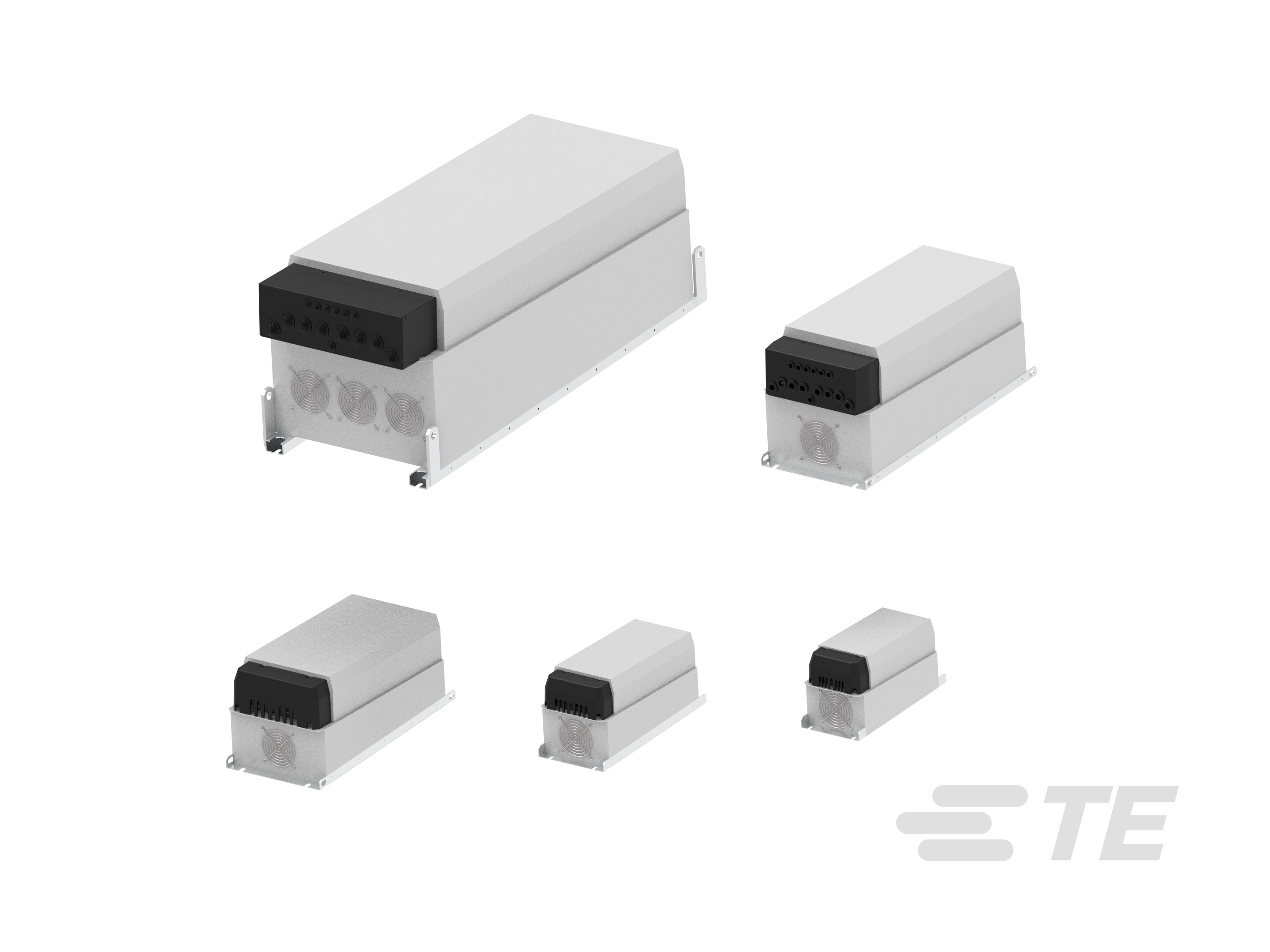

Product Type Features
-
Input Termination Type
Ring Terminal
-
Output Termination Type
Ring Terminal
Electrical Characteristics
-
Short Circuit Current Rating (kA)
100
-
Overvoltage Category
III
-
Operating Voltage (Max) (VAC)
480
-
Motor Drive Input Current (A)
2 | 4 | 7 | 11 | 14 | 21 | 27 | 34 | 44 | 52 | 66 | 83 | 103 | 128 | 165 | 208 | 240 | 320 | 403
-
Rated Load Power (kW)
1.1 | 2.2 | 3.7 | 5.6 | 7.5 | 11 | 15 | 19 | 22 | 30 | 37 | 45 | 56 | 75 | 93 | 112 | 149 | 186 | 224
Body Features
-
Product Weight (g)
6000 | 7000 | 8000 | 9000 | 10000 | 11000 | 13000 | 14000 | 16000 | 17000 | 18000 | 20000 | 27000 | 31000 | 35000 | 36000 | 40000 | 46000 | 51000 | 52000 | 57000 | 59000 | 60000 | 65000 | 67000 | 82000 | 90000 | 116000 | 125000 | 137000 | 146000 | 170000 | 187000 | 204000 | 252000 | 269000
Mechanical Attachment
-
Product Mount Type
Wall Mount
Dimensions
-
Product Width (mm)
6.3 | 7.1 | 8.3 | 10.2 | 11.4 | 13.4 | 13.9 | 18.2
-
Product Width (in)
.24 | .27 | .32 | .4 | .44 | .52 | .54 | .71
-
Product Length (mm)
11.9 | 14.6 | 16.9 | 19.3 | 25 | 26.9 | 34 | 41.5
-
Product Length (in)
.46 | .57 | .66 | .75 | .98 | 1.05 | 1.33 | 1.63
-
Product Height (mm)
7.3 | 8.1 | 8.7 | 9.9 | 12.6 | 13.5 | 15.2 | 18
-
Product Height (in)
.28 | .31 | .34 | .38 | .49 | .53 | .59 | .7
Usage Conditions
-
Compatible with Motor Drive Type
6 Pulse Diode Rectifier | 6 Pulse Diode Rectifier & SCR
-
Rated Voltage & Power Efficiency
>98%
Operation/Application
-
Target THDi @ Rated Power (%)
<5
-
Cooling Method
Active Air Cooling | Natural Convection
-
Operating Altitude (Max) (m)
2000
Industry Standards
-
Certified To
EN 61558-2-20 | UL/EN 61800-5-1
-
Pollution Degree
PD3
-
IP Rating
IP00 | IP20
-
UL Flammability Rating
UL 94V-2
Other
-
Frame Size Code
A | B | C | D | E | F | G | H
Reference Number
-
TE Internal Number
CAT-PA8-F3452
