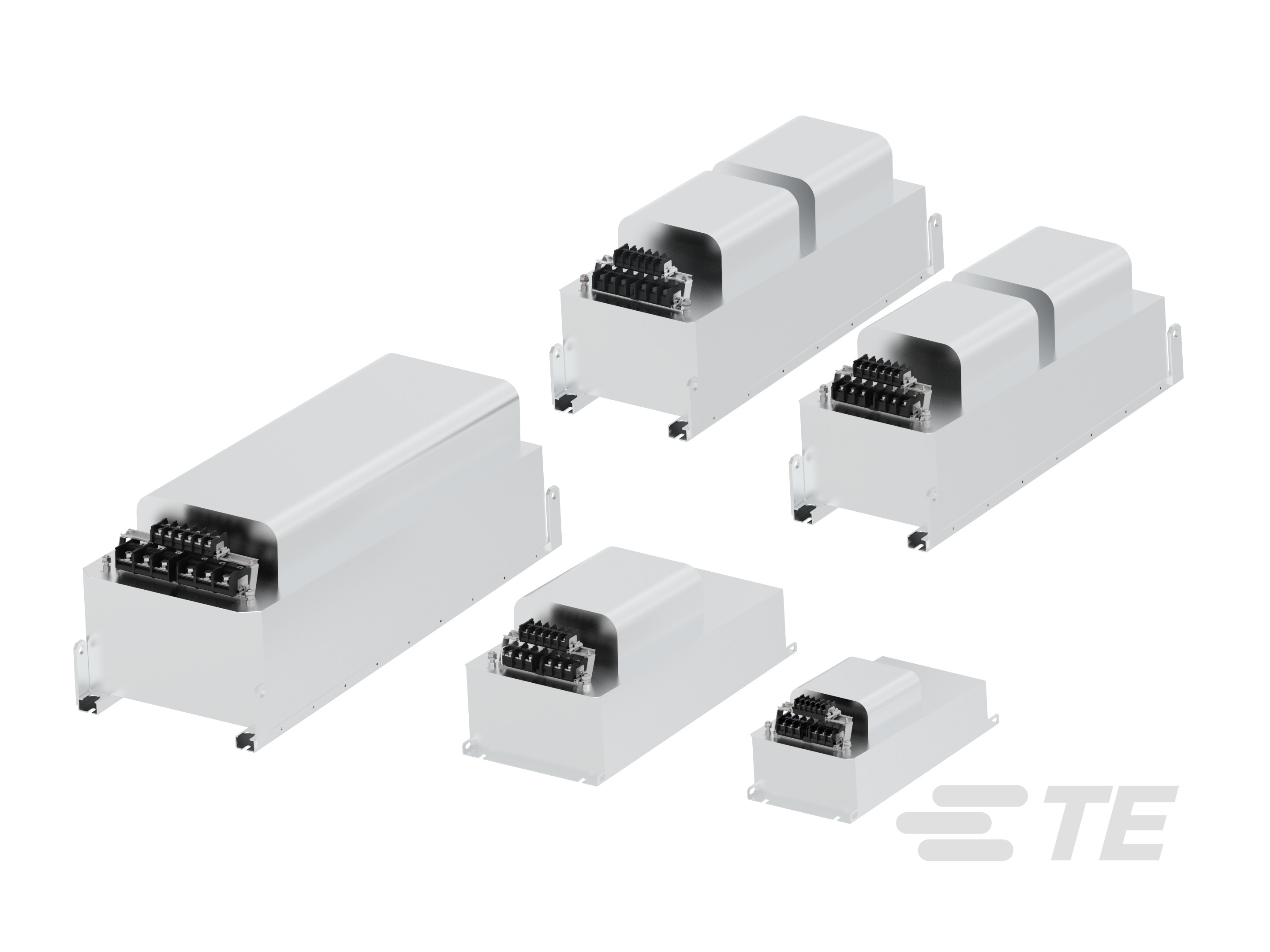

FN3451

FN3451-CAT-PA8-F3451
More Less
Connect with Us

Product Features

  • Operating Voltage (Max) (VAC): 480 | 500

  • Input Termination Type : Ring Terminal

  • Output Termination Type : Ring Terminal

  • Pollution Degree : PD3

  • IP Rating : IP00 | IP20

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  Ring Terminal

  • Output Termination Type  Ring Terminal

Electrical Characteristics

  • Short Circuit Current Rating (kA) 100

  • Overvoltage Category  III

  • Operating Voltage (Max) (VAC) 480 | 500

  • Motor Drive Input Current (A) 1.4 | 2.8 | 5.1 | 7.1 | 9.6 | 14.1 | 19.3 | 24.4 | 28 | 38.5 | 47.5 | 58 | 71 | 97 | 116 | 142 | 170 | 207 | 259 | 324 | 410

  • Rated Load Power (kW) 1.1 | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 19 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 315

Body Features

  • Product Weight (kg) 5 | 6 | 7 | 8 | 10 | 11 | 12 | 13 | 15 | 16 | 17 | 19 | 24 | 27 | 28 | 30 | 31 | 34 | 43 | 44 | 49 | 54 | 55 | 62 | 70 | 77 | 100 | 108 | 109 | 117 | 130 | 147 | 149 | 166 | 183 | 200 | 208 | 225 | 252 | 278

  • Product Weight (lb) 11.023 | 13.228 | 15.432 | 17.637 | 22.046 | 24.251 | 26.455 | 28.66 | 33.069 | 35.274 | 37.479 | 41.888 | 52.911 | 59.525 | 61.729 | 66.139 | 68.343 | 74.957 | 94.799 | 97.003 | 108.026 | 119.049 | 121.254 | 136.686 | 154.323 | 169.756 | 220.462 | 238.099 | 240.304 | 257.941 | 286.601 | 324.079 | 328.488 | 365.967 | 403.445 | 440.924 | 458.561 | 496.04 | 555.564 | 612.884

Mechanical Attachment

  • Product Mount Type  Wall Mount

Dimensions

  • Product Width (mm) 160 | 180 | 210 | 260 | 290 | 340 | 353 | 462 | 550

  • Product Width (in) 6.29 | 7.08 | 8.26 | 10.23 | 11.41 | 13.38 | 13.89 | 18.18 | 21.65

  • Product Length (mm) 302 | 370 | 430 | 491 | 635 | 863 | 1053 | 1300

  • Product Length (in) 11.88 | 14.56 | 16.92 | 19.33 | 25 | 33.97 | 41.45 | 51.18

  • Product Height (mm) 185 | 206 | 221 | 252 | 319 | 343 | 396 | 456 | 555

  • Product Height (in) 7.28 | 8.11 | 8.7 | 9.92 | 12.55 | 13.5 | 15.59 | 17.95 | 21.85

Usage Conditions

  • Compatible with Motor Drive Type  6 Pulse Diode Rectifier | 6 Pulse Diode Rectifier & SCR

  • Rated Voltage & Power Efficiency  >98%

  • Required AC Line Reactor Value (Min)  .06 | .07 | .09 | .12 | .15 | .18 | .22 | .26 | .36 | .45 | .53 | .64 | .88 | 1.02 | 1.26 | 1.82 | 2.55 | 3.48 | 4.47 | 7.85 | 16.7

  • Required DC Line Inductance (Min)  .19 | .24 | .3 | .37 | .45 | .54 | .66 | .79 | 1.08 | 1.32 | 1.6 | 1.98 | 2.69 | 3.12 | 3.95 | 5.39 | 7.9 | 10.8 | 14.8 | 26.9 | 53.9

Operation/Application

  • Target THDi @ Rated Power (%) <5

  • Cooling Method  Active Air Cooling | Natural Convection

  • Operating Altitude (Max) (m) 2000

Industry Standards

  • Certified To  EN 61558-2-20 | UL/EN 61800-5-1

  • Pollution Degree  PD3

  • IP Rating  IP00 | IP20

  • UL Flammability Rating  UL 94V-2

Other

  • Frame Size Code  A | B | C | D | E | F | G | H | J

Reference Number

  • TE Internal Number CAT-PA8-F3451
