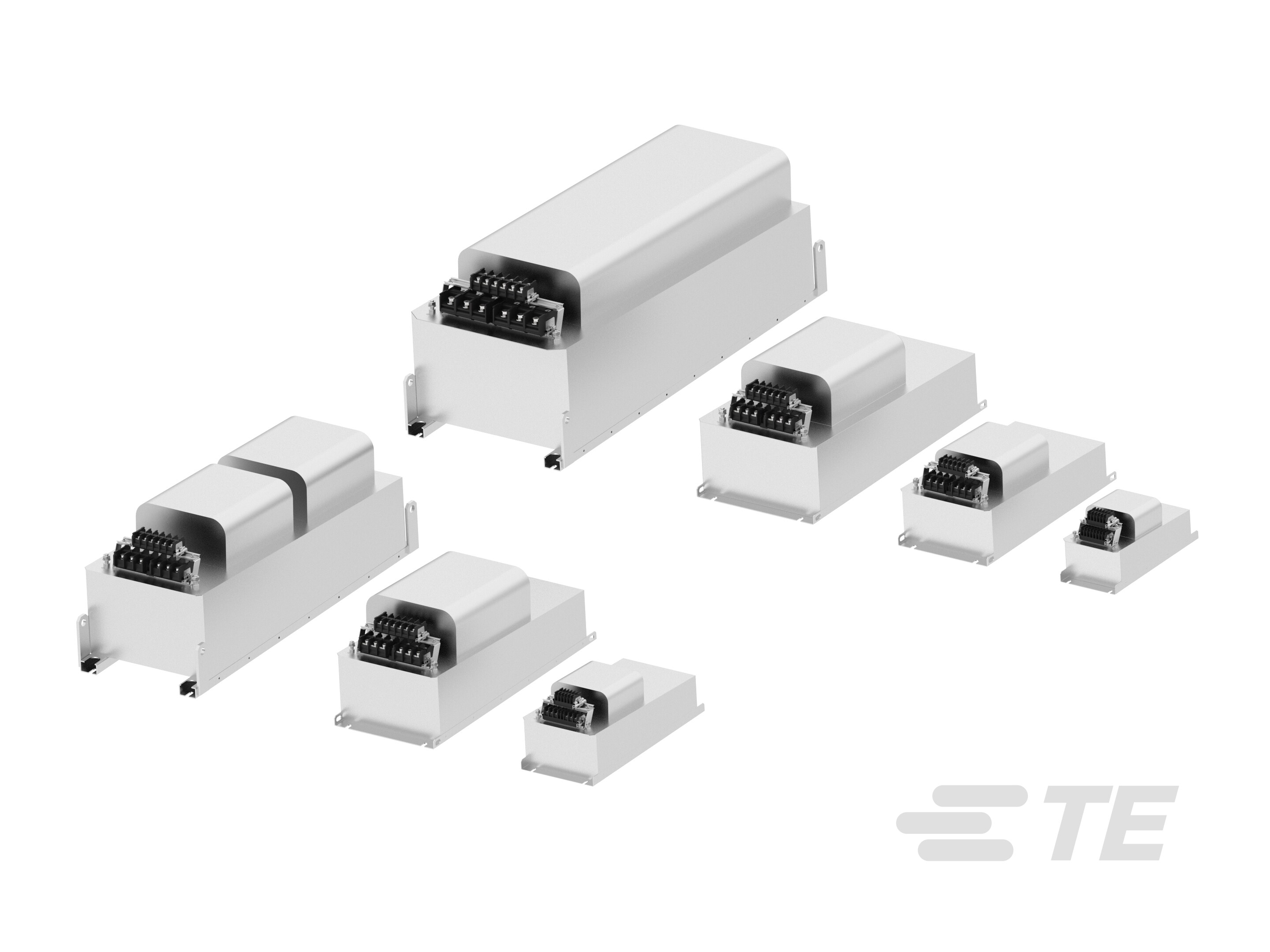

Product Type Features
-
Input Termination Type
Ring Terminal
-
Output Termination Type
Ring Terminal
Electrical Characteristics
-
Short Circuit Current Rating (kA)
100
-
Overvoltage Category
III
-
Operating Voltage (Max) (VAC)
415
-
Motor Drive Input Current (A)
1.4 | 2.9 | 4.8 | 7.2 | 9.6 | 14.4 | 19.3 | 24 | 29 | 38.5 | 48 | 58 | 72 | 97 | 120 | 144 | 192 | 240 | 290
-
Rated Load Power (kW)
.9 | 1.7 | 2.9 | 4.5 | 5.9 | 8.7 | 11.9 | 14.9 | 15 | 17.4 | 23.8 | 29.3 | 35.6 | 44.3 | 59.4 | 73.6 | 88.7 | 118 | 147 | 177
Body Features
-
Product Weight (g)
5000 | 7000 | 8000 | 9000 | 11000 | 12000 | 13000 | 14000 | 16000 | 18000 | 23000 | 26000 | 28000 | 30000 | 34000 | 37000 | 42000 | 44000 | 48000 | 49000 | 55000 | 58000 | 68000 | 76000 | 97000 | 108000 | 113000 | 125000 | 138000 | 152000 | 160000 | 173000 | 205000 | 226000
Mechanical Attachment
-
Product Mount Type
Wall Mount
Dimensions
-
Product Width (mm)
6.3 | 7.1 | 8.3 | 10.2 | 11.4 | 13.4 | 13.9 | 18.2
-
Product Width (in)
.24 | .27 | .32 | .4 | .44 | .52 | .54 | .71
-
Product Length (mm)
11.9 | 14.6 | 16.9 | 19.3 | 25 | 26.9 | 34 | 41.5
-
Product Length (in)
.46 | .57 | .66 | .75 | .98 | 1.05 | 1.33 | 1.63
-
Product Height (mm)
7.3 | 8.1 | 8.7 | 9.9 | 12.6 | 13.5 | 15.2 | 18
-
Product Height (in)
.28 | .31 | .34 | .38 | .49 | .53 | .59 | .7
Usage Conditions
-
Compatible with Motor Drive Type
6 Pulse Diode Rectifier | 6 Pulse Diode Rectifier & SCR
-
Rated Voltage & Power Efficiency
>98%
-
Required AC Line Reactor Value (Min)
.06 | .07 | .09 | .12 | .14 | .18 | .24 | .29 | .36 | .43 | .6 | .7 | .88 | 1.2 | 1.77 | 2.37 | 3.6 | 6.14 | 11.61
-
Required DC Line Inductance (Min)
.17 | .21 | .26 | .35 | .42 | .52 | .7 | .87 | 1.06 | 1.3 | 1.78 | 2.06 | 2.61 | 3.56 | 5.25 | 7.04 | 10.7 | 18.2 | 21.5
Operation/Application
-
Target THDi @ Rated Power (%)
<5
-
Cooling Method
Active Air Cooling | Natural Convection
-
Operating Altitude (Max) (m)
2000
Industry Standards
-
Certified To
EN 61558-2-20 | UL/EN 61800-5-1
-
Pollution Degree
PD3
-
UL Flammability Rating
UL 94V-2
-
IP Rating
IP00 | IP20
Other
-
Frame Size Code
A | B | C | D | E | F | G | H
Reference Number
-
TE Internal Number
CAT-PA8-F3443
