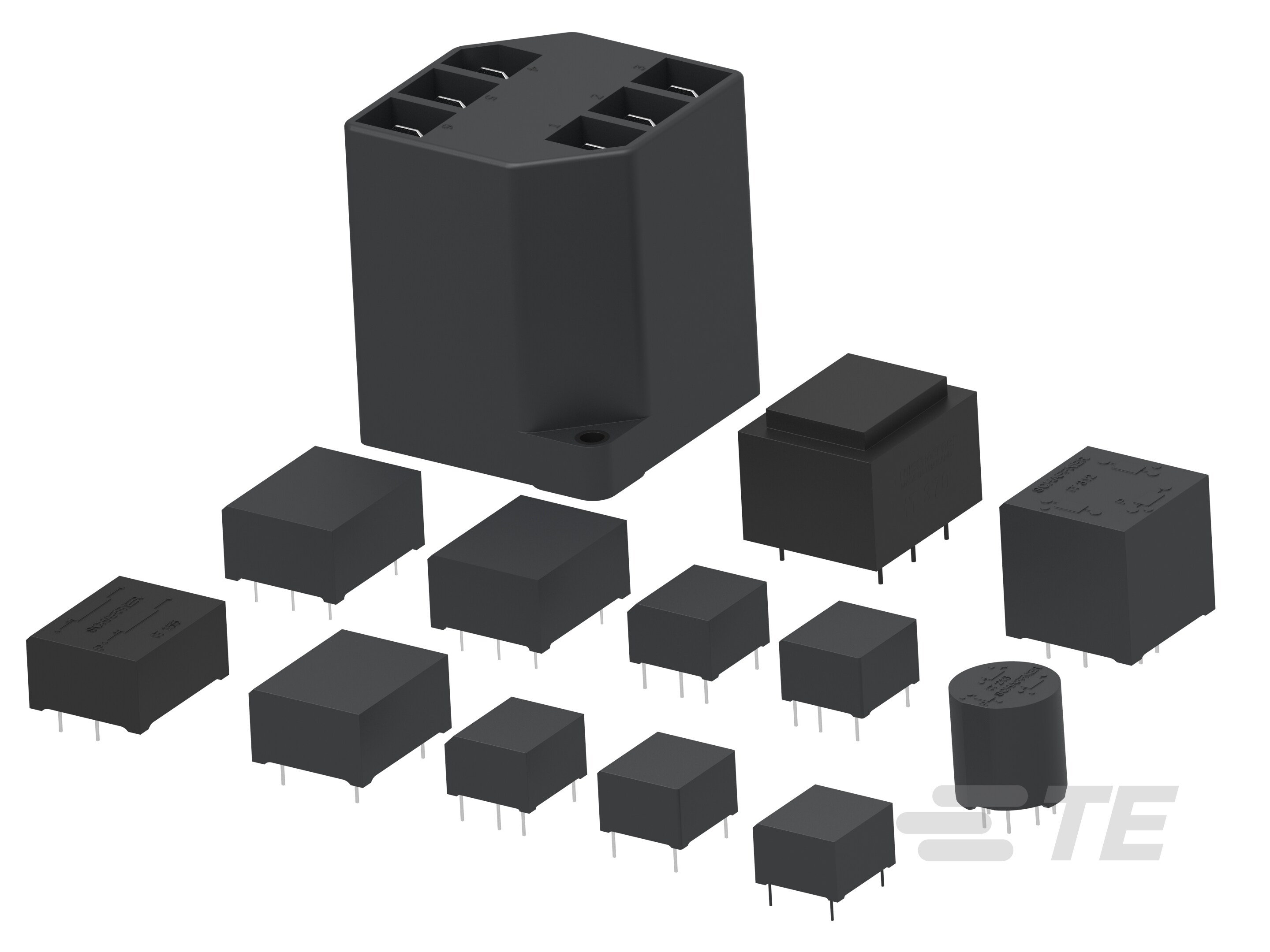

IT Series Pulse Transformers – With Single or Double Secondary Winding

IT Series Pulse Transformers – With Single or Double Secondary Winding-CAT-PA5-I
The IT Series Pulse Transformers provide reliable galvanic separation between drive and power circuits and are available with either a single or double secondary winding. The single secondary winding version offers high durability with voltage resistance up to 8 kV, supports ignition currents up to 3 A, and provides a turns ratio of up to 3:1, making it ideal for robust switching applications. The double secondary winding variant offers voltage resistance up to 4 kV, handles ignition currents up to 1 A, and features a turns ratio of up to 3:1:1, making it suitable for dual-output circuit requirements.
More Less

Product Features

  • Current Rating (Max) (A): .03, .1, .25, 1, 3

  • Input Termination Type : PCB Pin

  • Output Termination Type : PCB Terminal

  • UL Flammability Rating : UL 94V-0

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  PCB Pin

  • Output Termination Type  PCB Terminal

Electrical Characteristics

  • Current Rating (Max) (A) .03, .1, .25, 1, 3

Body Features

  • Product Weight (g) 6, 9, 13, 14, 24, 25, 71, 220

  • Product Weight (oz) .21, .31, .45, .49, .84, .88, 2.5, 7.76

Dimensions

  • Product Width (mm) 16.7, 19, 22.5, 25.5, 32.2, 50

  • Product Width (in) .65, .74, .88, 1, 1.26, 1.96

  • Product Length (mm) 17.6, 20, 25.5, 27, 50

  • Product Length (in) .69, .78, 1, 1.06, 1.96

  • Product Height (mm) 11.3, 13.7, 23.7, 25, 60

  • Product Height (in) .44, .53, .93, .98, 2.36

Usage Conditions

  • Operating Temperature Range  -25 – 75 °C [ -13 – 167 °F ]

Industry Standards

  • UL Flammability Rating  UL 94V-0

Reference Number

  • TE Internal Number CAT-PA5-I
