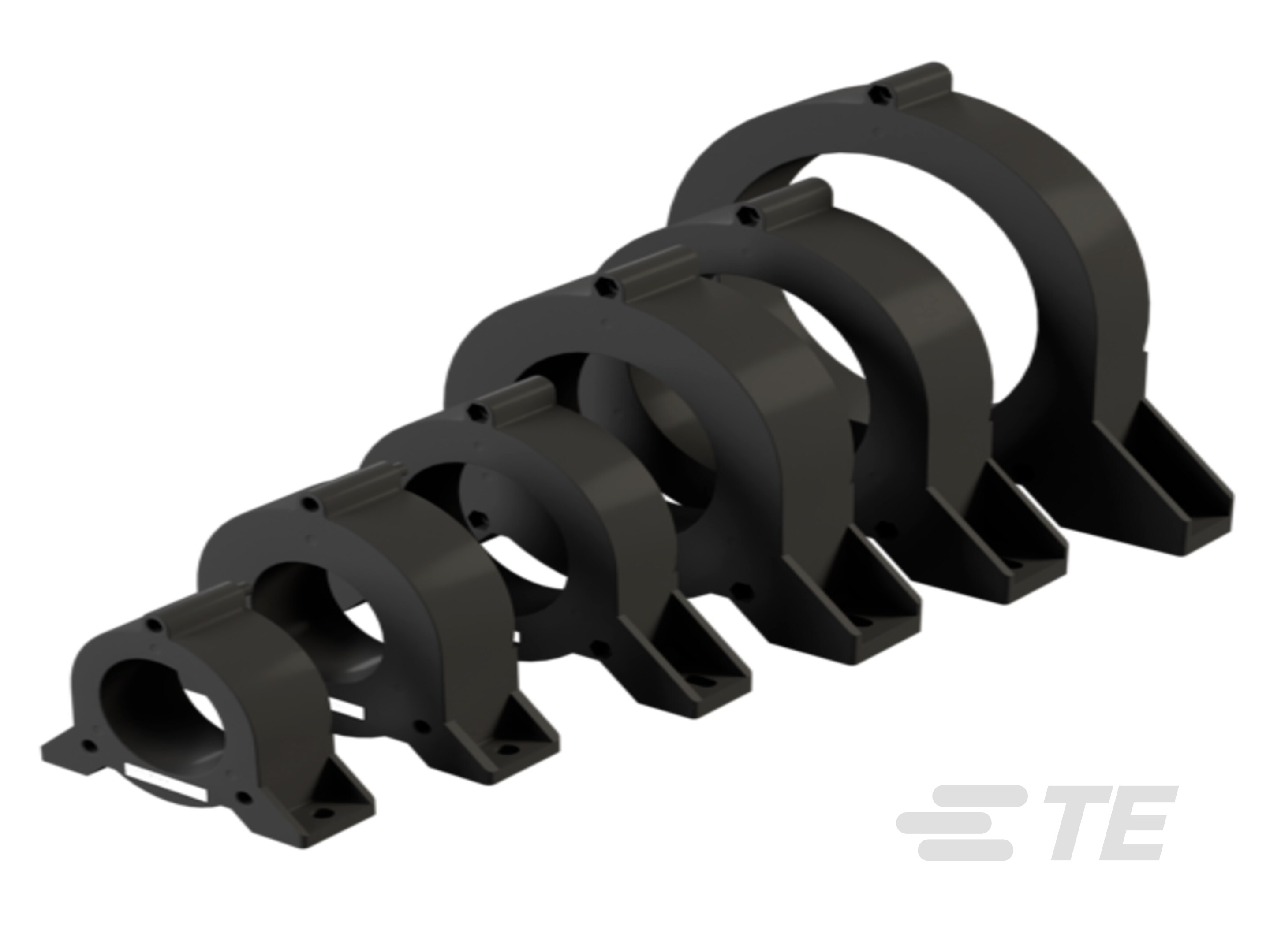

EMC / RFI Chokes RR1000 - Stackable Chokes for Reliable EMI Mitigation

EMC / RFI Chokes RR1000 - Stackable Chokes for Reliable EMI Mitigation-CAT-PA3-RR
The EMC / RFI Chokes RR1000 series is designed for effective common-mode EMI mitigation using advanced nanocrystalline core material. Offering efficient installation with flat or vertical mounting options, these chokes are also stackable for space-saving integration in high-performance electronic systems.
More Less
Connect with Us

Product Features

  • Operating Voltage (Max) (VDC): 760 | 1000

  • Current Rating (Max) (A): 10 | 20 | 30 | 40 | 50 | 60

  • Pollution Degree : PD2

  • IP Rating : IP00

  • Product Orientation : Vertical

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

  • Operating Voltage (Max) (VDC) 760 | 1000

  • Current Rating (Max) (A) 10 | 20 | 30 | 40 | 50 | 60

Body Features

  • Product Weight (g) 220 | 550 | 680 | 1180 | 1200

  • Product Weight (oz) 7.76 | 19.4 | 23.98 | 41.62 | 42.32

  • Product Orientation  Vertical

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width (mm) 30 | 31 | 36

  • Product Width (in) 1.18 | 1.22 | 1.41

  • Product Length (mm) 98 | 115 | 170 | 180 | 200 | 240

  • Product Length (in) 3.85 | 4.52 | 6.69 | 7.08 | 7.87 | 9.44

  • Product Height (mm) 78 | 95 | 122 | 141 | 152 | 182

  • Product Height (in) 3.07 | 3.74 | 4.8 | 5.55 | 5.98 | 7.16

Usage Conditions

  • Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • Certified To  IEC 60938-3

  • Pollution Degree  PD2

  • IP Rating  IP00

Reference Number

  • TE Internal Number CAT-PA3-RR
