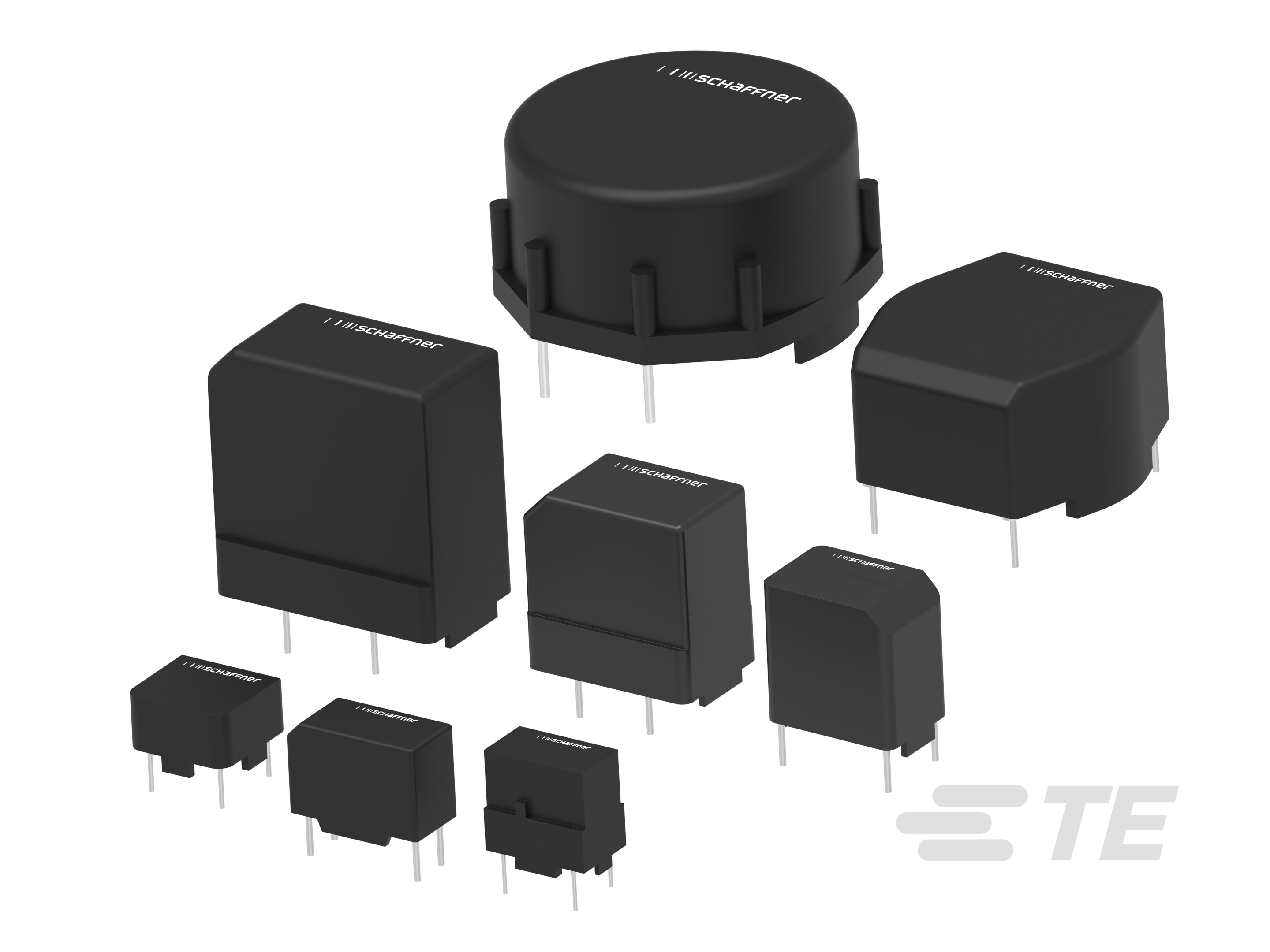

EMC / RFI Chokes RN Series

EMC / RFI Chokes RN Series-CAT-PA3-RN
The EMC / RFI Chokes RN series delivers rated currents from 0.3 to 10 A, with support for frequencies ranging from DC to 400 Hz. Designed for effective common-mode noise suppression, the series offers a resonance frequency range of 100 kHz to 3 MHz. Dual-choke configurations and multiple PCB-mounting options make it a flexible choice for compact electronic designs.
More Less

Product Features

  • Operating Voltage (Max) (VDC): 300

  • Current Rating (Max) (A): .3, .4, .5, .6, .7, .8, .9, 1, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 2, 2.2, 2.5, 2.6, 3, 3.6, 4, 6, 8, 10

  • Input Termination Type : PCB Terminal

  • Output Termination Type : PCB Terminal

  • Pollution Degree : PD2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  PCB Terminal

  • Output Termination Type  PCB Terminal

Electrical Characteristics

  • Overvoltage Category  II

  • Operating Voltage (Max) (VDC) 300

  • Current Rating (Max) (A) .3, .4, .5, .6, .7, .8, .9, 1, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 2, 2.2, 2.5, 2.6, 3, 3.6, 4, 6, 8, 10

Body Features

  • Product Weight (g) 3, 4, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 19, 20, 21, 22, 26, 27, 28, 29, 36, 37, 38, 39, 40, 41, 42, 64, 68, 73, 74, 75

  • Product Weight (oz) .106, .141, .212, .247, .282, .35, .39, .42, .458, .49, .53, .56, .67, .71, .74, .78, .92, .95, .99, 1.02, 1.27, 1.3, 1.34, 1.37, 1.41, 1.45, 1.48, 2.26, 2.39, 2.57, 2.61, 2.64

  • Product Orientation  Vertical, Horizontal

Mechanical Attachment

  • Product Mount Type  Board Mount

Dimensions

  • Product Width (mm) 14, 15.2, 15.5, 17.1, 18, 18.2, 21.5, 23, 27, 31, 32.5, 41.8

  • Product Width (in) .55, .59, .61, .67, .7, .71, .84, .9, 1.06, 1.22, 1.27, 1.64

  • Product Length (mm) 8.8, 9, 12.5, 14, 15.5, 17.7, 17.9, 18, 22.5, 23, 28, 33.1, 43

  • Product Length (in) .34, .35, .49, .55, .61, .69, .7, .88, .9, 1.1, 1.3, 1.69

  • Product Height (mm) 9, 12.6, 13.2, 13.5, 14.3, 16.5, 19.7, 19.8, 20, 25, 29.3, 34.3

  • Product Height (in) .35, .49, .51, .53, .56, .64, .77, .78, .98, 1.15, 1.35

Usage Conditions

  • Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • Certified To  IEC/EN 60938-1, UL 1283

  • Pollution Degree  PD2

  • IP Rating  IP00

  • UL Flammability Rating  UL 94V-0

Reference Number

  • TE Internal Number CAT-PA3-RN
