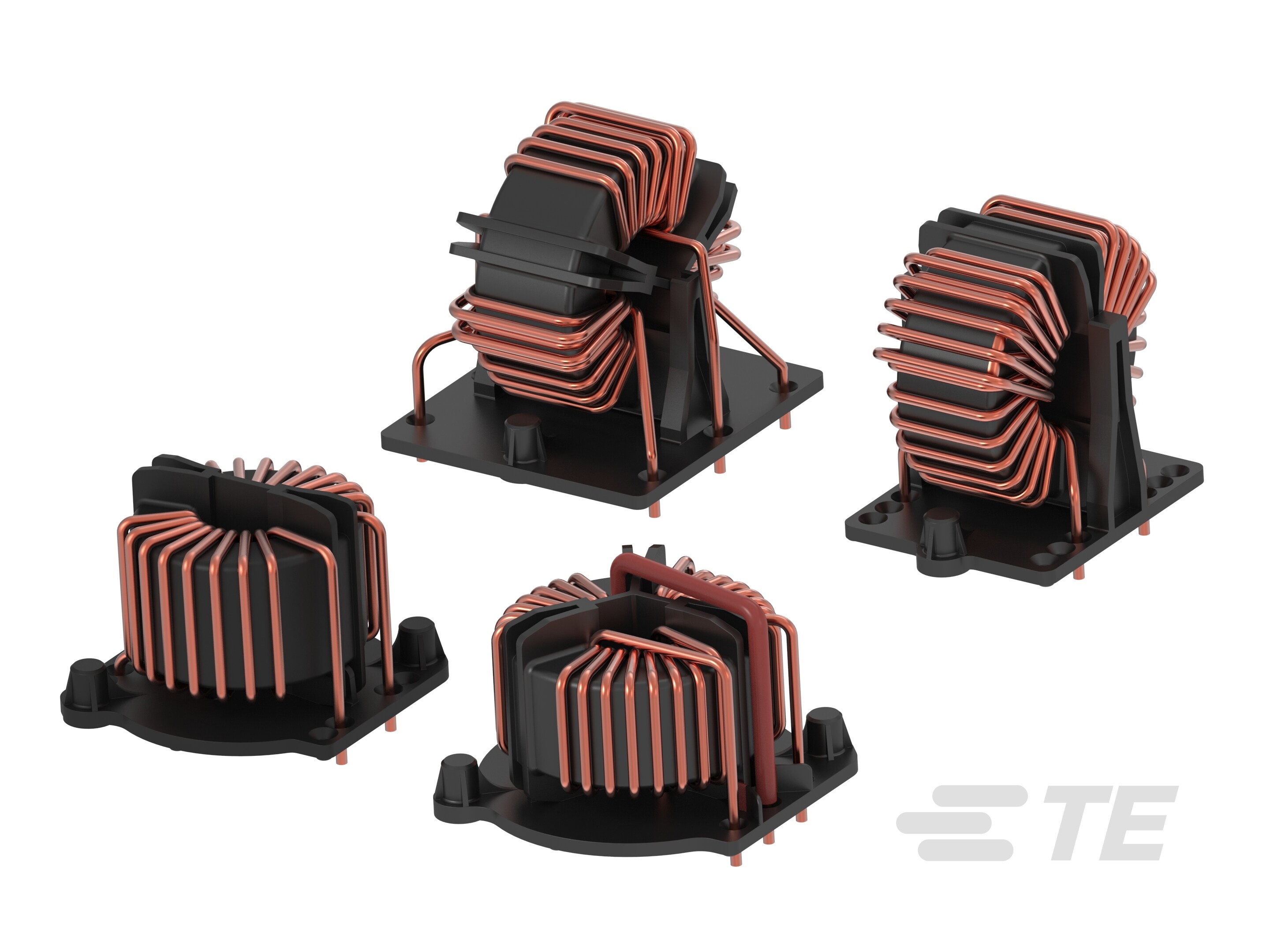

EMC/RFI Chokes RB Series: Current-Compensated Chokes for High-Performance Filtering

EMC/RFI Chokes RB Series: Current-Compensated Chokes for High-Performance Filtering-CAT-PA3-RB
Rated for currents from 16 to 50 A with voltage handling up to 600 VAC or 1000 VDC. Available in 2- and 3-wire configurations with both horizontal and vertical PCB mounting options. Features a rugged design for superior saturation and thermal stability. Open-frame construction supports both forced and natural convection cooling. Simplified pin-out enables easy integration into PCB layouts.
More Less
Connect with Us

Product Features

  • Operating Voltage (Max) (VDC): 600

  • Current Rating (Max) (A): 16 | 25 | 36 | 50

  • Input Termination Type : PCB Terminal

  • Output Termination Type : PCB Terminal

  • Pollution Degree : PD2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  PCB Terminal

  • Output Termination Type  PCB Terminal

Electrical Characteristics

  • Overvoltage Category  II

  • Operating Voltage (Max) (VDC) 600

  • Current Rating (Max) (A) 16 | 25 | 36 | 50

Body Features

  • Product Weight (g) 126 | 130 | 132 | 135 | 165 | 167 | 168 | 172 | 175 | 180 | 268 | 280 | 282 | 430 | 440 | 442 | 478

  • Product Weight (oz) 4.44 | 4.58 | 4.65 | 4.76 | 5.82 | 5.89 | 5.92 | 6.06 | 6.17 | 6.34 | 9.45 | 9.87 | 9.94 | 15.16 | 15.52 | 15.59 | 16.86

  • Product Orientation  Vertical | Horizontal

Mechanical Attachment

  • Product Mount Type  Board Mount

Dimensions

  • Product Width (mm) 43.4 | 45.9 | 46.9 | 50.5 | 51 | 51.3 | 55 | 57.8 | 58 | 63 | 66.9

  • Product Width (in) 1.7 | 1.8 | 1.84 | 1.98 | 2 | 2.01 | 2.16 | 2.27 | 2.28 | 2.48 | 2.63

  • Product Length (mm) 48.4 | 53.3 | 53.4 | 57.4 | 58 | 58.8 | 61 | 62 | 63 | 63.4 | 67.9

  • Product Length (in) 1.9 | 2.09 | 2.1 | 2.25 | 2.28 | 2.31 | 2.4 | 2.44 | 2.48 | 2.49 | 2.67

  • Product Height (mm) 38 | 41.5 | 48 | 52 | 58 | 68 | 70 | 80 | 82

  • Product Height (in) 1.49 | 1.63 | 1.88 | 2.04 | 2.28 | 2.67 | 2.75 | 3.14 | 3.22

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • Pollution Degree  PD2

  • IP Rating  IP00

  • UL Flammability Rating  UL 94V-0

Reference Number

  • TE Internal Number CAT-PA3-RB
