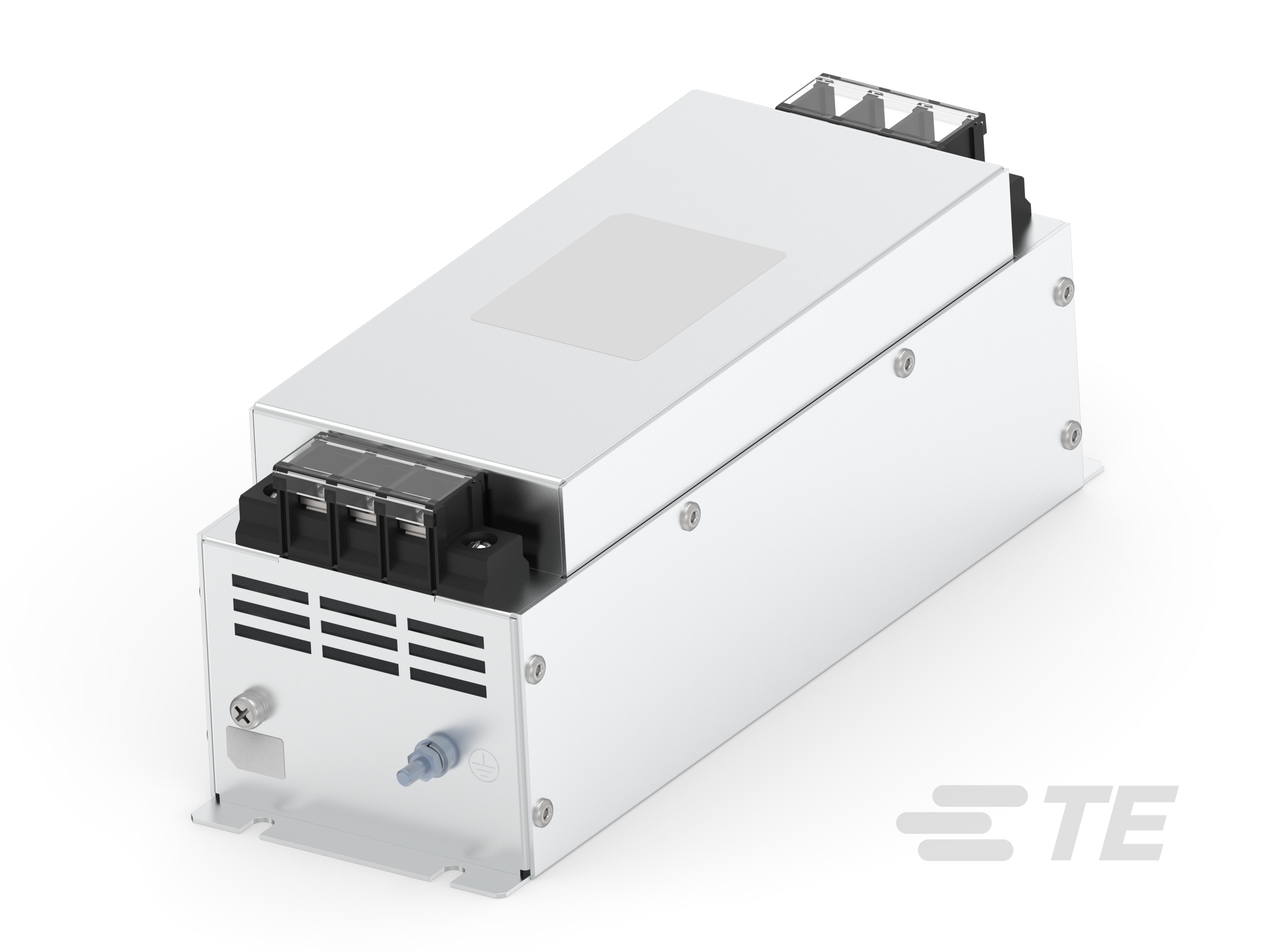

3-Phase Filters, FN3060 High-Performance Ultra-Low Leakage Current EMC/RFI Filter for Inverters and Drive Systems

3-Phase Filters, FN3060 High-Performance Ultra-Low Leakage Current EMC/RFI Filter for Inverters and Drive Systems-CAT-P99-FN3060
The Schaffner FN3060 3-Phase filter series are engineered for Semiconductor Manufactured Equipment, Motion & Drives, Robotics & Warehouse Automation, and Industrial Machinery. Designed for 480VAC nominal operation, they support current ratings from 20A to 250A and compliance to IEC and UL standards. Achieve the switching of Y-Capacitor/resistor value using Detachable Earth (DE) terminal. Designed for corner grounded delta networks (e.g. Japanese electric networks) and IT networks. Very low leakage current values make the filters suitable for grids with very tough requirements or sensitive CFCIs, and for application which set value on safety and reliability.
More Less
Connect with Us

Product Features

  • Current Rating (A): 20 | 30 | 50 | 80 | 100 | 150 | 200 | 250

  • Input Termination Type : Terminal Block

  • Output Termination Type : Terminal Block

  • Wiring Configuration : Three Phase 3 Wire

  • Operating Voltage (VAC): 300 | 520

Available from

LADD Inc
Overview

Benefits

  • Helps customer equipment to comply to EMC standards
  • Compatible with ring terminal (Demand in the Japanese market)
  • Compatible with corner grounded delta networks (e.g. Japanese electric networks) and IT networks

Features

  • Compact and effective EMI mitigation
  • Terminal block compatible with ring terminal
  • Achieve the switching of Y-Capacitor and resister value using DE

Applications

  • Semiconductor manufacturing equipment
  • Motion & drives
  • Robot
  • Machine tool
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Filtered

  • Input Termination Type  Terminal Block

  • Output Termination Type  Terminal Block

Configuration Features

  • Wiring Configuration  Three Phase 3 Wire

Electrical Characteristics

  • Overvoltage Category  III

  • Current Rating (A) 20 | 30 | 50 | 80 | 100 | 150 | 200 | 250

  • Operating Voltage (VAC) 300 | 520

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Usage Conditions

  • Operating Temperature Range (°C) -25 – 100

Operation/Application

  • Cooling Method  Natural Convection

  • Operating Altitude (Max) (m) 2000

  • Operating Frequency of Application  50 | 60

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Pollution Degree  PD2

  • Certified To  UL/IEC 60939-3 | UL 60939-3
